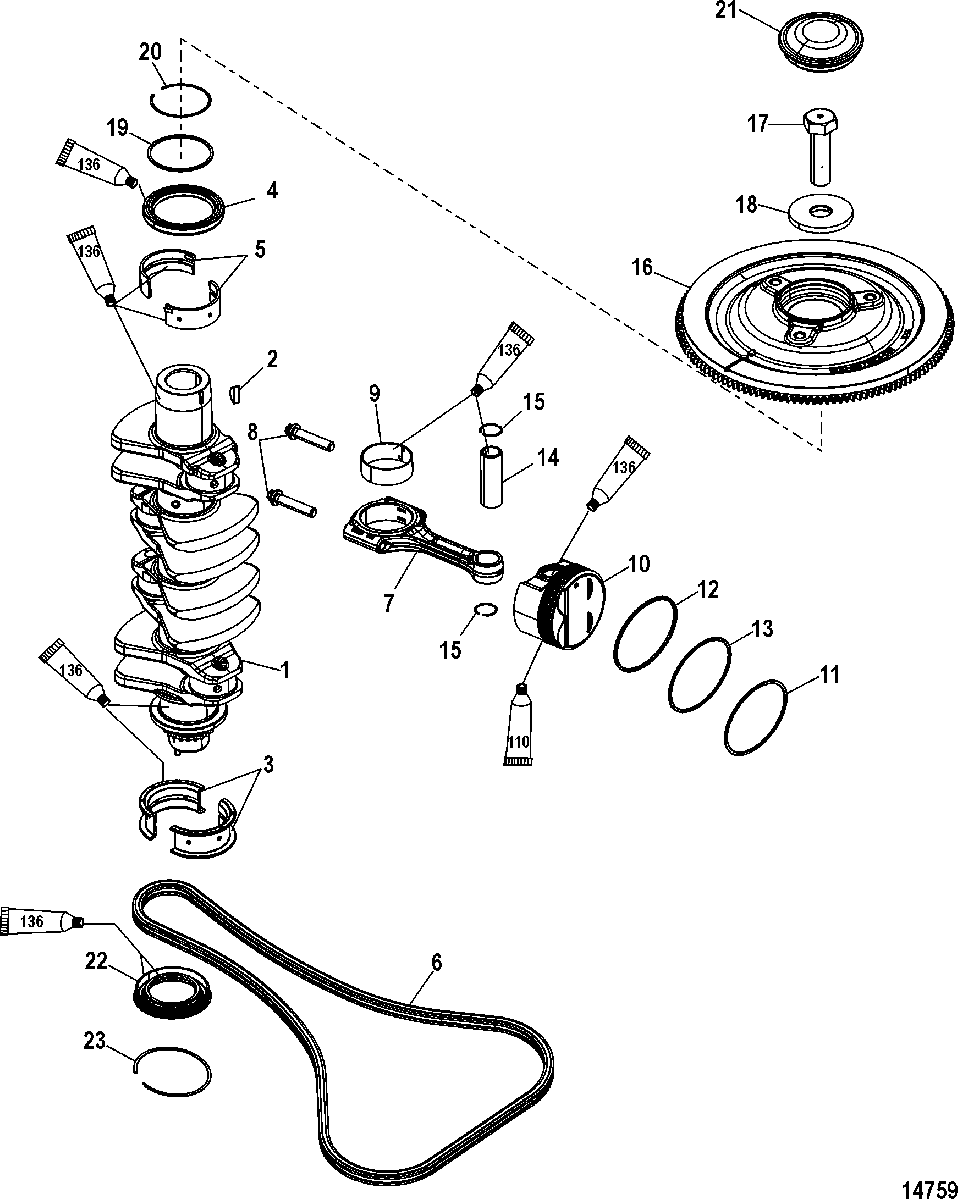

Crankshaft, Pistons and Connecting Rods для Mariner - 115 EFI (4-STROKE) 1B366823 THRU 2B094995

  • №
    Артикул
    Название
  • 1
    400-8M0110022 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    25-889993001 O-ring
    O-ring
  • 3
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 4
    23-8M0117003 BEARING, Thrust - Green, Crankshaft-Lower
    BEARING, Thrust - Green, Crankshaft-Lower
  • 4
    23-8M0117001 BEARING, Thrust - Navy Blue, Crankshaft-Lower
    BEARING, Thrust - Navy Blue, Crankshaft-Lower
  • 4
    23-8M0117002 BEARING, Thrust - White, Crankshaft-Lower
    BEARING, Thrust - White, Crankshaft-Lower
  • 4
    23-8M0117004 BEARING, Thrust - Orange, Crankshaft-Lower
    BEARING, Thrust - Orange, Crankshaft-Lower
  • 5
    26-8M0032912 SEAL, Top Main Bearing
    SEAL, Top Main Bearing
  • 6
    23-897498T01 BEARING, Main - Green, Crankshaft-Upper
    BEARING, Main - Green, Crankshaft-Upper
  • 6
    23-897498T02 BEARING, Main - Navy Blue, Crankshaft-Upper
    BEARING, Main - Navy Blue, Crankshaft-Upper
  • 6
    23-897498T03 BEARING, Main - White, Crankshaft-Upper
    BEARING, Main - White, Crankshaft-Upper
  • 6
    23-897498T04 BEARING, Main - Orange, Crankshaft-Upper
    BEARING, Main - Orange, Crankshaft-Upper
  • 7
    8M0103398 CHAIN, Roller Cam Drive
    CHAIN, Roller Cam Drive
  • 8
    662-8M0103285 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 9
    10-884441 BOLT
    BOLT
  • 10
    23-892005A01 BEARING, Connecting Rod - Blue
    BEARING, Connecting Rod - Blue
  • 10
    23-892005A02 BEARING, Connecting Rod - White
    BEARING, Connecting Rod - White
  • 10
    23-892005A03 BEARING, Connecting Rod - Orange
    BEARING, Connecting Rod - Orange
  • 11
    700-898472T01 PISTON ASSEMBLY, (Standard)
    PISTON ASSEMBLY, (Standard)
  • 12
    39-881180A02 RING SET, Piston (Standard)
    RING SET, Piston (Standard)
  • 13
    NSS NOT SOLD SEPARATE, Oil Ring
    NOT SOLD SEPARATE, Oil Ring
  • 14
    NSS NOT SOLD SEPARATE, Piston Ring-Second
    NOT SOLD SEPARATE, Piston Ring-Second
  • 15
    NSS NOT SOLD SEPARATE, Piston Pin
    NOT SOLD SEPARATE, Piston Pin
  • 16
    40-881184 CIRCLIP
    CIRCLIP
  • 17
    200-897522T04 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 18
    10-880515 BOLT, (M20 x 68 MM)
    BOLT, (M20 x 68 MM)
  • 19
    12-8M0090010 WASHER, 66 X 21 X 6.35 MM
    WASHER, 66 X 21 X 6.35 MM
  • 20
    23-896883 SPACER
    SPACER
  • 21
    53-896882 RING, Retaining
    RING, Retaining
  • 22
    19-885348 CAP
    CAP
  • 23
    26-897540 SEAL, Oil
    SEAL, Oil
  • 24
    53-897785 RING, Retaining
    RING, Retaining
  • -
    27-897534A07 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    8M8033014 LONG BLOCK ASSEMBLY, 75/80/90/100
    LONG BLOCK ASSEMBLY, 75/80/90/100
  • -
    8M8033013 LONG BLOCK ASSEMBLY, 115
    LONG BLOCK ASSEMBLY, 115
