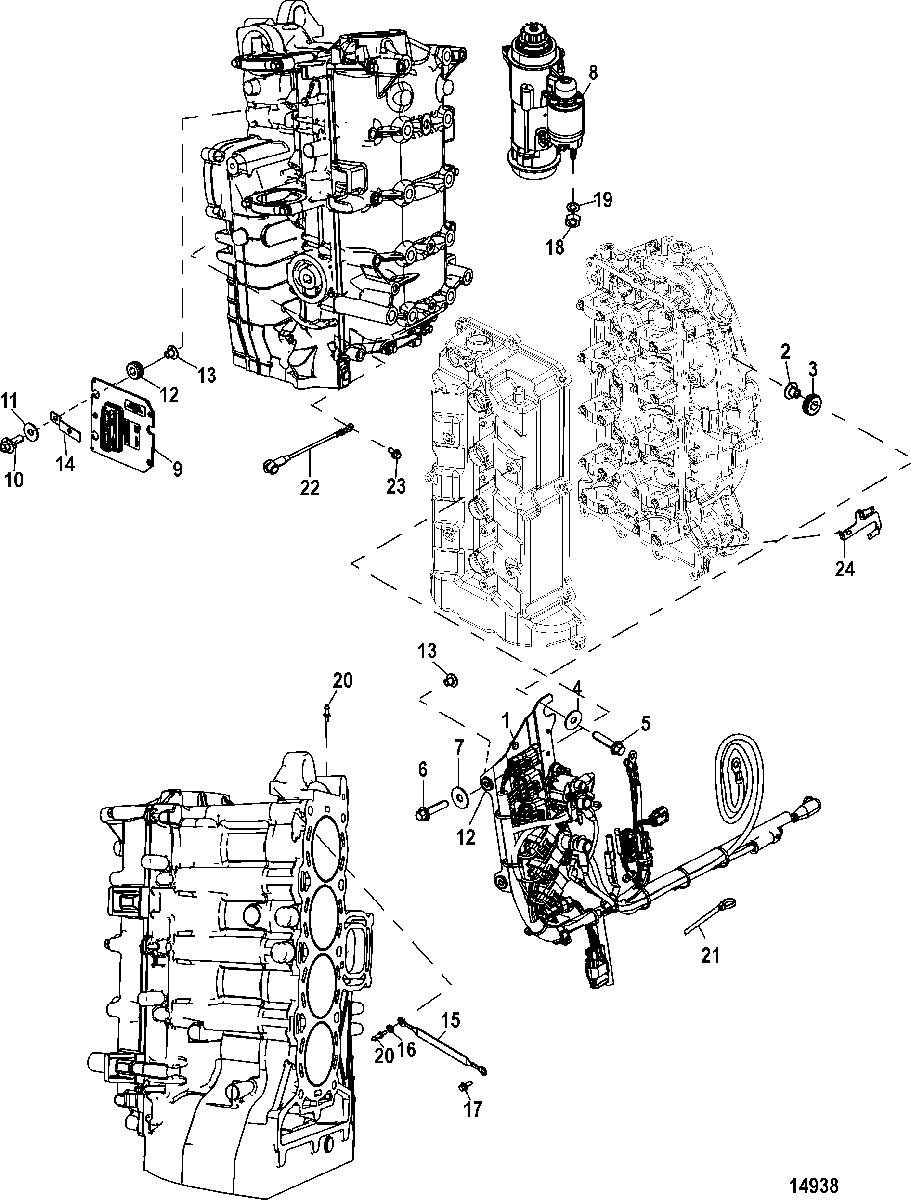

Electrical Components для Mariner - 115 EFI (4-STROKE) 1B366823 THRU 2B094995

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE, Electricl Plate Assembly-Complete
    NOT SOLD SEPARATE, Electricl Plate Assembly-Complete
  • 2
    23-8502341 BUSHING
    BUSHING
  • 3
    25-833155 GROMMET
    GROMMET
  • 4
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 5
    10-8M0103814 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 6
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 7
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 8
    50-879150A85 STARTER MOTOR ASSEMBLY
    SN# 1B580803 & Below
    STARTER MOTOR ASSEMBLY
    SN# 1B580803 & Below
  • 8
    50-879150A85 STARTER MOTOR ASSEMBLY, Complete
    SN# 1B580804 THRU 1B759587
    STARTER MOTOR ASSEMBLY, Complete
    SN# 1B580804 THRU 1B759587
  • 8
    50-879345T77 STARTER MOTOR ASSEMBLY, Complete
    SN# 1B759588 & Up
    STARTER MOTOR ASSEMBLY, Complete
    SN# 1B759588 & Up
  • 9
    8M0083202 ECM, Engine Control Module - 75
    SN# USA-1B423432/BEL-0P472362 & Below
    ECM, Engine Control Module - 75
    SN# USA-1B423432/BEL-0P472362 & Below
  • 9
    8M0083202 ECM, Engine Control Module - 75
    SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763
    ECM, Engine Control Module - 75
    SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763
  • 9
    8M0083208 ECM, Engine Control Module - 75
    SN# USA-1B501342/BEL-0P519764 & Up
    ECM, Engine Control Module - 75
    SN# USA-1B501342/BEL-0P519764 & Up
  • 9
    8M0083203 ECM, Engine Control Module - 80
    SN# USA-1B423432/BEL-0P472362 & Below
    ECM, Engine Control Module - 80
    SN# USA-1B423432/BEL-0P472362 & Below
  • 9
    8M0083203 ECM, Engine Control Module - 80
    SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763
    ECM, Engine Control Module - 80
    SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763
  • 9
    8M0083211 ECM, Engine Control Module - 80 EU
    SN# USA-1B501342/BEL-0P519764 & Up
    ECM, Engine Control Module - 80 EU
    SN# USA-1B501342/BEL-0P519764 & Up
  • 9
    8M0083204 ECM, Engine Control Module - 90
    SN# USA-1B423432/BEL-0P472362 & Below
    ECM, Engine Control Module - 90
    SN# USA-1B423432/BEL-0P472362 & Below
  • 9
    8M0083204 ECM, Engine Control Module - 90
    SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763
    ECM, Engine Control Module - 90
    SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763
  • 9
    8M0083209 ECM, Engine Control Module - 90
    SN# USA-1B501342/BEL-0P519764 & Up
    ECM, Engine Control Module - 90
    SN# USA-1B501342/BEL-0P519764 & Up
  • 9
    8M0083205 ECM, Engine Control Module - 100
    SN# USA-1B423432/BEL-0P472362 & Below
    ECM, Engine Control Module - 100
    SN# USA-1B423432/BEL-0P472362 & Below
  • 9
    8M0083205 ECM, Engine Control Module - 100
    SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763
    ECM, Engine Control Module - 100
    SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763
  • 9
    8M0083212 ECM, Engine Control Module - 100 EU
    SN# USA-1B501342/BEL-0P519764 & Up
    ECM, Engine Control Module - 100 EU
    SN# USA-1B501342/BEL-0P519764 & Up
  • 9
    8M0083206 ECM, Engine Control Module - 115
    SN# USA-1B423432/BEL-0P472362 & Below
    ECM, Engine Control Module - 115
    SN# USA-1B423432/BEL-0P472362 & Below
  • 9
    8M0083206 ECM, Engine Control Module - 115
    SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763
    ECM, Engine Control Module - 115
    SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763
  • 9
    8M0083210 ECM, Engine Control Module - 115
    SN# USA-1B501342/BEL-0P519764 & Up
    ECM, Engine Control Module - 115
    SN# USA-1B501342/BEL-0P519764 & Up
  • 9
    8M0083207 ECM, Engine Control Module - 115 EU
    SN# USA-1B423432/BEL-0P472362 & Below
    ECM, Engine Control Module - 115 EU
    SN# USA-1B423432/BEL-0P472362 & Below
  • 9
    8M0083207 ECM, Engine Control Module - 115 EU
    SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763
    ECM, Engine Control Module - 115 EU
    SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763
  • 9
    8M0083213 ECM, Engine Control Module - 115 EU
    SN# USA-1B501342/BEL-0P519764 & Up
    ECM, Engine Control Module - 115 EU
    SN# USA-1B501342/BEL-0P519764 & Up
  • 10
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 11
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 12
    25-834985 GROMMET
    GROMMET
  • 13
    23-856954 BUSHING
    BUSHING
  • 14
    858953 BRACKET
    BRACKET
  • 15
    84-858414A04 CABLE ASSEMBLY, Brass
    CABLE ASSEMBLY, Brass
  • 16
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 17
    10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel
    SCREW, (M6 x 16 MM) Stainless Steel
  • 18
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 19
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 20
    17-897757 PIN
    PIN
  • 21
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 22
    84-88439A26 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 23
    10-88552612 SCREW, (M8 x 12)
    SCREW, (M8 x 12)
  • 24
    54-891520001 CLIP
    CLIP
  • -
    8M8033014 LONG BLOCK ASSEMBLY, 75/80/90/100
    LONG BLOCK ASSEMBLY, 75/80/90/100
  • -
    8M8033013 LONG BLOCK ASSEMBLY, 115
    LONG BLOCK ASSEMBLY, 115
