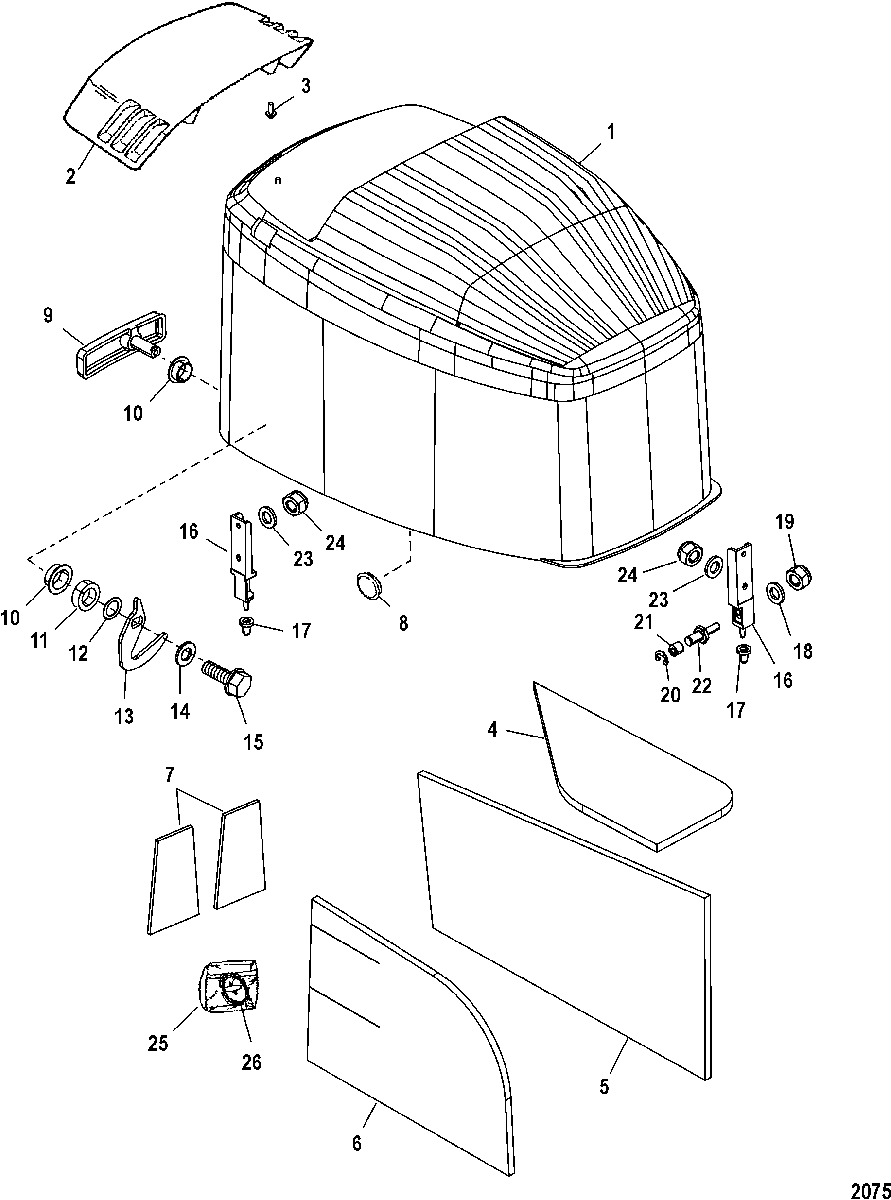

Top Cowl для Mariner - 115 EFI (4-STROKE) 1B227000 THRU 1B366822

№

Артикул

Название
1

4021-827328T9 TOP COWL ASSEMBLY
(Black)

TOP COWL ASSEMBLY
(Black)
1

4021-827328T10 TOP COWL ASSEMBLY
(Silver)

TOP COWL ASSEMBLY
(Silver)
2

821256T03 INLET, Air
(Black)

INLET, Air
(Black)
2

821256T2 INLET, Air - Silver
(Silver)

INLET, Air - Silver
(Silver)
3

10-82130016 SCREW, (M6 x 16)

SCREW, (M6 x 16)
4

859356A02 SOUND BLANKET KIT

SOUND BLANKET KIT
5

NSS NOT SOLD SEPARATE, Sound Blanket-Port

NOT SOLD SEPARATE, Sound Blanket-Port
6

NSS NOT SOLD SEPARATE, Sound Blanket-Starboard

NOT SOLD SEPARATE, Sound Blanket-Starboard
7

NSS NOT SOLD SEPARATE, Sound Blanket-Back

NOT SOLD SEPARATE, Sound Blanket-Back
8

19-823865 CAP PLUG

CAP PLUG
9

831207A16 HANDLE

HANDLE
10

23-812707 BUSHING

BUSHING
11

23-831214 SPACER

SPACER
12

13-12134 WASHER, Wave

WASHER, Wave
13

8M0001081 CAM

CAM
14

12-4002316 WASHER

WASHER
15

10-1993716 SCREW, (M6 x 16)

SCREW, (M6 x 16)
16

8M0036792 BRACKET, Front

BRACKET, Front
17

815477 BUMPER, Latch

BUMPER, Latch
18

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel

WASHER, (.281 x .500 x .060) Stainless Steel
19

11-401366 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel
20

53-8237951 RING, Retaining

RING, Retaining
21

815263 ROLLER

ROLLER
22

8155381 PIN, Roll

PIN, Roll
23

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel

WASHER, (.281 x .500 x .060) Stainless Steel
24

11-401366 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel
25

47341A11 ROPE AND HANDLE KIT, Manual Starting

ROPE AND HANDLE KIT, Manual Starting
26

50-12066Q10 ROPE
(Quicksilver)

ROPE
(Quicksilver)
26

50-12066K10 ROPE, Starter
(Mercury)

ROPE, Starter
(Mercury)
-

37-8M0114993 DECAL SET (Mercury)

DECAL SET (Mercury)
-

37-881650A03 DECAL SET (Mariner)

DECAL SET (Mariner)
