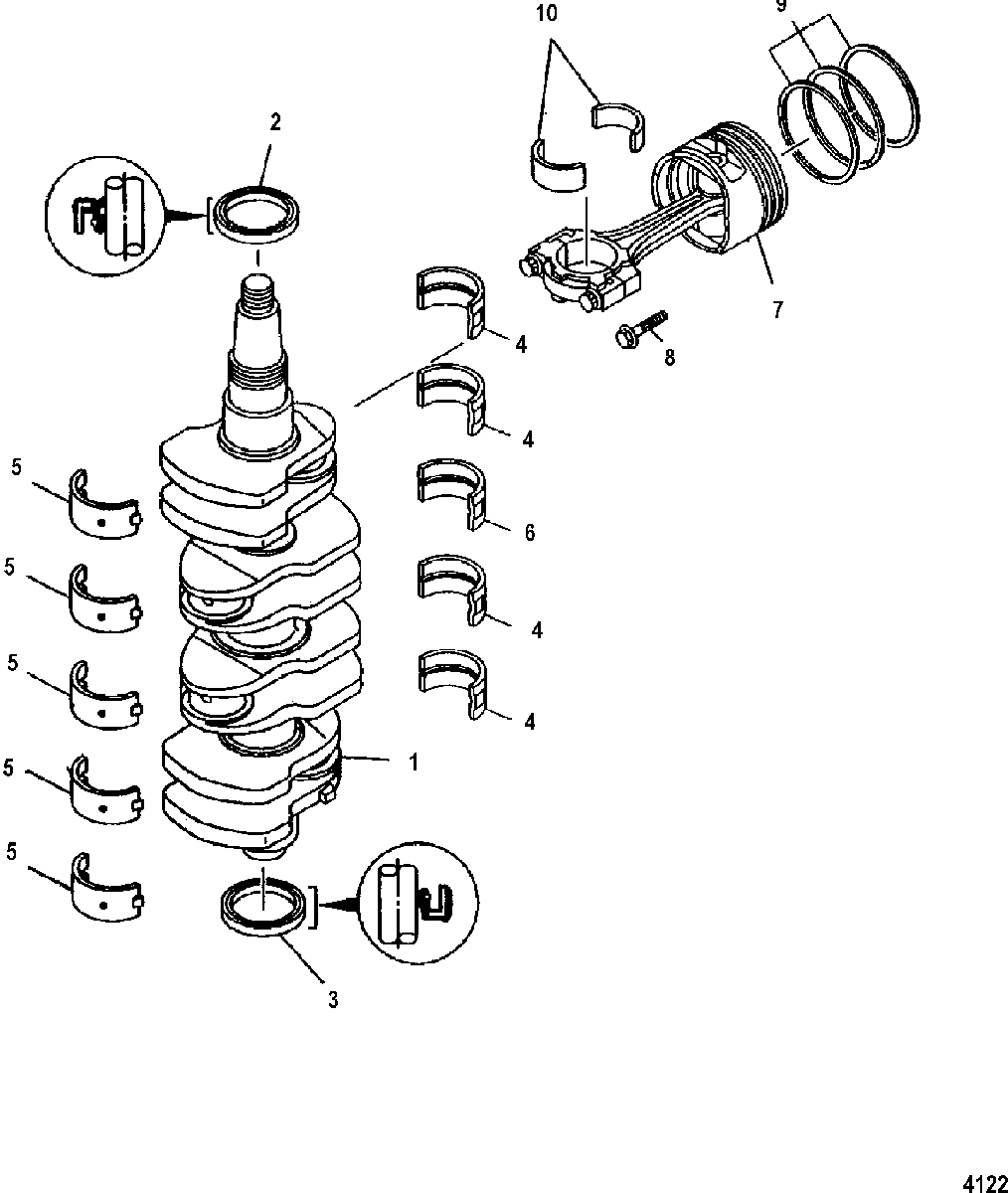

Crankshaft, Pistons and Connecting Rods для Mariner - 115 EFI (4-STROKE) 1B227000 THRU 1B366822
-
№АртикулНазвание
-
12406-880894T CRANKSHAFTCRANKSHAFT
-
226-8040992 SEAL, OilSEAL, Oil
-
326-8041002 SEAL, OilSEAL, Oil
-
431-804101T BEARING
(Green)BEARING
(Green) -
431-804101T10 BEARING
(Blue)BEARING
(Blue) -
431-804101T20 BEARING
(Red)BEARING
(Red) -
531-804102T BEARING
(Yellow)BEARING
(Yellow) -
531-804102T10 BEARING
(Green)BEARING
(Green) -
531-804102T20 BEARING
(Blue)BEARING
(Blue) -
531-804102T30 BEARING
(Red)BEARING
(Red) -
631-804103T BEARING
(Green)BEARING
(Green) -
631-804103T10 BEARING
(Blue)BEARING
(Blue) -
631-804103T20 BEARING
(Red)BEARING
(Red) -
72715-880895A14 PISTON ASSEMBLY
(Standard)PISTON ASSEMBLY
(Standard) -
72715-880895A16 PISTON ASSEMBLY
(.25mm Oversize)PISTON ASSEMBLY
(.25mm Oversize) -
810-880896 BOLT, (M8 x 38)BOLT, (M8 x 38)
-
939-880897T02 RING SET, Piston
(Standard)RING SET, Piston
(Standard) -
939-880898T02 RING SET, Piston
(.25mm Oversize)RING SET, Piston
(.25mm Oversize) -
1031-880899T BEARING
(Yellow)BEARING
(Yellow) -
1031-880899T10 BEARING
(Green)BEARING
(Green) -
1031-880899T20 BEARING
(Blue)BEARING
(Blue) -
1031-880899T30 BEARING
(Red)BEARING
(Red) -
-27-858732A06 GASKET SETGASKET SET
-
-881421T04 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
