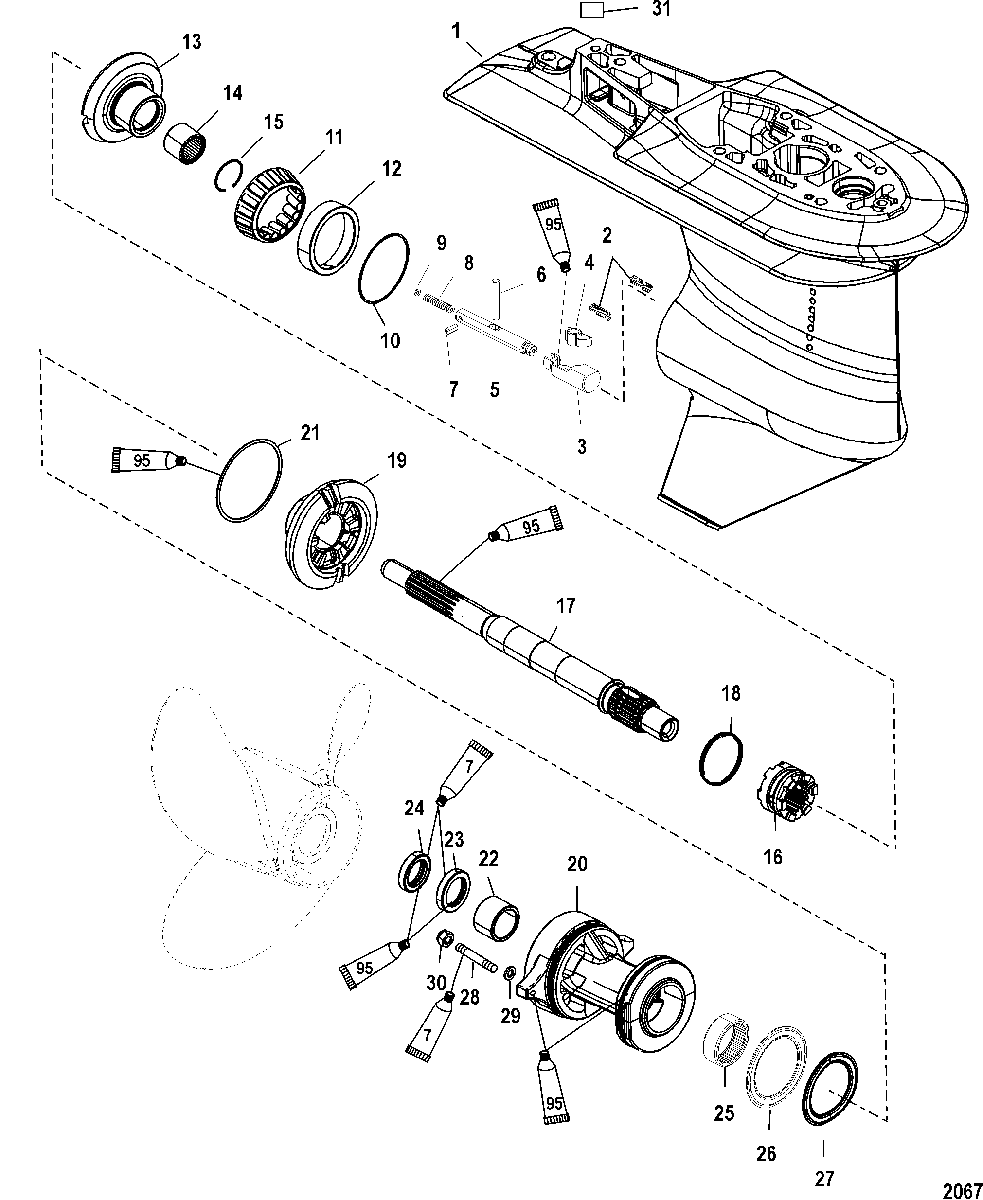

Gear Housing, Propeller Shaft - 2.07:1 Gear Ratio для Mariner - 115 EFI (4-STROKE) 1B227000 THRU 1B366822

№

Артикул

Название
-

1600-888845T01 GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
(Long)

GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
(Long)

308 720 ₽
-

1600-888845T02 GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
(X-Long)

GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
(X-Long)

308 800 ₽
1

1600-888845T GEAR HOUSING ASSEMBLY, Basic

GEAR HOUSING ASSEMBLY, Basic

199 280 ₽
2

8227731 INSERT, Threaded

INSERT, Threaded

330 ₽
3

888807 FOLLOWER ASSEMBLY, Cam

FOLLOWER ASSEMBLY, Cam

4 900 ₽
4

8M4504018 CAM, Shift

CAM, Shift

2 500 ₽
5

888806 ROD, Clutch Actuator

ROD, Clutch Actuator

7 250 ₽
6

17-8M0084243 PIN, Cross

PIN, Cross

520 ₽
7

17-8M0084245 PIN, Spring Locator

PIN, Spring Locator

270 ₽
8

24-79910 SPRING

SPRING

600 ₽
9

12-78910 WASHER

WASHER

150 ₽
10

15-8M0063266 SHIM SET

SHIM SET

4 440 ₽
11

31-30894A1 BEARING SET, Cup And Cone

BEARING SET, Cup And Cone

8 380 ₽
12

NSS NOT SOLD SEPARATE, Cup

NOT SOLD SEPARATE, Cup

0 ₽
13

43-881260A3 GEAR, Forward - 29 Teeth

GEAR, Forward - 29 Teeth

70 940 ₽
14

31-30895T BEARING, Needle

BEARING, Needle

1 550 ₽
15

53-856823 RING, Retaining

RING, Retaining

810 ₽
16

52-888805T CLUTCH

CLUTCH

31 170 ₽
17

44-8M0140444 PROPELLER SHAFT

PROPELLER SHAFT

88 270 ₽
18

24-30893 SPRING

SPRING

220 ₽
19

43-889991T GEAR, Reverse (29 Teeth)

GEAR, Reverse (29 Teeth)

33 340 ₽
20

12596T2 CARRIER ASSEMBLY, Bearing

CARRIER ASSEMBLY, Bearing

13 710 ₽
21

25-861844 O-RING, (3.609 x .139)

O-RING, (3.609 x .139)

1 000 ₽
22

31-30956T BEARING, Needle

BEARING, Needle

1 350 ₽
23

26-70080 SEAL, Oil (Inner)

SEAL, Oil (Inner)

550 ₽
24

26-70081 SEAL, Oil (Outer)

SEAL, Oil (Outer)

1 980 ₽
25

31-12578T BEARING, Roller

BEARING, Roller

1 630 ₽
26

12-12577 THRUST WASHER

THRUST WASHER

1 100 ₽
27

31-12576 BEARING, Thrust

BEARING, Thrust

1 290 ₽
28

16-8M0034456 STUD, (M8 x 48)

STUD, (M8 x 48)

460 ₽
29

12-855941 WASHER, (.323 x .590 x .112) Stainless Steel

WASHER, (.323 x .590 x .112) Stainless Steel

110 ₽
30

11-401378 NUT, (M8)

NUT, (M8)

690 ₽
31

NSS NOT SOLD SEPARATE, Decal-Gear Housing Pinion Identification

NOT SOLD SEPARATE, Decal-Gear Housing Pinion Identification

0 ₽
-

NS NOT SHOWN, See Accessory Guide-Propellers-For Appropriate Hardware. (Thrust Washers/Nuts)

NOT SHOWN, See Accessory Guide-Propellers-For Appropriate Hardware. (Thrust Washers/Nuts)

0 ₽
-

26-43035A4 SEAL KIT, Gear Housing

SEAL KIT, Gear Housing

6 250 ₽
-

31-803496T2 BEARING/SEAL KIT
(Without Forward Bearing)

BEARING/SEAL KIT
(Without Forward Bearing)

20 420 ₽
-

52-888805A00 REPAIR KIT, Clutch And Cam Follower

REPAIR KIT, Clutch And Cam Follower

25 060 ₽
