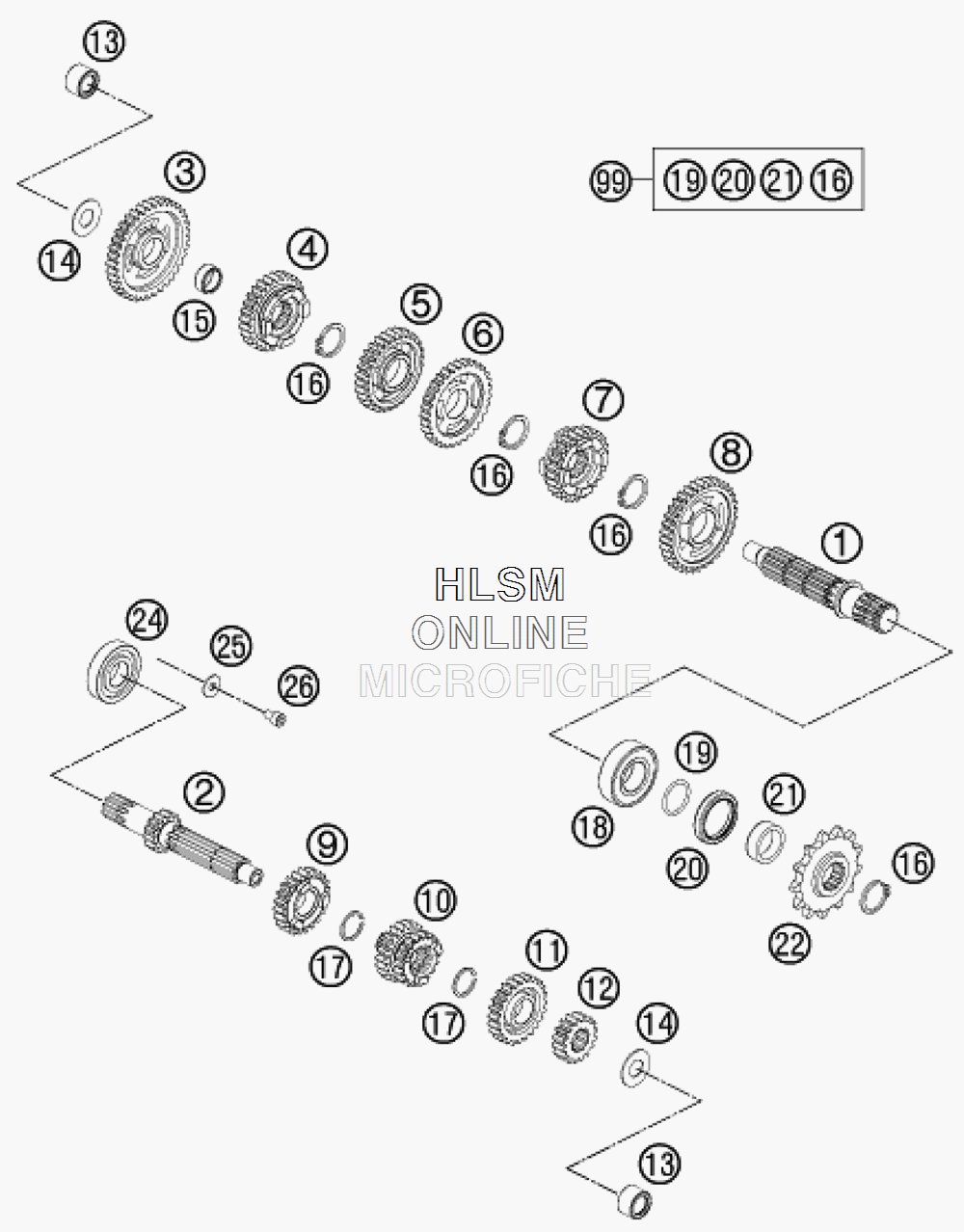

TRANSMISSION для Ktm 65 SX MINI - 2019 года выпуска`

№

Артикул

Название
1

46233010000 COUNTERSHAFT

COUNTERSHAFT

22 110 ₽
2

46233001000 MAIN SHAFT 13-T

MAIN SHAFT 13-T

25 970 ₽
3

46233011000 IDLER GEAR 1.G.

IDLER GEAR 1.G.

17 440 ₽
4

46233015000 SLIDING GEAR 5.G.

SLIDING GEAR 5.G.

15 600 ₽
5

46233014000 IDLER GEAR 4.G

IDLER GEAR 4.G

15 570 ₽
6

46233013100 IDLER GEAR 3.G

IDLER GEAR 3.G

18 930 ₽
7

46233016000 SLIDING GEAR 6.G.

SLIDING GEAR 6.G.

18 220 ₽
8

46233012000 IDLER GEAR 2.G

IDLER GEAR 2.G

18 870 ₽
9

46233005000 IDLER GEAR 5.G.

IDLER GEAR 5.G.

11 950 ₽
10

46233003000 SLIDING GEAR 3/4. G

SLIDING GEAR 3/4. G

23 600 ₽
11

46233006000 IDLER GEAR 6.G.

IDLER GEAR 6.G.

12 590 ₽
12

46233002000 SOLID GEAR 2.G

SOLID GEAR 2.G

7 130 ₽
13

0618121912 NEEDLE BUSH NK1212

NEEDLE BUSH NK1212

5 430 ₽
14

49033013000 STOP DISK 12,1X25X1

STOP DISK 12,1X25X1

930 ₽
15

46033020000 NEEDLE BEARING 14X18X8

NEEDLE BEARING 14X18X8

4 940 ₽
16

49033091000 CIRCLIP AS20X1,75

CIRCLIP AS20X1,75

910 ₽
17

46233022000 LOCK RING

LOCK RING

240 ₽
18

46033028000 GROOVED BALL BEARING 20X42X12

GROOVED BALL BEARING 20X42X12

10 370 ₽
19

0770020020 O-RING 20X2 VITON

O-RING 20X2 VITON

790 ₽
20

0760263561 SHAFT SEAL RING 26X35X6BSL NB

SHAFT SEAL RING 26X35X6BSL NB

1 520 ₽
21

46233030000 DISANCESPACER F. SPROCKET

DISANCESPACER F. SPROCKET

3 150 ₽
22

46233029014 CHAIN SPROCKET 14-T.

CHAIN SPROCKET 14-T.

5 680 ₽
22

46233029013 CHAIN SPROCKET 13-T.

CHAIN SPROCKET 13-T.

5 680 ₽
24

0625982030 BALL BEARING 98203 KSE C3

BALL BEARING 98203 KSE C3

23 360 ₽
25

0021050003 WASHER DIN9021-A 5,3

WASHER DIN9021-A 5,3

120 ₽
26

0912050083 AH SCREW DIN 912 M 5X8

AH SCREW DIN 912 M 5X8

180 ₽
99

00050000947 COUNTER SHAFT REP.KIT

COUNTER SHAFT REP.KIT

5 990 ₽
