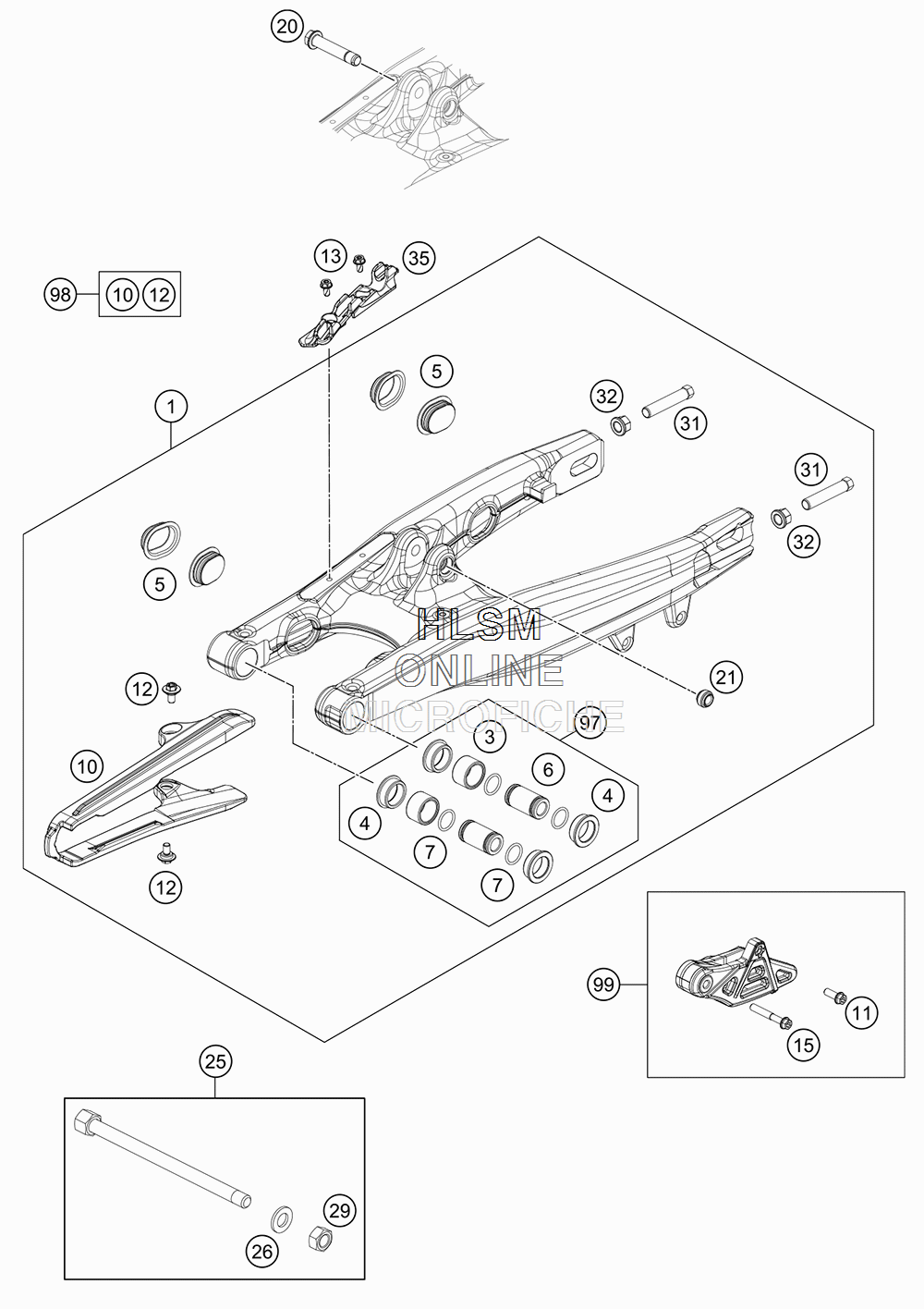

SWING ARM для Ktm 65 SX MINI - 2019 года выпуска
-
№АртикулНазвание
-
146304030044 SWING ARM CPL.SWING ARM CPL.
-
354603097000 NEEDLE BUSH HKNEEDLE BUSH HK
-
446004030070 SPACER BUSHING 20X26X30X9,7SPACER BUSHING 20X26X30X9,7
-
577204041000 CLOSING COVERCLOSING COVER
-
646004030071 BUSHING BOX 12X20X36,5BUSHING BOX 12X20X36,5
-
70770160021 O-RING 16,00X2,00 VITONO-RING 16,00X2,00 VITON
-
1046304066000 CHAIN SLID. GUARDCHAIN SLID. GUARD
-
110025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
1283008000012 SPECIAL SCREW M6X12X3SPECIAL SCREW M6X12X3
-
130009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
150025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
2077204089000 HH COLLAR SCREW M10X52 SW13HH COLLAR SCREW M10X52 SW13
-
2169004095000 ADAPTOR NUT M10ADAPTOR NUT M10
-
2546204037033 SWINGARM BOLT CPL. 201MMSWINGARM BOLT CPL. 201MM
-
260125120003 FLAT WASHER DIN0125-A13FLAT WASHER DIN0125-A13
-
290934120103 HEXAGON NUT DIN0934-M12X1HEXAGON NUT DIN0934-M12X1
-
3150203030090 HH SCREW M8X40HH SCREW M8X40
-
3246030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
3547113047000 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
9745204230010 SWINGARM REP. KITSWINGARM REP. KIT
-
9846304066010 CHAIN GUARD KITCHAIN GUARD KIT
-
9946307066010 CHAIN GUIDE KIT REARCHAIN GUIDE KIT REAR
