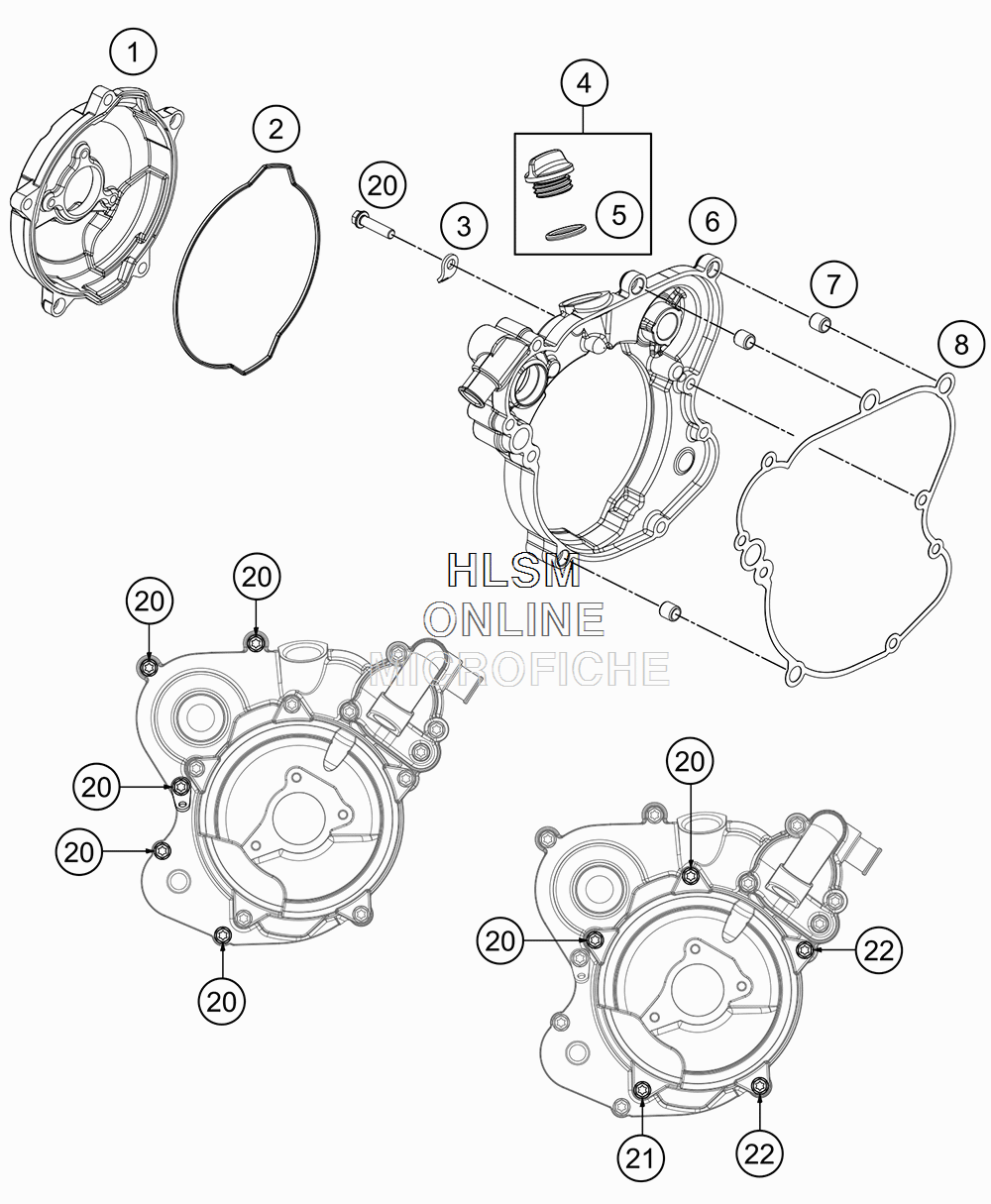

CLUTCH COVER для Ktm 65 SX MINI - 2019 года выпуска

  • №
    Артикул
    Название
  • 1
    46230026000 CLUTCH COVER OUTSIDE
    CLUTCH COVER OUTSIDE
  • 2
    46230027000 GASKET - CLUTCH OUTER COVER
    GASKET - CLUTCH OUTER COVER
  • 3
    51005074000 RETAINING PLATE
    RETAINING PLATE
  • 4
    79430020033 OIL FILLER CAP M24X3 WITH O-R
    OIL FILLER CAP M24X3 WITH O-R
  • 5
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
  • 6
    46330001000 INNER CLUTCH COVER
    INNER CLUTCH COVER
  • 7
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 8
    46230025100 GASKET - CLUTCH INNER COVER
    GASKET - CLUTCH INNER COVER
  • 20
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 21
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 22
    0025060556 HH COLLAR SCREW M6X55
    HH COLLAR SCREW M6X55
