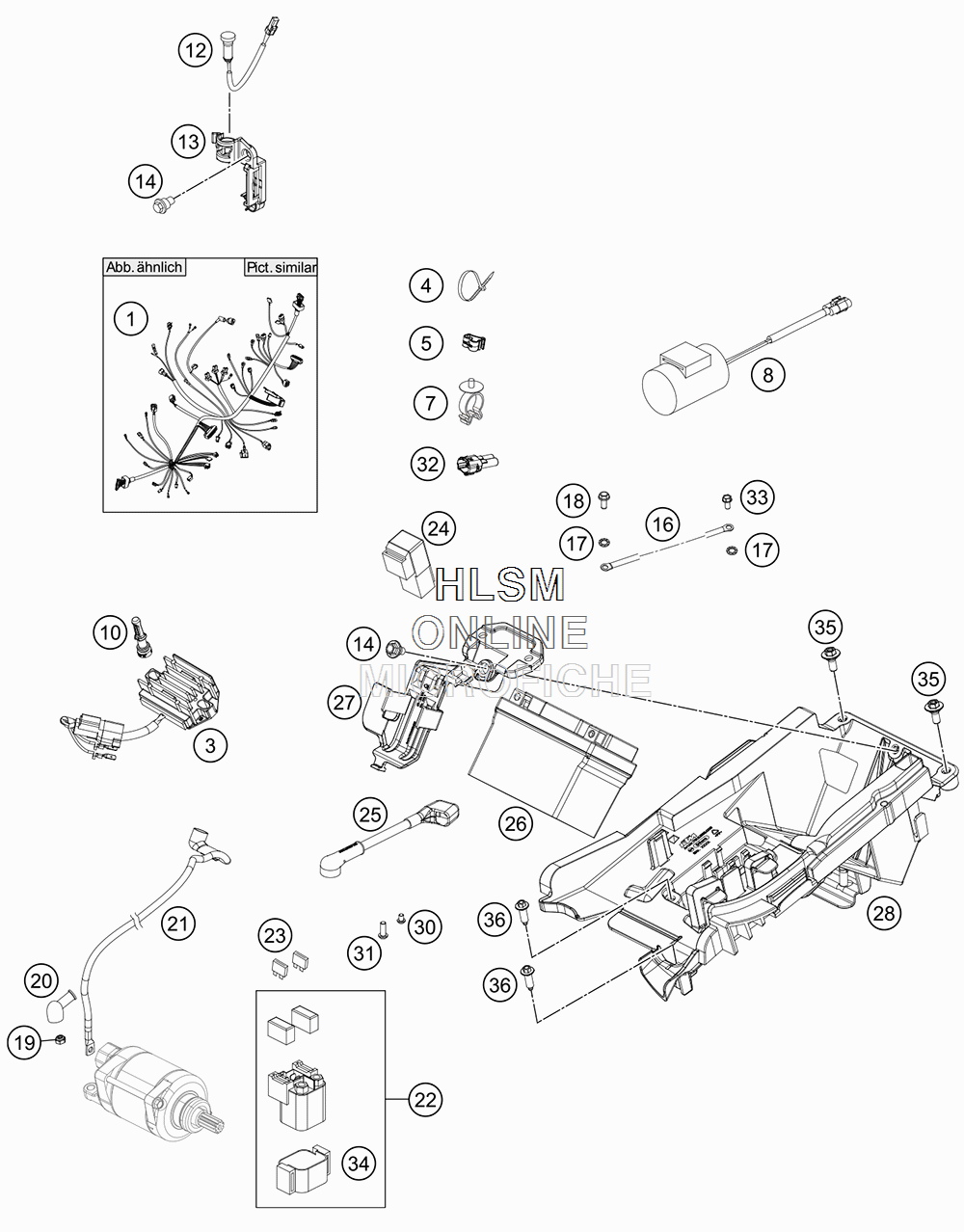

WIRING HARNESS для Ktm 250 SXF - 2019 года выпуска`
-
№АртикулНазвание
-
179111075000 WIRING HARNESS EFI SXFWIRING HARNESS EFI SXF
-
377211034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
444011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
444011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
444011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
583013026000 CABLE GUIDECABLE GUIDE
-
761111041000 CABLE SUPPORTCABLE SUPPORT
-
877711035000 CONDENSATORCONDENSATOR
-
1055641030000 HOLDER CONTROL UNITHOLDER CONTROL UNIT
-
1281214083000 INDICATOR LIGHT LED YELLOW FIINDICATOR LIGHT LED YELLOW FI
-
1377214098000 HOLDER INDICATOR LIGHTHOLDER INDICATOR LIGHT
-
1459001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
1658411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
1758411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
180009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
190985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
2077240099000 PROTECTION CAP F. STARTER ENG.PROTECTION CAP F. STARTER ENG.
-
2125111059000 STARTER CABLESTARTER CABLE
-
2258211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
2358011109110 FUSE 10 AFUSE 10 A
-
2461111057000 RELAY CM1A-R-12V-H80RELAY CM1A-R-12V-H80
-
2525111059050 BATTERY CABLEBATTERY CABLE
-
2679111053000 BATTERY 12V/24WHBATTERY 12V/24WH
-
2779111056000 BATTERY SUPPORTBATTERY SUPPORT
-
2879111055000 BATTERY BOXBATTERY BOX
-
300902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
310738060167 OVAL HEAD SCREW AH SOCKET M6X16 A2-70OVAL HEAD SCREW AH SOCKET M6X16 A2-70
-
32000700000AL001 ENDCONNECTOR CAN-BUS 2017ENDCONNECTOR CAN-BUS 2017
-
330025050126 HH COLLAR SCREW M5X12HH COLLAR SCREW M5X12
-
3458211058050 BRACKET RUBBER F .START RELAYBRACKET RUBBER F .START RELAY
-
3583008000015 SPECIAL SCREW M6X15X3SPECIAL SCREW M6X15X3
-
360017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
