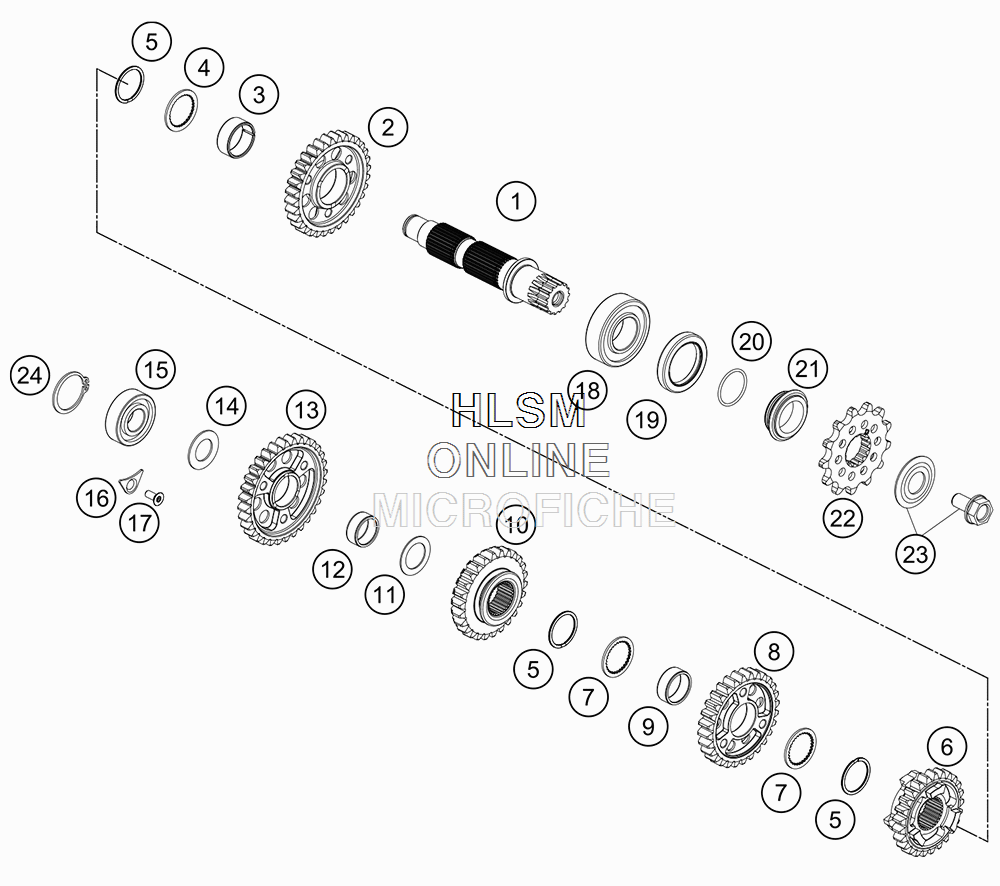

TRANSMISSION II - COUNTERSHAFT для Ktm 250 SXF - 2019 года выпуска

  • №
    Артикул
    Название
  • 1
    79133010000 OUTPUT SHAFT
    OUTPUT SHAFT
  • 2
    79133012000 IDLER GEAR , 2ND GEAR
    IDLER GEAR , 2ND GEAR
  • 3
    0405242812 NEDDLE BEAR. K24X28X11,9 DIV.
    NEDDLE BEAR. K24X28X11,9 DIV.
  • 4
    77733044000 STOP DISC 24X32X1,5
    STOP DISC 24X32X1,5
  • 5
    0417024000 CIRCLIP WS24
    CIRCLIP WS24
  • 6
    79133015000 SLIDING GEAR , 5TH GEAR
    SLIDING GEAR , 5TH GEAR
  • 7
    77733043000 STOP DISC 23,4X31X1,5
    STOP DISC 23,4X31X1,5
  • 8
    79133013000 IDLER GEAR , 3RD GEAR
    IDLER GEAR , 3RD GEAR
  • 9
    0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED
    NEEDLE BEAR.K 22X26X10 DIVIDED
  • 10
    79133014000 SLIDING GEAR , 4TH GEAR
    SLIDING GEAR , 4TH GEAR
  • 11
    54833080000 STOP DISC 20,2X30X1
    STOP DISC 20,2X30X1
  • 12
    0405202410 NEEDLE BEARING K20X24X10
    NEEDLE BEARING K20X24X10
  • 13
    79133011000 IDLER GEAR 1ST.
    IDLER GEAR 1ST.
  • 14
    77233020000 STOP DISK 17,2X30X1,3
    STOP DISK 17,2X30X1,3
  • 15
    0625062035 BALL BEARING 6203 JR2 C3
    BALL BEARING 6203 JR2 C3
  • 16
    75030085000 RETAINING PLATE F. CS BEARING
    RETAINING PLATE F. CS BEARING
  • 17
    0019050121S INT. TORX FLAT HEAD M5X12 T25
    INT. TORX FLAT HEAD M5X12 T25
  • 18
    49030023000 CYL.ROLL BEARING NJ205
    CYL.ROLL BEARING NJ205
  • 19
    0760324571 SHAFT SEAL RING 32X45X7 BSLNBR
    SHAFT SEAL RING 32X45X7 BSLNBR
  • 20
    0770020220 O-RING 25,12X1,78 NBR70
    O-RING 25,12X1,78 NBR70
  • 21
    78133014000 SPACER SLEEVE COUNTER
    SPACER SLEEVE COUNTER
  • 22
    79233029013 SPROCKET 13T
    SPROCKET 13T
  • 22
    79233029014 SPROCKET 14T
    SPROCKET 14T
  • 23
    59033034044 SCREW 10.9+SPRING WASHER
    SCREW 10.9+SPRING WASHER
  • 24
    0471170015 CIRCLIP DIN 0471-17X1,5
    CIRCLIP DIN 0471-17X1,5
