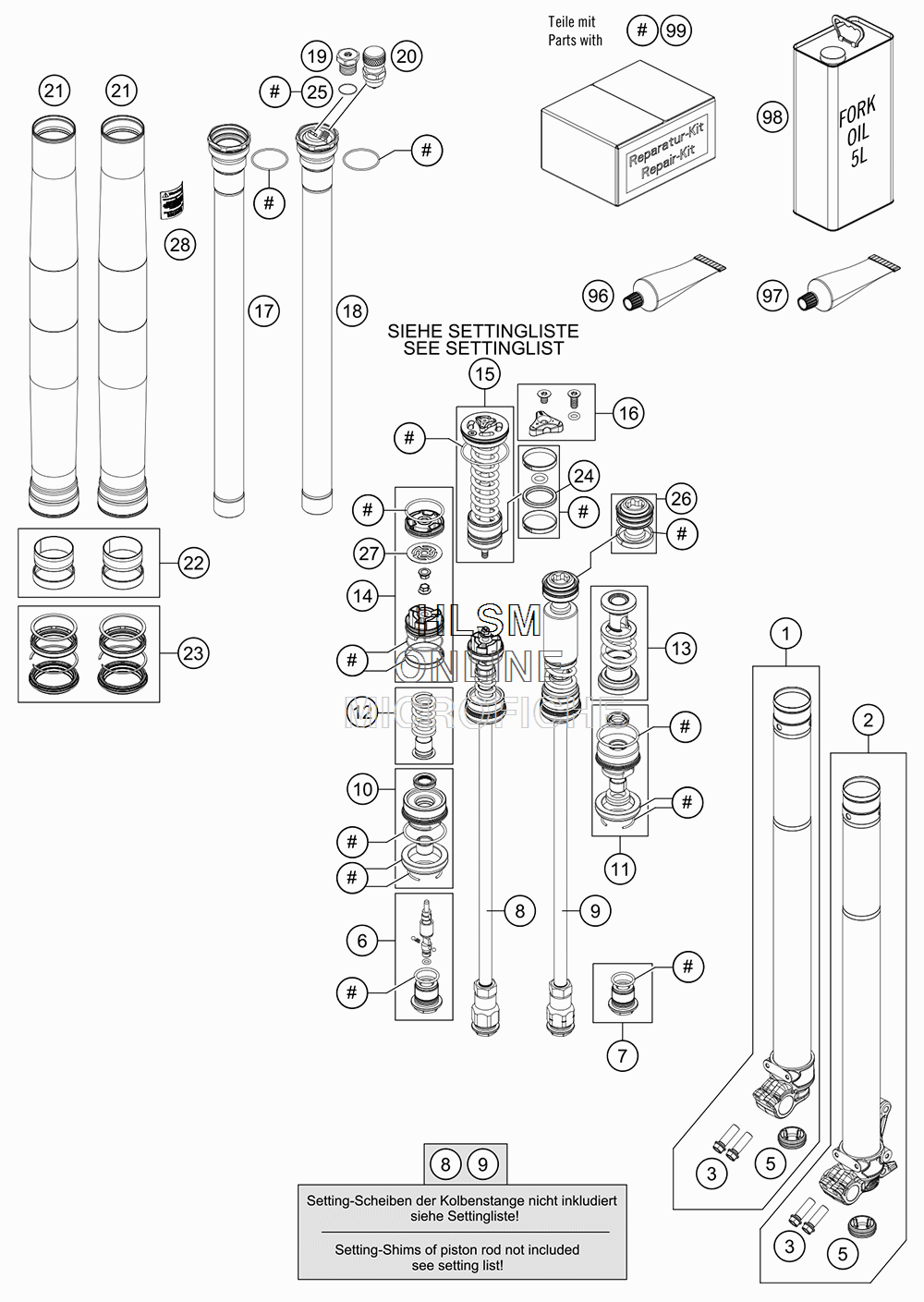

FRONT FORK DISASSEMBLED для Ktm 250 SXF - 2019 года выпуска

  • №
    Артикул
    Название
  • 1
    48601408S2 FORK LEG R/S + TUBE CPL.
    FORK LEG R/S + TUBE CPL.
  • 2
    48601407S2 FORK LEG L/S + TUBE CPL.
    FORK LEG L/S + TUBE CPL.
  • 3
    0025080256 HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 5
    48600692 RUBBER CAP D=26,4
    RUBBER CAP D=26,4
  • 6
    48601484S ADJUSTING CAP M20 CPL.
    ADJUSTING CAP M20 CPL.
  • 7
    48601533S PLUG M20 CPL.
    PLUG M20 CPL.
  • 8
    48601574S3 PISTON ROD D12 M9X1 L385 KPL.
    PISTON ROD D12 M9X1 L385 KPL.
  • 9
    48601501S1 PISTON ROD LEFT KPL. M12X1
    PISTON ROD LEFT KPL. M12X1
  • 10
    48601462S1 SCREW SLEEVE OIL CPL.
    SCREW SLEEVE OIL CPL.
  • 11
    48601452S1 SCREW SLEEVE AIR CPL.
    SCREW SLEEVE AIR CPL.
  • 12
    48600578S SPRING REBOUND + SPRING GUIDE
    SPRING REBOUND + SPRING GUIDE
  • 13
    48601820S SPRING REBOUND + SPRING GUIDE
    SPRING REBOUND + SPRING GUIDE
  • 14
    RP10015 PISTON SET AIR FORK D34 MY18
    PISTON SET AIR FORK D34 MY18
  • 15
    48601485S4 COMPRESSION UNIT CPL.
    COMPRESSION UNIT CPL.
  • 15
    48601485S3 COMPRESSION SPRING
    COMPRESSION SPRING
  • 16
    R14062 SMALL PARTS KIT SCREW CAP
    SMALL PARTS KIT SCREW CAP
  • 17
    48601454S1 SCREW CAP + TUBE CPL. R/S
    SCREW CAP + TUBE CPL. R/S
  • 18
    48601453S1 SCREW CAP + TUBE CPL. L/S
    SCREW CAP + TUBE CPL. L/S
  • 19
    48601495 PLUG SCREW M8X1 BN44
    PLUG SCREW M8X1 BN44
  • 20
    48601494S VALVE M8X1 INCL. SCREW CAP
    VALVE M8X1 INCL. SCREW CAP
  • 21
    48601671 OUTER TUBE L577 D54/60MM 2L
    OUTER TUBE L577 D54/60MM 2L
  • 22
    R14047 REP. KIT GUIDE BUSHINGS
    REP. KIT GUIDE BUSHINGS
  • 23
    R14046 SEALING KIT
    SEALING KIT
  • 24
    04100002 X-RING 26,57X3,53 FKM 80SH.
    X-RING 26,57X3,53 FKM 80SH.
  • 25
    48600044 O-RING NBR 6X1,5
    O-RING NBR 6X1,5
  • 26
    48601628S MAIN PISTON Ш34 INCL. GASKET
    MAIN PISTON Ш34 INCL. GASKET
  • 27
    48601459 CHECKVALVE SHIM
    CHECKVALVE SHIM
  • 28
    52000158 STICKER WARNING 40X40
    STICKER WARNING 40X40
  • 96
    T14034 FUCHS GREASE IPR (250G)
    FUCHS GREASE IPR (250G)
  • 97
    00062010053 SPECIAL GREASE FOR FORK 50G
    SPECIAL GREASE FOR FORK 50G
  • 98
    48601166S1 FORK OIL SAE4 5L
    FORK OIL SAE4 5L
  • 99
    R14060 SEALING KIT
    SEALING KIT
