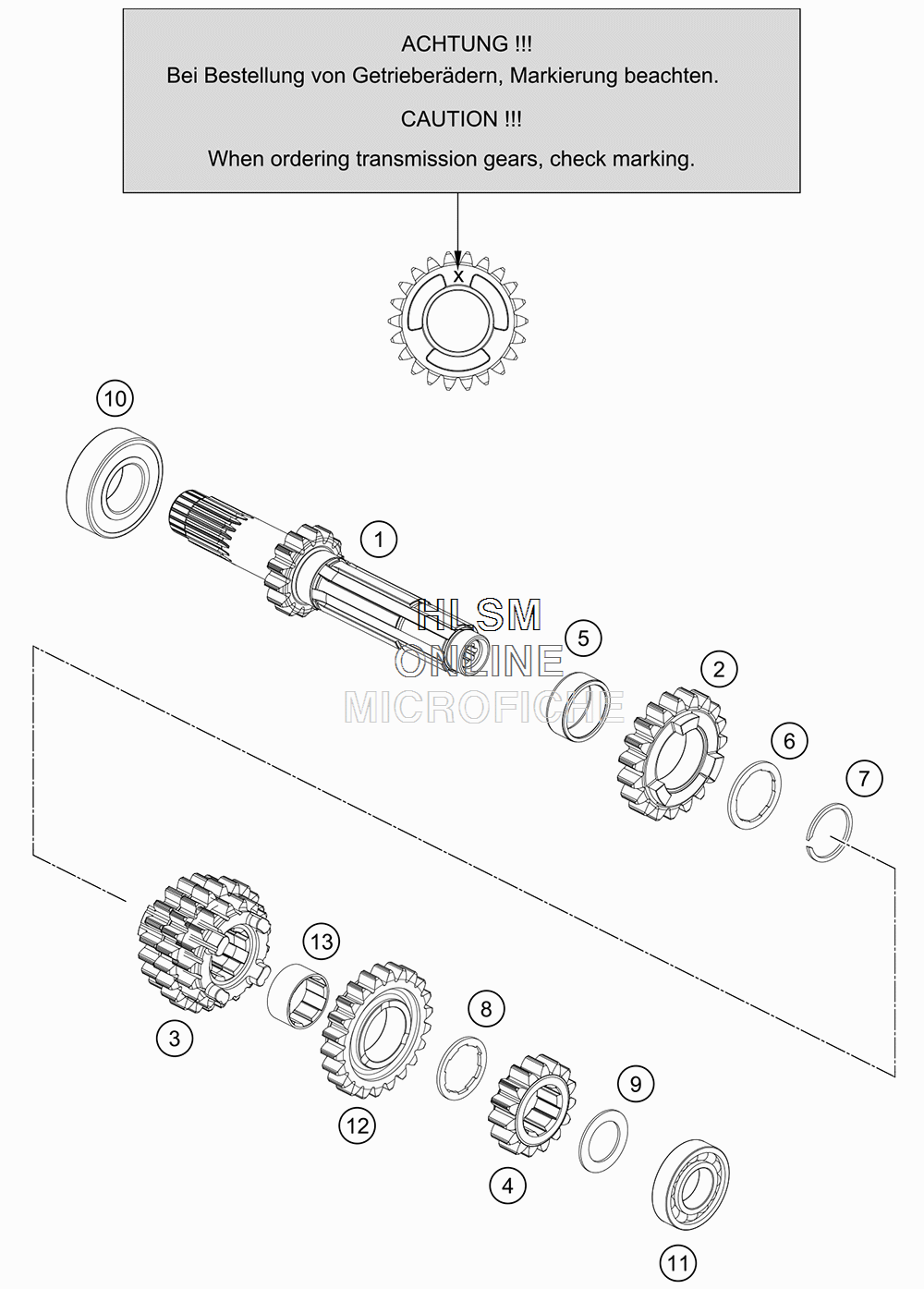

TRANSMISSION I - MAIN SHAFT для Ktm 125SX - 2019 года выпуска`
-
№АртикулНазвание
-
150533001000 DRIVE SHAFT ASSY . NOT=14DRIVE SHAFT ASSY . NOT=14
-
250533005000 IDLER GEAR , 5TH GEAR , TEETH=19IDLER GEAR , 5TH GEAR , TEETH=19
-
350533003000 SLIDING GEAR , 3RD/4TH GEAR , TEETH=17/19SLIDING GEAR , 3RD/4TH GEAR , TEETH=17/19
-
450533002000 FIXED GEAR , 2ND GEAR , TEETH=15FIXED GEAR , 2ND GEAR , TEETH=15
-
50405222611 NEEDLE BEAR.K 22X26X10 DIVIDEDNEEDLE BEAR.K 22X26X10 DIVIDED
-
650533034000 THRUST WASHERTHRUST WASHER
-
750133090000 LOCK RING 22X1,2LOCK RING 22X1,2
-
850533033000 STOP DISKSTOP DISK
-
950333041000 STOP DISC 17,2X26X1 BSTOP DISC 17,2X26X1 B
-
100625060041 BALL BEARING 6004 TNH C3BALL BEARING 6004 TNH C3
-
110625160031 GROOVED BALL B. 16003 C4 J1GROOVED BALL B. 16003 C4 J1
-
1250533006000 IDLER GEAR , 6TH GEAR , TEETH=22IDLER GEAR , 6TH GEAR , TEETH=22
-
1350533024000 BUSHINGBUSHING
