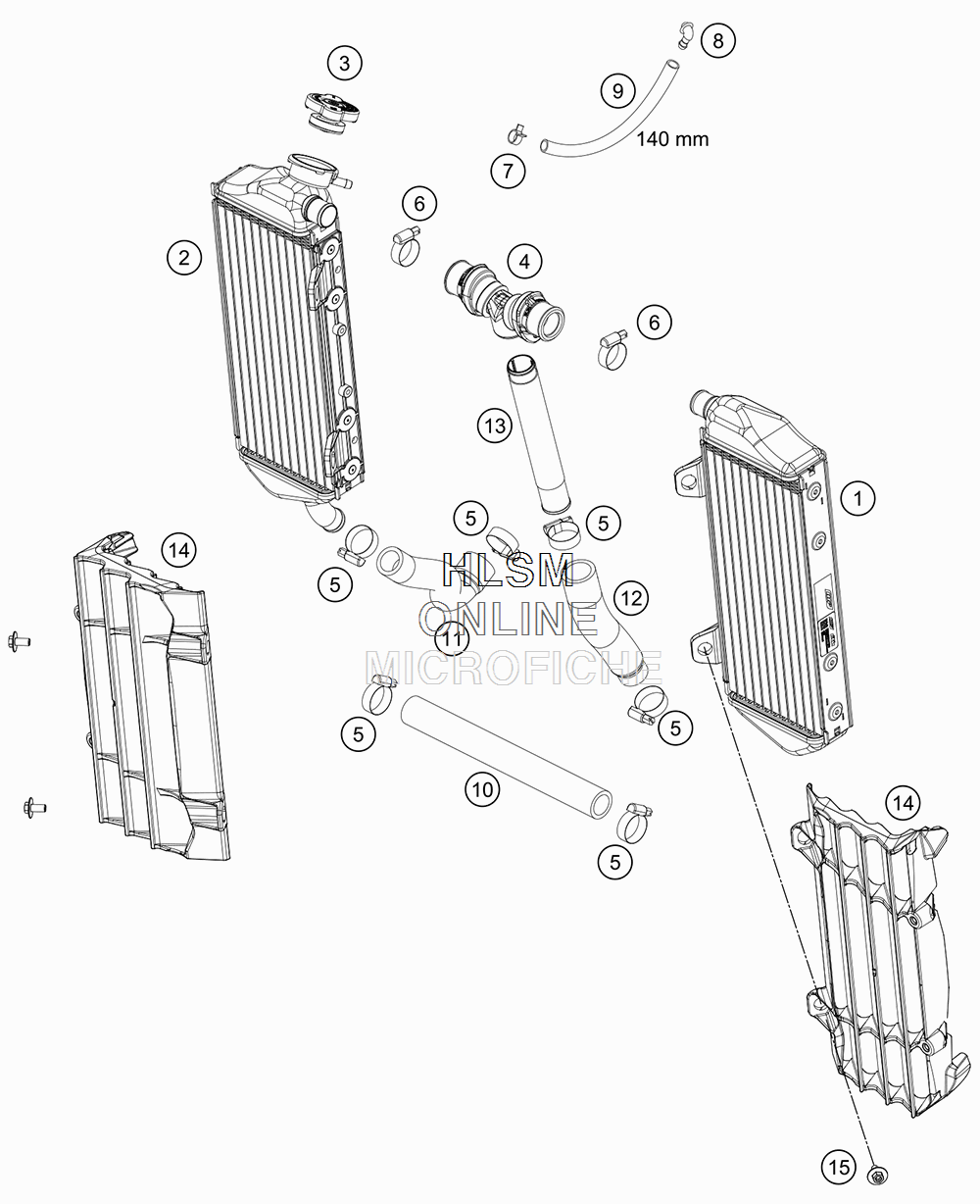

COOLING SYSTEM для Ktm 125SX - 2019 года выпуска
-
№АртикулНазвание
-
150535007100 RADIATOR, LEFT 19RADIATOR, LEFT 19
-
250535008100 RADIATOR, RIGHT 19RADIATOR, RIGHT 19
-
379035016000 RADIATOR CAP 1,8 BARRADIATOR CAP 1,8 BAR
-
479135071044 Y-HOSE CPL.Y-HOSE CPL.
-
510001020300 HOSE CLAMP 18-29HOSE CLAMP 18-29
-
642013037400 HOSE CLAMP NORMA 14/24HOSE CLAMP NORMA 14/24
-
759007017000 CLAMP YDNAC 10096F (9,6MM)CLAMP YDNAC 10096F (9,6MM)
-
850303089000 ANGLE PIECEANGLE PIECE
-
950335030001 PVC-HOSE 6X9PVC-HOSE 6X9
-
1050535025000 PRE-FORMED HOSE, RADIATORPRE-FORMED HOSE, RADIATOR
-
1150535027000 PREFORMED HOSEPREFORMED HOSE
-
1250535026000 PRE-FORMED HOSE, Y -PIECEPRE-FORMED HOSE, Y -PIECE
-
1379135073000 THREADED BUSHINGTHREADED BUSHING
-
147913503400030 RADIATOR PROTECTOR LE/RI BLACKRADIATOR PROTECTOR LE/RI BLACK
-
150024060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
