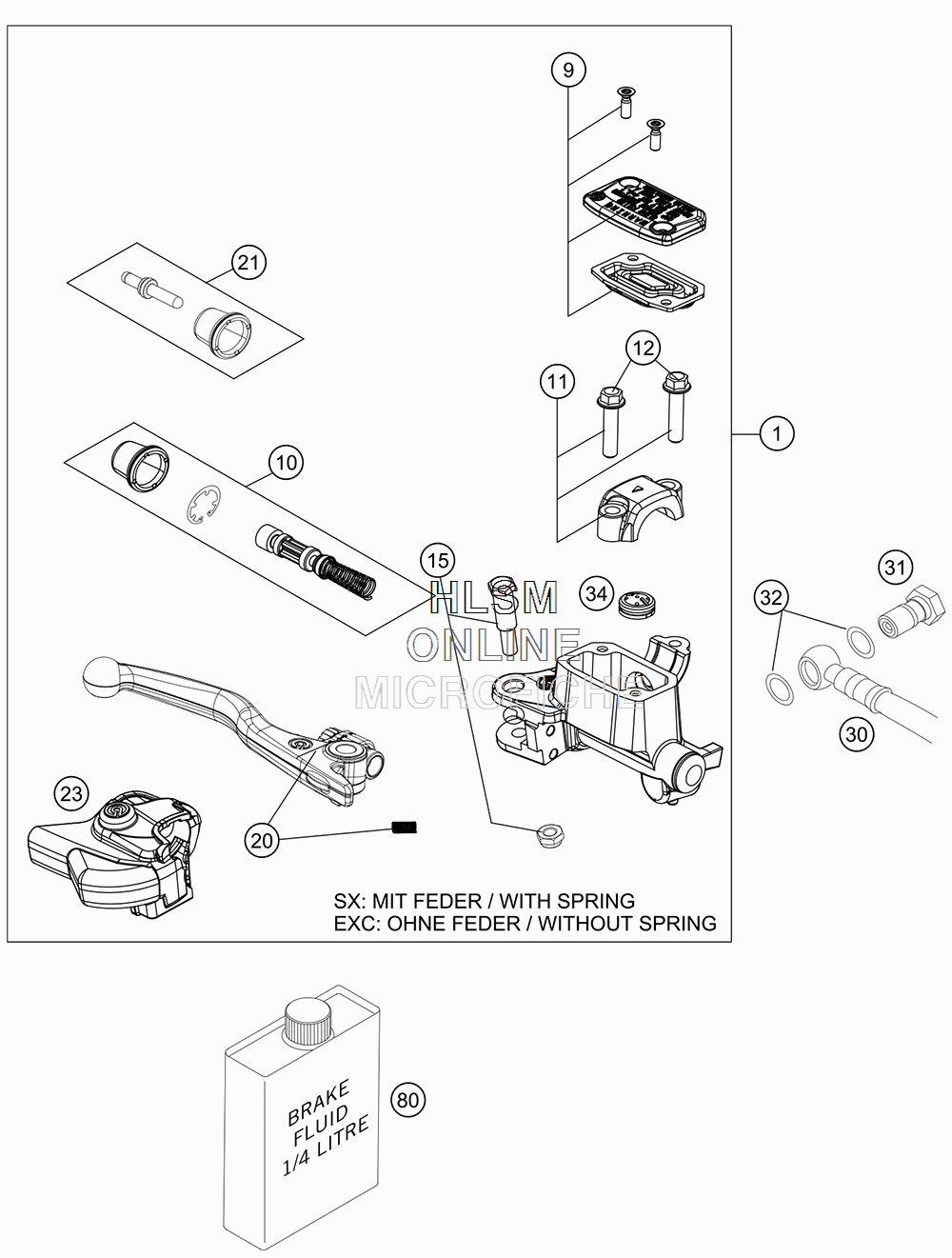

FRONT BRAKE CONTROL для Ktm 125SX - 2019 года выпуска

  • №
    Артикул
    Название
  • 1
    77713001044 HAND BREAK CYLIND. CPL.
    HAND BREAK CYLIND. CPL.
  • 9
    77713003000 HAND BRAKE CYL. COVER
    HAND BRAKE CYL. COVER
  • 10
    77713008000 REPAIR KIT PISTON
    REPAIR KIT PISTON
  • 11
    54802005100 CLAMP CPL.
    CLAMP CPL.
  • 12
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 15
    77713006000 LEVER SCREW
    LEVER SCREW
  • 20
    77713002000 HAND BRAKE LEVER +SPRING SX
    HAND BRAKE LEVER +SPRING SX
  • 21
    77713007000 PUSH ROD CPL. SX 2014
    PUSH ROD CPL. SX 2014
  • 23
    77713004000 PROTECTION CAP HAND BRAKE CYL.
    PROTECTION CAP HAND BRAKE CYL.
  • 30
    59013010000 BRAKEHO. FRONT 1235MM
    BRAKEHO. FRONT 1235MM
  • 31
    54813020100 HOLLOW SCREW BLACK M10X1X19
    HOLLOW SCREW BLACK M10X1X19
  • 32
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 34
    54802051000 VALVE
    VALVE
  • 80
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
