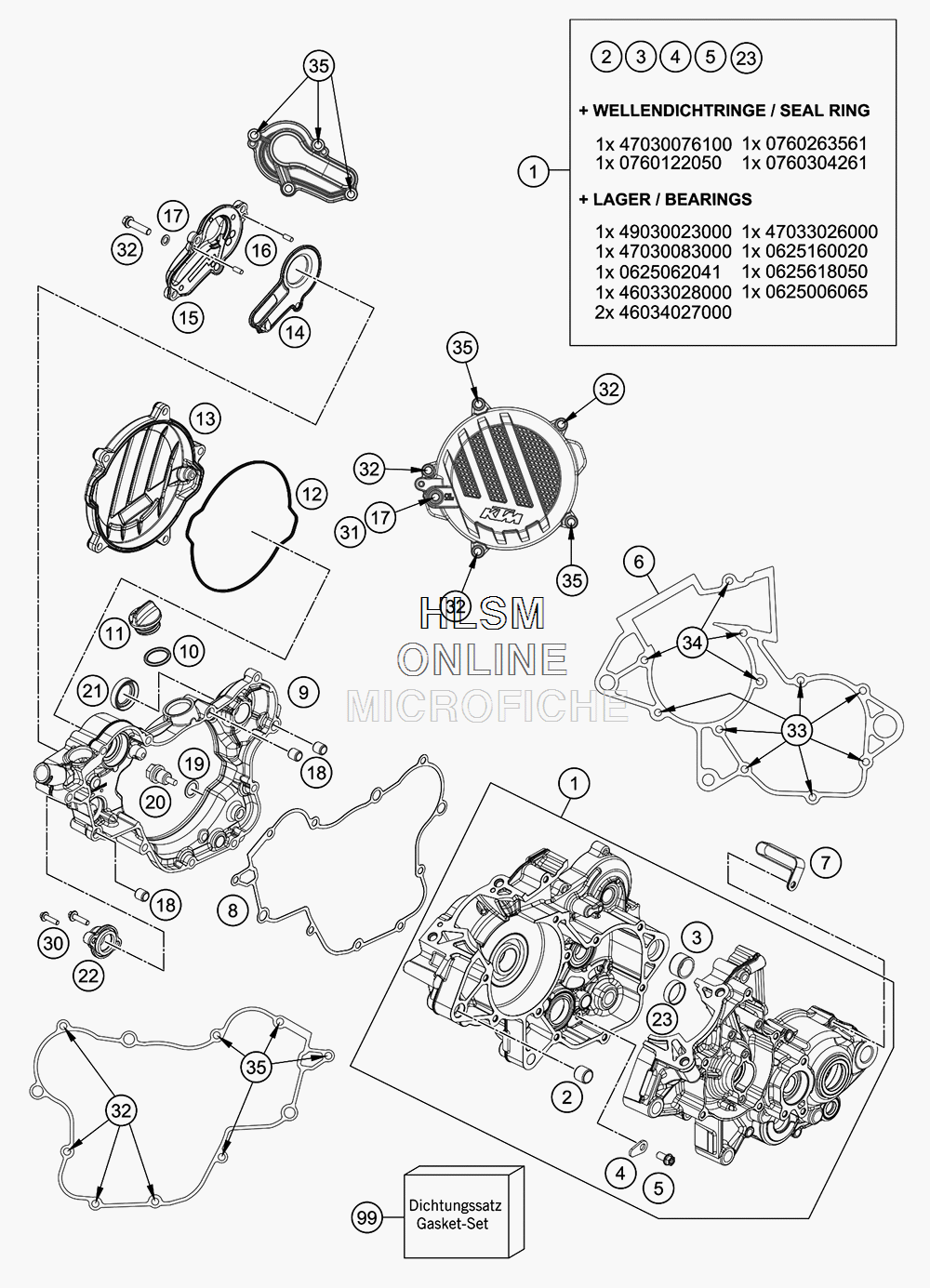

ENGINE CASE для Ktm 85 SX - 2018 года выпуска`
-
№АртикулНазвание
-
147230000044 ENGINE CASE CPL.ENGINE CASE CPL.
-
254630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
354830027000 DOWEL 21X12DOWEL 21X12
-
454634049000 RETAINING PLATERETAINING PLATE
-
50025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
647230039000 CRANKCASE COVER GASKETCRANKCASE COVER GASKET
-
755430090000 BRACKET FOR BLEEDING TUBEBRACKET FOR BLEEDING TUBE
-
847230025000 GASKET INNER CLUTCH COVERGASKET INNER CLUTCH COVER
-
947230001000 INNER CLUTCH COVERINNER CLUTCH COVER
-
100770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
1179430020000 OIL CAPOIL CAP
-
1247230027000 CLUTCHCOVER GASKETCLUTCHCOVER GASKET
-
134723002600015 CLUTCH COVER CPL.CLUTCH COVER CPL.
-
1447235053000 GASKET WITH SUPPORTHEETGASKET WITH SUPPORTHEET
-
1547235052000 WATER PUMP COVERWATER PUMP COVER
-
160402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
170603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
1849030090100 DOWEL 9,8 X7X10DOWEL 9,8 X7X10
-
1958038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
2058030021100 OILDRAIN PLUG WITH MAGNETOILDRAIN PLUG WITH MAGNET
-
210760193070 SHAFT SEAL RING 19X30X7 BSHAFT SEAL RING 19X30X7 B
-
2254637070100 COVER LIDCOVER LID
-
2350433024050 BUSHING IDLER GEARBUSHING IDLER GEAR
-
300014050203 HH COLLAR SCREW M 5X20HH COLLAR SCREW M 5X20
-
310025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
320025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
330025060456 HH COLLAR SCREW M6X45HH COLLAR SCREW M6X45
-
340025060506 HH COLLAR SCREW M6X50HH COLLAR SCREW M6X50
-
350025060606 HH COLLAR SCREW M6X60HH COLLAR SCREW M6X60
-
9947230099000 DICHTUNGSSATZ CPL.DICHTUNGSSATZ CPL.
