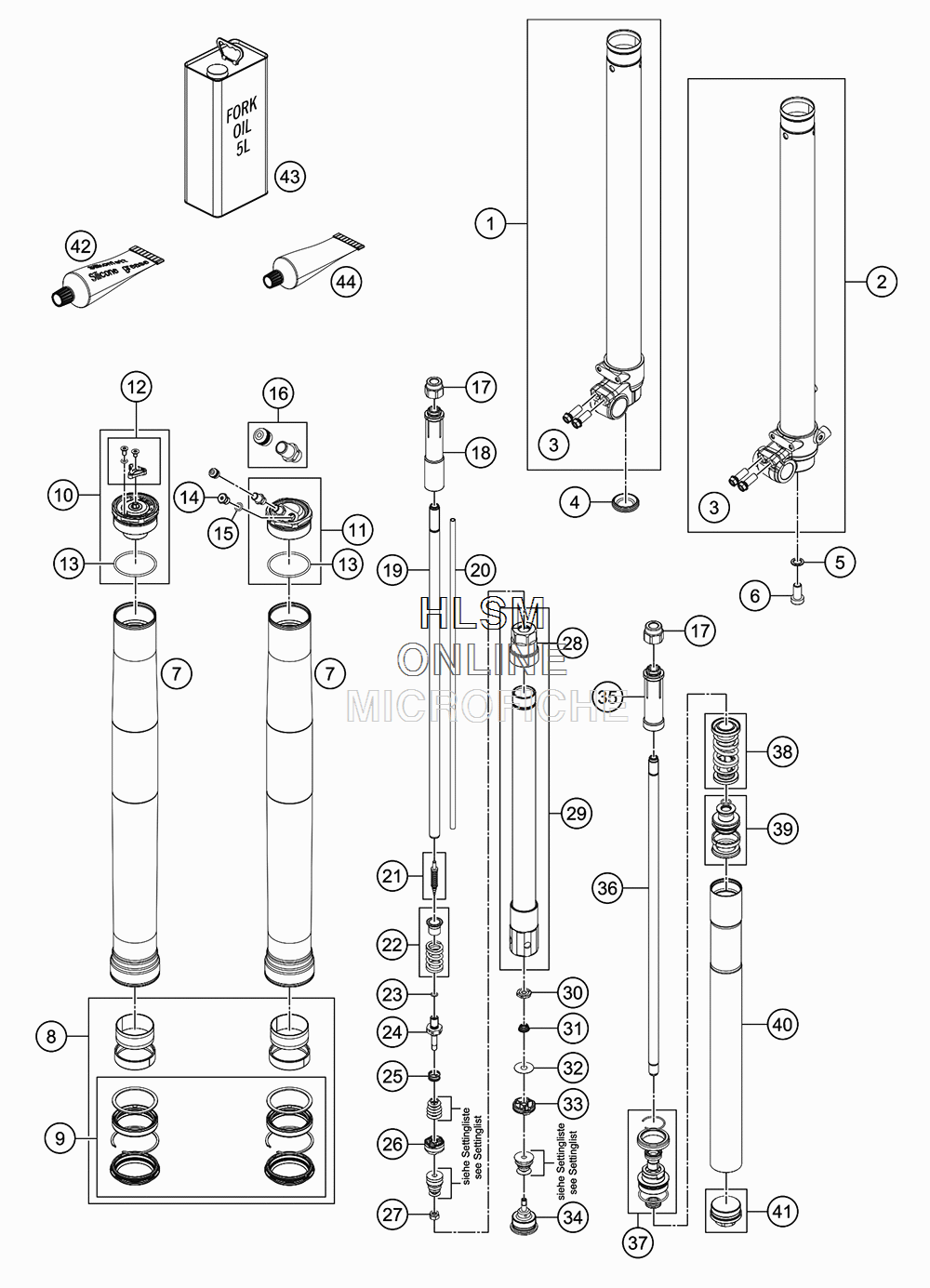

FRONT FORK DISASSEMBLED для Ktm 85 SX - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    43570818S1 AXLE CLAMP RIGHT W/ TUBE
    AXLE CLAMP RIGHT W/ TUBE
  • 2
    43570817S1 AXLE CLAMP LEFT W/ TUBE
    AXLE CLAMP LEFT W/ TUBE
  • 3
    0025080206 HH COLLAR SCREW M8X20
    HH COLLAR SCREW M8X20
  • 4
    48600141 RUBBER CAP D=35MM
    RUBBER CAP D=35MM
  • 5
    48601249 USIT RING 10,7X16X1,5 NBR USF
    USIT RING 10,7X16X1,5 NBR USF
  • 6
    00501020 ISK SCHRAUBE M10X20
    ISK SCHRAUBE M10X20
  • 7
    43570614E OUTER TUBE L510 D49/53
    OUTER TUBE L510 D49/53
  • 8
    RP10017 REVISION KIT 43MM
    REVISION KIT 43MM
  • 9
    R516 GASKET SET 43MM HD+ RED
    GASKET SET 43MM HD+ RED
  • 10
    43570807S SCREW CAP M46X1,5 CPL.
    SCREW CAP M46X1,5 CPL.
  • 11
    43570814S SCREW CAP M46X1,5 Ш49 CPL.
    SCREW CAP M46X1,5 Ш49 CPL.
  • 12
    RP10016 ADJUSTER KIT REBOUND
    ADJUSTER KIT REBOUND
  • 13
    43570023 O-RING NBR 41X2
    O-RING NBR 41X2
  • 14
    48601495 PLUG SCREW M8X1 BN44
    PLUG SCREW M8X1 BN44
  • 15
    48600044 O-RING NBR 6X1,5
    O-RING NBR 6X1,5
  • 16
    48601494S VALVE M8X1 INCL. SCREW CAP
    VALVE M8X1 INCL. SCREW CAP
  • 17
    43570859 COUNTERNUT M12X1 HEX22
    COUNTERNUT M12X1 HEX22
  • 18
    43570856 STOP L=115
    STOP L=115
  • 19
    48601811 PISTON ROD D12 L 477,5MM
    PISTON ROD D12 L 477,5MM
  • 20
    48601812 EIADJUSTMENT TUBE L 445,1 D6
    EIADJUSTMENT TUBE L 445,1 D6
  • 21
    48600277S ADJUSTING NEEDLE CPL.
    ADJUSTING NEEDLE CPL.
  • 22
    48600578S SPRING REBOUND + SPRING GUIDE
    SPRING REBOUND + SPRING GUIDE
  • 23
    48600299 O-RING 6X1,2 NBR
    O-RING 6X1,2 NBR
  • 24
    48600576 PISTON ROD REBOUND
    PISTON ROD REBOUND
  • 25
    35480377 SPRING CHECK VALVE D=0,5
    SPRING CHECK VALVE D=0,5
  • 26
    48600575S1 PISTON CPL.
    PISTON CPL.
  • 27
    40540486 NUT M6X0,5 REBOUND
    NUT M6X0,5 REBOUND
  • 28
    43570852S SCHRAUBHЬLSE M27X0,8 KPL.
    SCHRAUBHЬLSE M27X0,8 KPL.
  • 29
    48600870S3 CARTRIDGE CPL.
    CARTRIDGE CPL.
  • 30
    48600163 CHECK VALVE NUT M6X0,5 D=2
    CHECK VALVE NUT M6X0,5 D=2
  • 31
    48600202 SPRING CHECK VALVE D=0,7
    SPRING CHECK VALVE D=0,7
  • 32
    48600061 CHECK VALVE 8X24X0,4
    CHECK VALVE 8X24X0,4
  • 33
    48600047S PISTON + O-RING
    PISTON + O-RING
  • 34
    48600586S TAP COMPRESSION CPL.
    TAP COMPRESSION CPL.
  • 35
    43570819 STOP L=78,5
    STOP L=78,5
  • 36
    48601501 PISTON ROD D12 M12X1 M11,5X1
    PISTON ROD D12 M12X1 M11,5X1
  • 37
    48601452S1 SCREW SLEEVE AIR CPL.
    SCREW SLEEVE AIR CPL.
  • 38
    48601820S1 REBOUND SPRING CPL.
    REBOUND SPRING CPL.
  • 39
    43570844S MAIN PISTON Ш34 AER43
    MAIN PISTON Ш34 AER43
  • 40
    48601571S2 T UBE IШ34 L=410 AIR
    T UBE IШ34 L=410 AIR
  • 41
    43570845S ADAPTER M35,5X0,8 M10 CPL.
    ADAPTER M35,5X0,8 M10 CPL.
  • 42
    T14034 FUCHS GREASE IPR (250G)
    FUCHS GREASE IPR (250G)
  • 43
    48601166S1 FORK OIL SAE4 5L
    FORK OIL SAE4 5L
  • 44
    00062010051 CENTOPLEX 2 EP - 45G MP-GREASE
    CENTOPLEX 2 EP - 45G MP-GREASE
