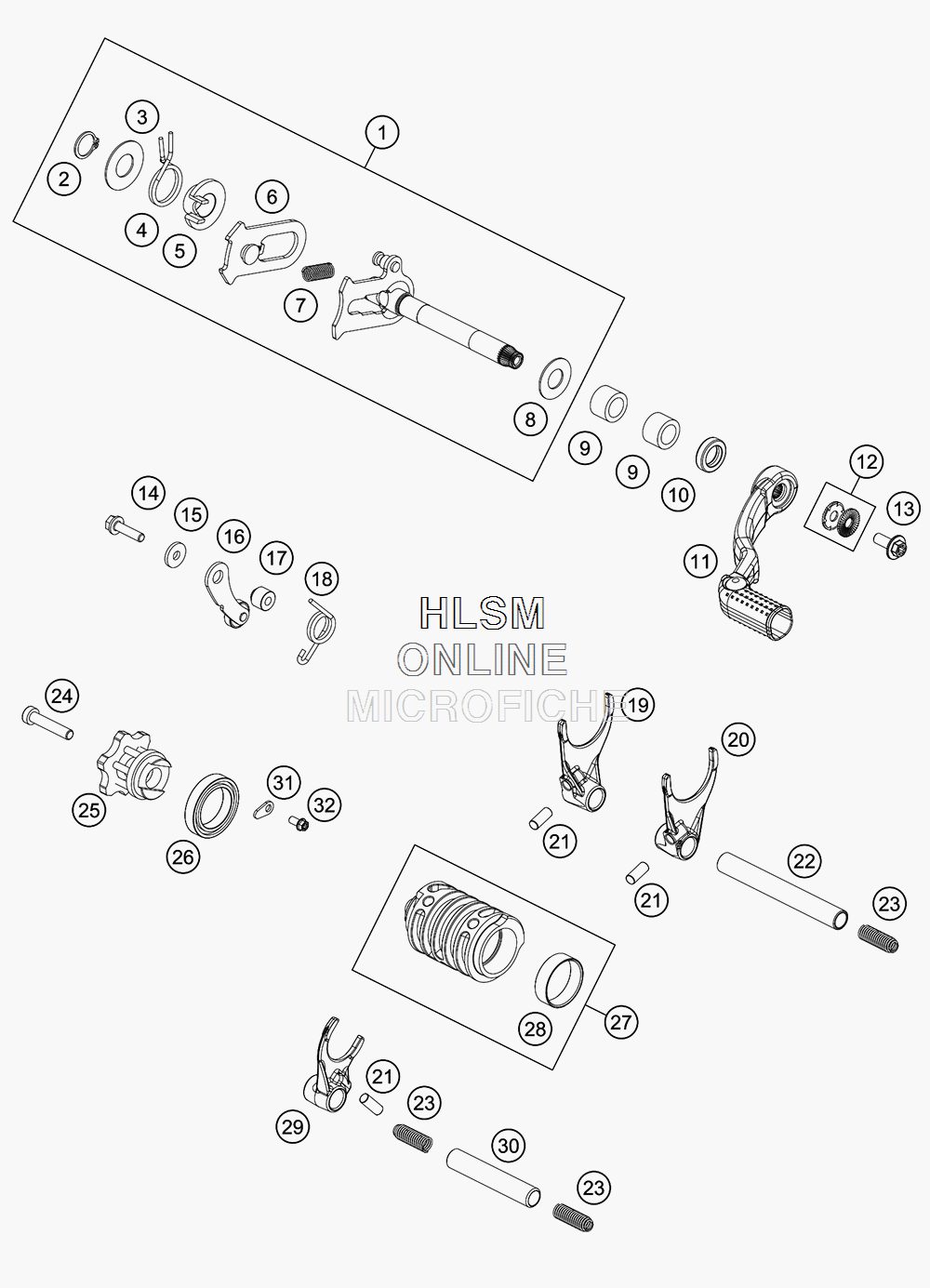

SHIFTING MECHANISM для Ktm 85 SX - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    47234005044 SHIFT SHAFT CPL.
    SHIFT SHAFT CPL.
  • 2
    0471140100 LOCK WASHER DIN0471-14X1
    LOCK WASHER DIN0471-14X1
  • 3
    54634050000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 4
    54834014000 RETURN SPRING
    RETURN SPRING
  • 5
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 6
    79234008144 SLIDING PLATE CPL.
    SLIDING PLATE CPL.
  • 7
    56534013100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 8
    49033013000 STOP DISK 12,1X25X1
    STOP DISK 12,1X25X1
  • 9
    46034027000 NEEDLE BEARING 12X18X12
    NEEDLE BEARING 12X18X12
  • 10
    0760122050 SHAFT SEAL RING 12X20X5 B
    SHAFT SEAL RING 12X20X5 B
  • 11
    50434031000 SHIFT LEVER CPL.
    SHIFT LEVER CPL.
  • 12
    50233041500 PAIR NORDLOCK WASHER M6
    PAIR NORDLOCK WASHER M6
  • 13
    0024060156S HH COLLAR SCREW M6X15 TORX30
    HH COLLAR SCREW M6X15 TORX30
  • 14
    0025050206 HH COLLAR SCREW M5X20
    HH COLLAR SCREW M5X20
  • 15
    0349000050 WASHER DIN7349-5X15X2
    WASHER DIN7349-5X15X2
  • 16
    55434024000 LOCKING LEVER CPL.
    LOCKING LEVER CPL.
  • 17
    54634052300 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 18
    50334023000 LOCATING LEVER SPRING 2,5MM
    LOCATING LEVER SPRING 2,5MM
  • 19
    47234002000 SHIFT FORK 1.-4. GEAR
    SHIFT FORK 1.-4. GEAR
  • 20
    47234003000 SHIFT FORK 2.-3. GEAR
    SHIFT FORK 2.-3. GEAR
  • 21
    0402061480 NEEDLE ROLLER DIN5402 6X14,8
    NEEDLE ROLLER DIN5402 6X14,8
  • 22
    47234019000 SHIFT RAIL 11.8X80X8MM
    SHIFT RAIL 11.8X80X8MM
  • 23
    58038023200 PRESSURE SPRING 0,9MM
    PRESSURE SPRING 0,9MM
  • 24
    0984060302 AH SCREW DIN6912 M 6X30
    AH SCREW DIN6912 M 6X30
  • 25
    79234015000 SHIFT DRUM LOCATING CPL.
    SHIFT DRUM LOCATING CPL.
  • 26
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 27
    47234012044 SHIFT DRUM CPL.
    SHIFT DRUM CPL.
  • 29
    47234001000 SHIFT FORK 5.-6. GEAR
    SHIFT FORK 5.-6. GEAR
  • 30
    46234020000 SHIFTING RAIL MAIN SHAFT
    SHIFTING RAIL MAIN SHAFT
  • 31
    54634049000 RETAINING PLATE
    RETAINING PLATE
  • 32
    0025060126 HH COLLAR SCREW M6X12
    HH COLLAR SCREW M6X12
