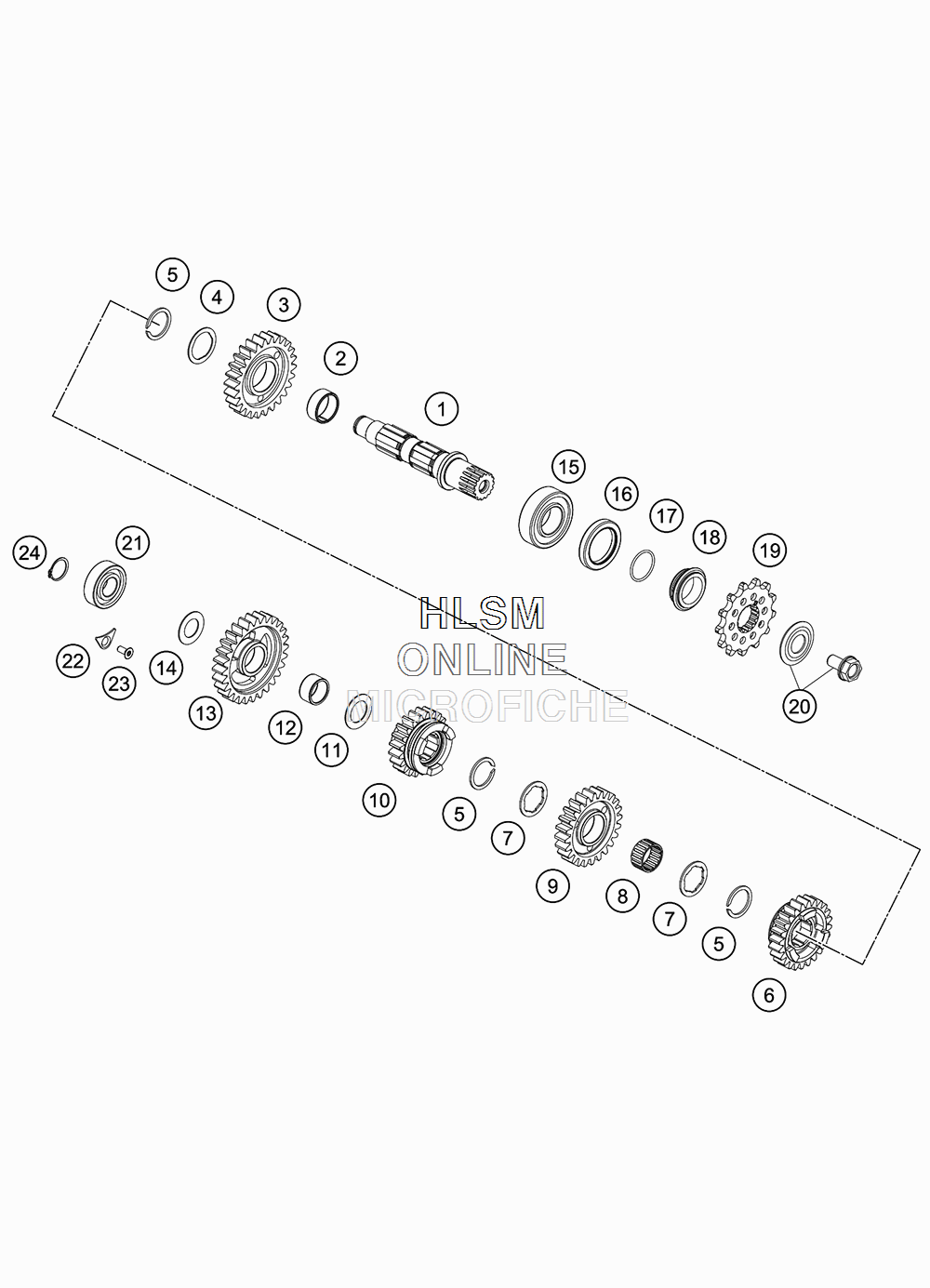

TRANSMISSION II - COUNTERSHAFT для Ktm 350 SX-F - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    77233010100 OUTPUT SHAFT
    OUTPUT SHAFT
  • 2
    0405242812 NEDDLE BEAR. K24X28X11,9 DIV.
    NEDDLE BEAR. K24X28X11,9 DIV.
  • 3
    54833012300 IDLER GEAR 2 ND.
    IDLER GEAR 2 ND.
  • 4
    50333043000 STOP DISC 25,2X32X1
    STOP DISC 25,2X32X1
  • 5
    77033022000 AXIAL-CIRCLIP 25X1,65
    AXIAL-CIRCLIP 25X1,65
  • 6
    54833014100 SLIDING GEAR 4 TH. 24-Z
    SLIDING GEAR 4 TH. 24-Z
  • 7
    59033030000 STOP DISC 25,2X32X1,5
    STOP DISC 25,2X32X1,5
  • 8
    0405222613 NEEDLE BEAR. K 22X26X13 TN
    NEEDLE BEAR. K 22X26X13 TN
  • 9
    54833013100 IDLER GEAR 3RD. 24-Z
    IDLER GEAR 3RD. 24-Z
  • 10
    54833015100 SLIDING GEAR 5.G-21Z
    SLIDING GEAR 5.G-21Z
  • 11
    59033080000 SHIM 20X32X1
    SHIM 20X32X1
  • 12
    0405202413 NEEDLE BEAR. K20X24X13
    NEEDLE BEAR. K20X24X13
  • 13
    54833011200 IDLER GEAR 1 ST.
    IDLER GEAR 1 ST.
  • 14
    56033030000 STOP DISC 17,2X30X1
    STOP DISC 17,2X30X1
  • 15
    49030023000 CYL.ROLL BEARING NJ205
    CYL.ROLL BEARING NJ205
  • 16
    0760324571 SHAFT SEAL RING 32X45X7 BSLNBR
    SHAFT SEAL RING 32X45X7 BSLNBR
  • 17
    0770020220 O-RING 25,12X1,78 NBR70
    O-RING 25,12X1,78 NBR70
  • 18
    78133014000 SPACER SLEEVE COUNTER
    SPACER SLEEVE COUNTER
  • 19
    79233029014 SPROCKET 14T
    SPROCKET 14T
  • 19
    79233029013 SPROCKET 13T
    SPROCKET 13T
  • 20
    59033034044 SCREW 10.9+SPRING WASHER
    SCREW 10.9+SPRING WASHER
  • 21
    0625062035 BALL BEARING 6203 JR2 C3
    BALL BEARING 6203 JR2 C3
  • 22
    75030085000 RETAINING PLATE F. CS BEARING
    RETAINING PLATE F. CS BEARING
  • 23
    0019050121S INT. TORX FLAT HEAD M5X12 T25
    INT. TORX FLAT HEAD M5X12 T25
  • 24
    0471170015 CIRCLIP DIN 0471-17X1, 5
    CIRCLIP DIN 0471-17X1, 5
