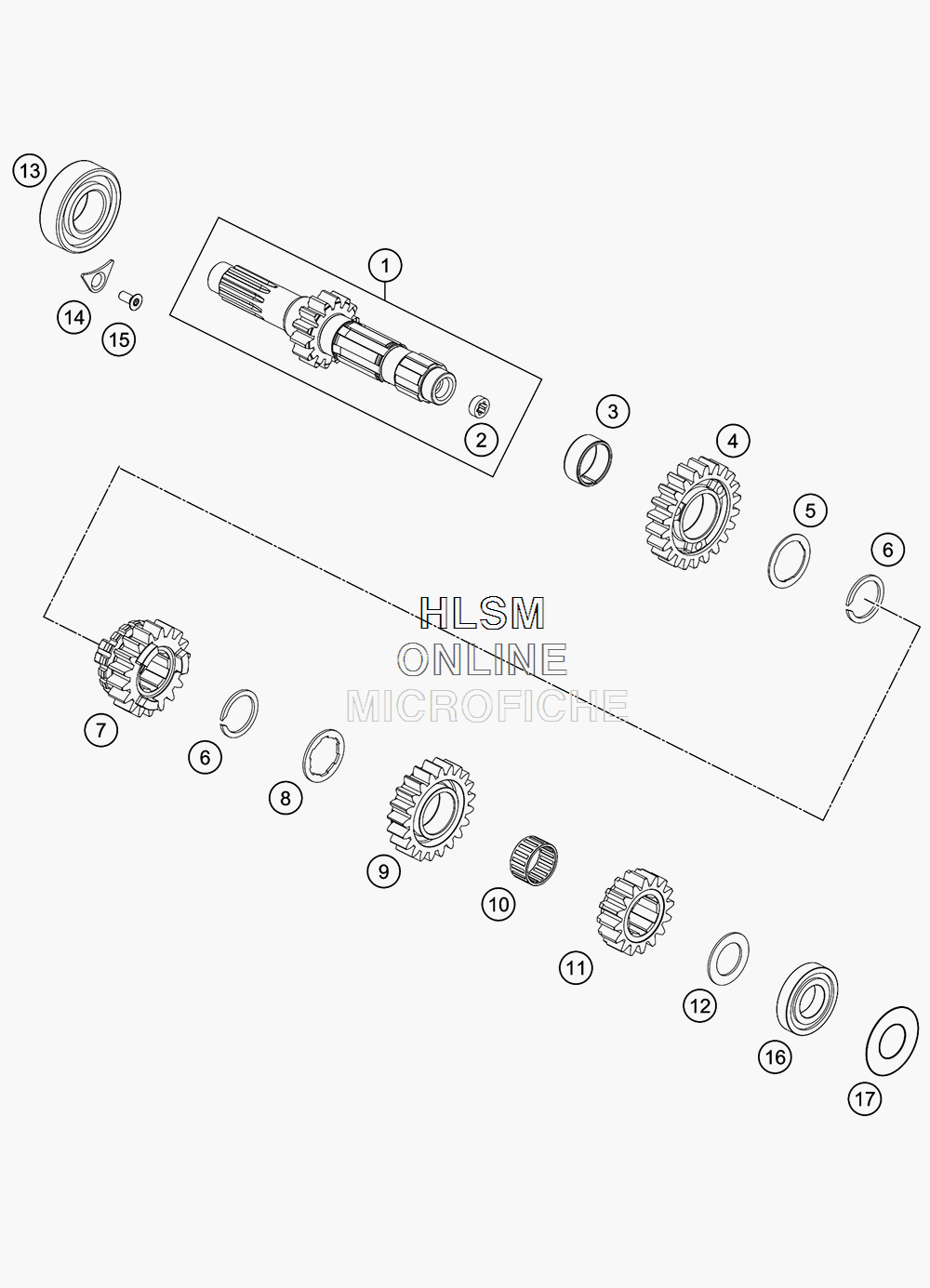

TRANSMISSION I - MAIN SHAFT для Ktm 350 SX-F - 2018 года выпуска
-
№АртикулНазвание
-
177233001200 MAIN SHAFT CPL.MAIN SHAFT CPL.
-
278033001110 BUSHINGBUSHING
-
30405242812 NEDDLE BEAR. K24X28X11,9 DIV.NEDDLE BEAR. K24X28X11,9 DIV.
-
454833005100 IDLER GEAR 5.G, Z=25IDLER GEAR 5.G, Z=25
-
550333043000 STOP DISC 25,2X32X1STOP DISC 25,2X32X1
-
677033022000 AXIAL-CIRCLIP 25X1,65AXIAL-CIRCLIP 25X1,65
-
779233003100 SLIDING GEAR 3 RD.SLIDING GEAR 3 RD.
-
859033030000 STOP DISC 25,2X32X1,5STOP DISC 25,2X32X1,5
-
954833004100 IDLER GEAR 4 TH.IDLER GEAR 4 TH.
-
100405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
1154833002300 IDLER GEAR 2 ND.IDLER GEAR 2 ND.
-
1277233015000 DISK 20,2X32X1,3DISK 20,2X32X1,3
-
130625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
1475030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
150019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
-
160625160041 BALL BEARING TM 16004 C4BALL BEARING TM 16004 C4
-
1777233088000 SPACER SHIM 21X42X0.2SPACER SHIM 21X42X0.2
