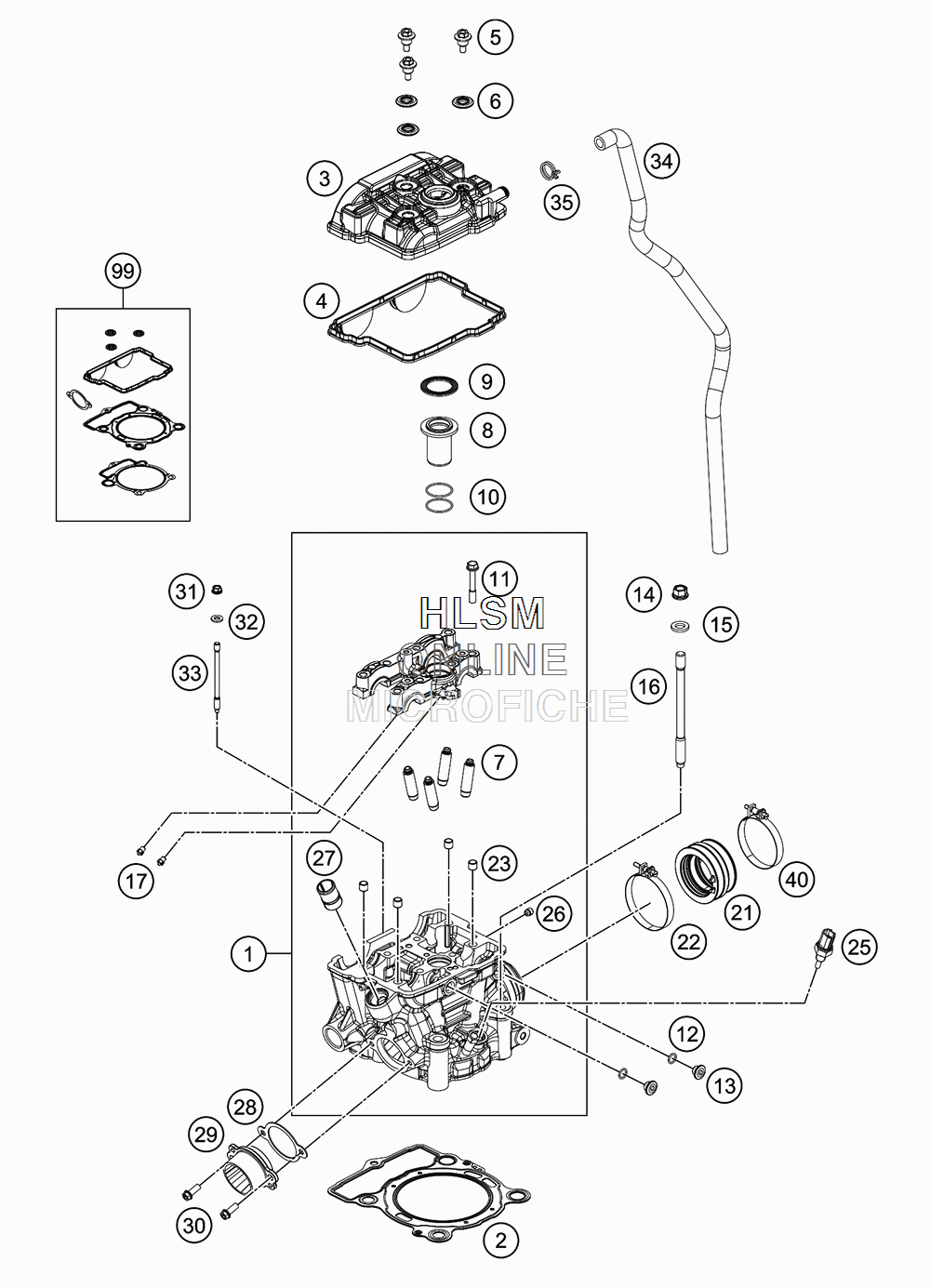

CYLINDER HEAD для Ktm 350 SX-F - 2018 года выпуска`
-
№АртикулНазвание
-
179236020044 CYLINDER HEAD CPL.CYLINDER HEAD CPL.
-
279230036086 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
37723605200033 VALVE COVERVALVE COVER
-
479236053000 VALVE COVER GASKETVALVE COVER GASKET
-
577336054150 VALVE COVER SCREWVALVE COVER SCREW
-
677036054150 RUBBER GASKET FOR SCREWRUBBER GASKET FOR SCREW
-
777236025000 VALVE GUIDEVALVE GUIDE
-
877236075000 INSERT SPARK-PLUG SHAFTINSERT SPARK-PLUG SHAFT
-
977336053050 GASKET SPARK-PLUG SHAFTGASKET SPARK-PLUG SHAFT
-
100770260015 O-RING 1,5X26O-RING 1,5X26
-
1177330067142 HH COLLAR SCREW M7X1X42HH COLLAR SCREW M7X1X42
-
1207700900151 O-RING 9X1,5 V80 SHO-RING 9X1,5 V80 SH
-
1377236080100 SCREW PLUGSCREW PLUG
-
1477336088210 COLLAR NUT M10X1,25 SW13COLLAR NUT M10X1,25 SW13
-
1577336089010 WASHER 19X10,5X2,5WASHER 19X10,5X2,5
-
1679230044000 STUD BOLT M10X1,25STUD BOLT M10X1,25
-
1760030063050 OIL JET 50OIL JET 50
-
2179236044100 RUBBER CUPRUBBER CUP
-
2261036047000 HOSE CLAMP GEMI 63MMHOSE CLAMP GEMI 63MM
-
2377036090000 DOWEL(BUSH BRIDGE)7/9/8DOWEL(BUSH BRIDGE)7/9/8
-
2579435047000 TEMPERATUR SENSOR WATERTEMPERATUR SENSOR WATER
-
2659030296000 SCREW PLUGSCREW PLUG
-
2758030010200 SCREW IN NOZZLE M20X1,5SCREW IN NOZZLE M20X1,5
-
2877236041000 GASKET EXHAUST FLANGEGASKET EXHAUST FLANGE
-
2977236139000 ENGINEFLANGEENGINEFLANGE
-
300025060166S HH COLLAR SCREW M6X16 ISA 30HH COLLAR SCREW M6X16 ISA 30
-
3177336088106 COLLAR NUT M6X1 SW8COLLAR NUT M6X1 SW8
-
320125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
3379230043000 STUD BOLT M6STUD BOLT M6
-
3479030087000 ENGINE BREATHER TUBEENGINE BREATHER TUBE
-
3558431082300 CLAMP YDNAC 10173 (18MM)CLAMP YDNAC 10173 (18MM)
-
4077236048000 HOSE CLAMP GEMI 58MMHOSE CLAMP GEMI 58MM
-
9979230097100 CYL. GASKET SET 350 SX-F 16CYL. GASKET SET 350 SX-F 16
