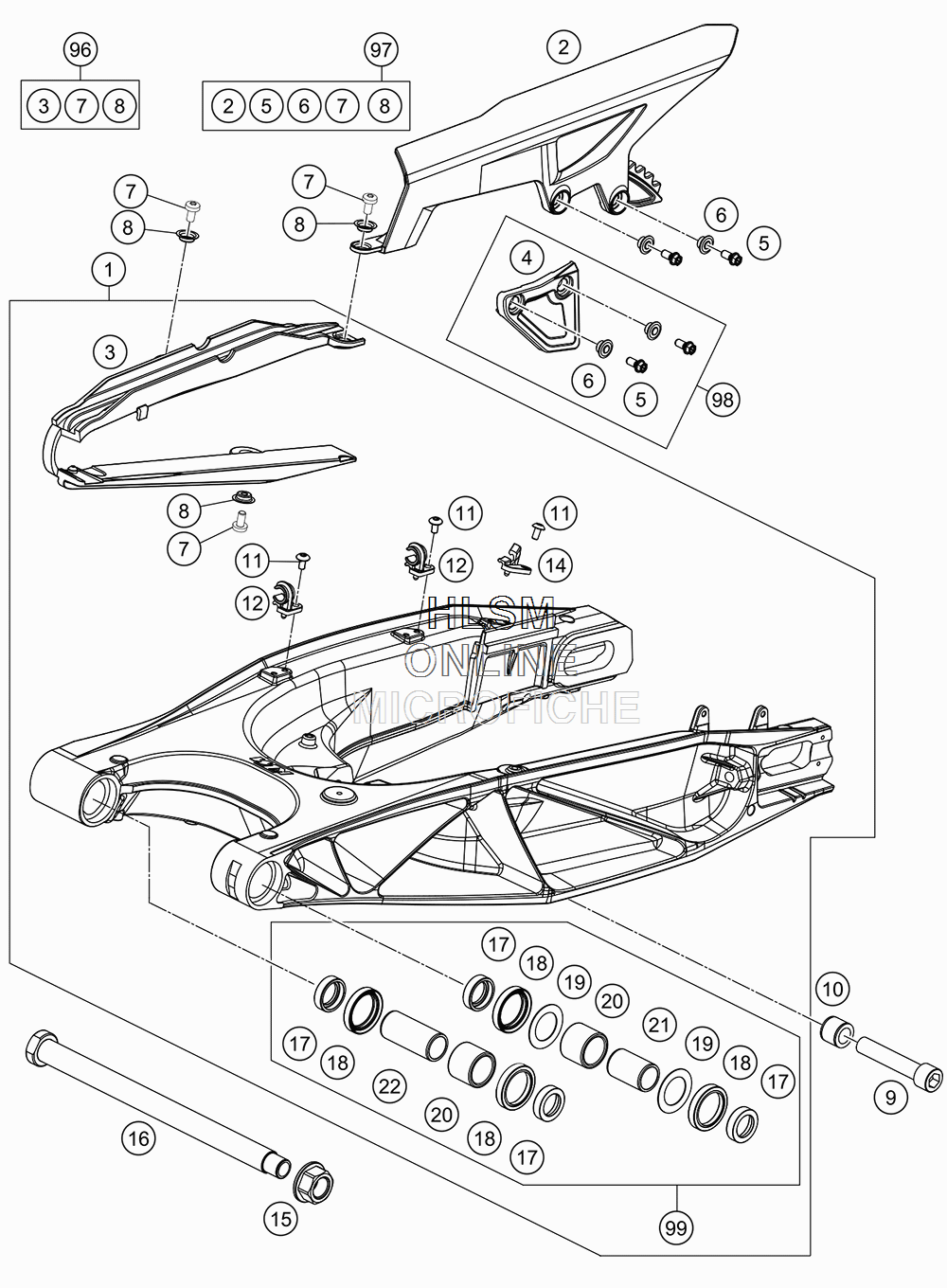

SWING ARM для Ktm 1090 ADVENTURE R - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    6070403004433 SWING ARM CPL.
    SWING ARM CPL.
  • 2
    60304061000 CHAIN GUARD
    CHAIN GUARD
  • 3
    60304066000 CHAIN SLIDING GUARD
    CHAIN SLIDING GUARD
  • 4
    60304070000 CHAIN GUIDE
    CHAIN GUIDE
  • 5
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 6
    50308053000 BUSH FOR SPOILER 6X11X16X7,5
    BUSH FOR SPOILER 6X11X16X7,5
  • 7
    0018050103 INT. TORX OVAL HEAD M 5X10 8.8
    INT. TORX OVAL HEAD M 5X10 8.8
  • 8
    46104066050 BUSH FOR CHAINSLIDER GUARD 02
    BUSH FOR CHAINSLIDER GUARD 02
  • 9
    60004017000 SCREW M14X1,5 L=73MM
    SCREW M14X1,5 L=73MM
  • 10
    60004030151 BUSHING MONOSHOCK SOCKET 05
    BUSHING MONOSHOCK SOCKET 05
  • 11
    78105081010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 11
    78105081010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 14
    60142126000 REAR CABLE ROUTING FOR ABS SENSOR
    REAR CABLE ROUTING FOR ABS SENSOR
  • 15
    60004038200 COLLAR NUT M19X1,5 SW=27MM
    COLLAR NUT M19X1,5 SW=27MM
  • 16
    69004037244 SWING ARM BOLT
    SWING ARM BOLT
  • 17
    60004034000 BUCKET F. SHAFT SEAL RING
    BUCKET F. SHAFT SEAL RING
  • 18
    0760304073 SHAFT SEAL RING 30X40X7
    SHAFT SEAL RING 30X40X7
  • 19
    60004033000 STOP DISK
    STOP DISK
  • 20
    60004031000 NEEDLE BUSH HK2526B
    NEEDLE BUSH HK2526B
  • 21
    60004032000 INNER RING JR20X25X38,5
    INNER RING JR20X25X38,5
  • 22
    69004032000 INNER RING JR 20X25X56,5
    INNER RING JR 20X25X56,5
  • 96
    60304066010 CHAIN GUARD KIT 13-14
    CHAIN GUARD KIT 13-14
  • 97
    60304060010 CHAIN PROTECTION KIT 13-14
    CHAIN PROTECTION KIT 13-14
  • 98
    60304070010 CHAIN GUIDE KIT 1190 ADV
    CHAIN GUIDE KIT 1190 ADV
  • 99
    69004230010 SWING ARM REP. KIT
    SWING ARM REP. KIT
