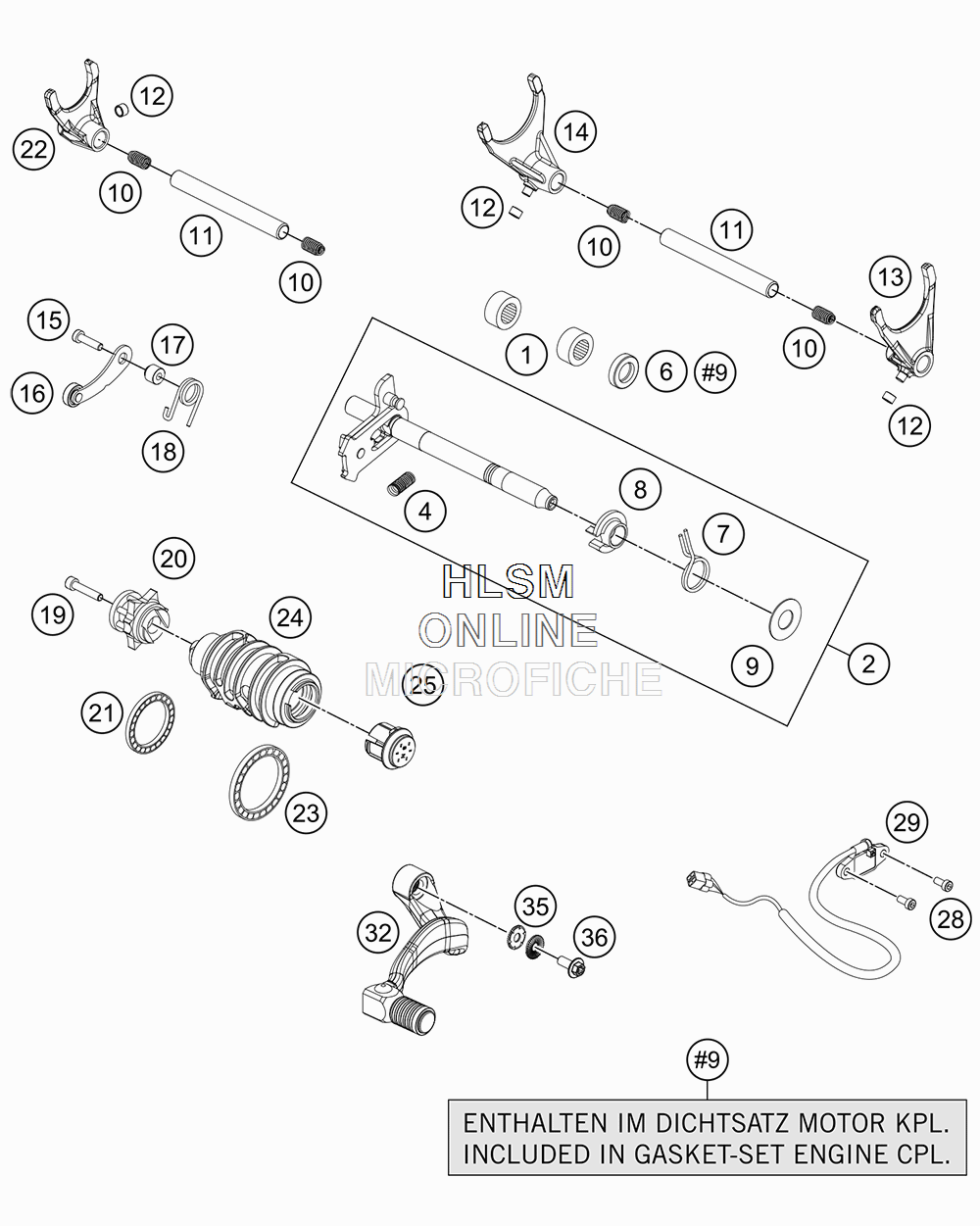

SHIFTING MECHANISM для Ktm 1090 ADVENTURE R - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    54632095000 NEEDLE BEAR.HK 1412 14X20X12
    NEEDLE BEAR.HK 1412 14X20X12
  • 2
    61234005333 SHIFT SHAFT CPL.
    SHIFT SHAFT CPL.
  • 4
    56534113100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 6
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 7
    61234114000 RETURNSPRING 2MM
    RETURNSPRING 2MM
  • 8
    54634120000 SPRING GUIDE
    SPRING GUIDE
  • 9
    54634150000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 10
    58038023200 PRESSURE SPRING 0,9MM
    PRESSURE SPRING 0,9MM
  • 11
    59034020000 SHIFT RAIL 11,8X105MM
    SHIFT RAIL 11,8X105MM
  • 12
    50334018100 SHIFTING ROLLER 6X8X5,2
    SHIFTING ROLLER 6X8X5,2
  • 13
    61234002100 SHIFT FORK 2-3 GEAR
    SHIFT FORK 2-3 GEAR
  • 14
    61234001000 SHIFTING FORK
    SHIFTING FORK
  • 15
    0024060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 16
    61434024000 LOCKING LEVER CPL.
    LOCKING LEVER CPL.
  • 17
    75034052000 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 18
    61234023000 SPRING - LOCKING LEVER
    SPRING - LOCKING LEVER
  • 19
    0912060309 AH SCREW DIN0912-M 6X30 12.9
    AH SCREW DIN0912-M 6X30 12.9
  • 20
    61434015000 SHIFT LOCA TING DRUM CPL.
    SHIFT LOCA TING DRUM CPL.
  • 21
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 22
    61234003200 SHIFT FORK 5-6 GEAR
    SHIFT FORK 5-6 GEAR
  • 23
    0625068080 GROOVED BALL BEARING 6808 JRC3
    GROOVED BALL BEARING 6808 JRC3
  • 24
    60434012001 SHIFTING DRUM 6G
    SHIFTING DRUM 6G
  • 25
    79234012020 MAGNET HOLDER CPL.
    MAGNET HOLDER CPL.
  • 28
    0984050143S CYL. SCREW DIN6912 M5X14 8.8
    CYL. SCREW DIN6912 M5X14 8.8
  • 29
    60411023000 GEAR POSITION SENSOR
    GEAR POSITION SENSOR
  • 32
    6003403104433S SHIFTING LEVER CPL.
    SHIFTING LEVER CPL.
  • 35
    50233041500 PAIR NORDLOCK WASHER M6
    PAIR NORDLOCK WASHER M6
  • 36
    0024060156S HH COLLAR SCREW M6X15 TORX30
    HH COLLAR SCREW M6X15 TORX30
