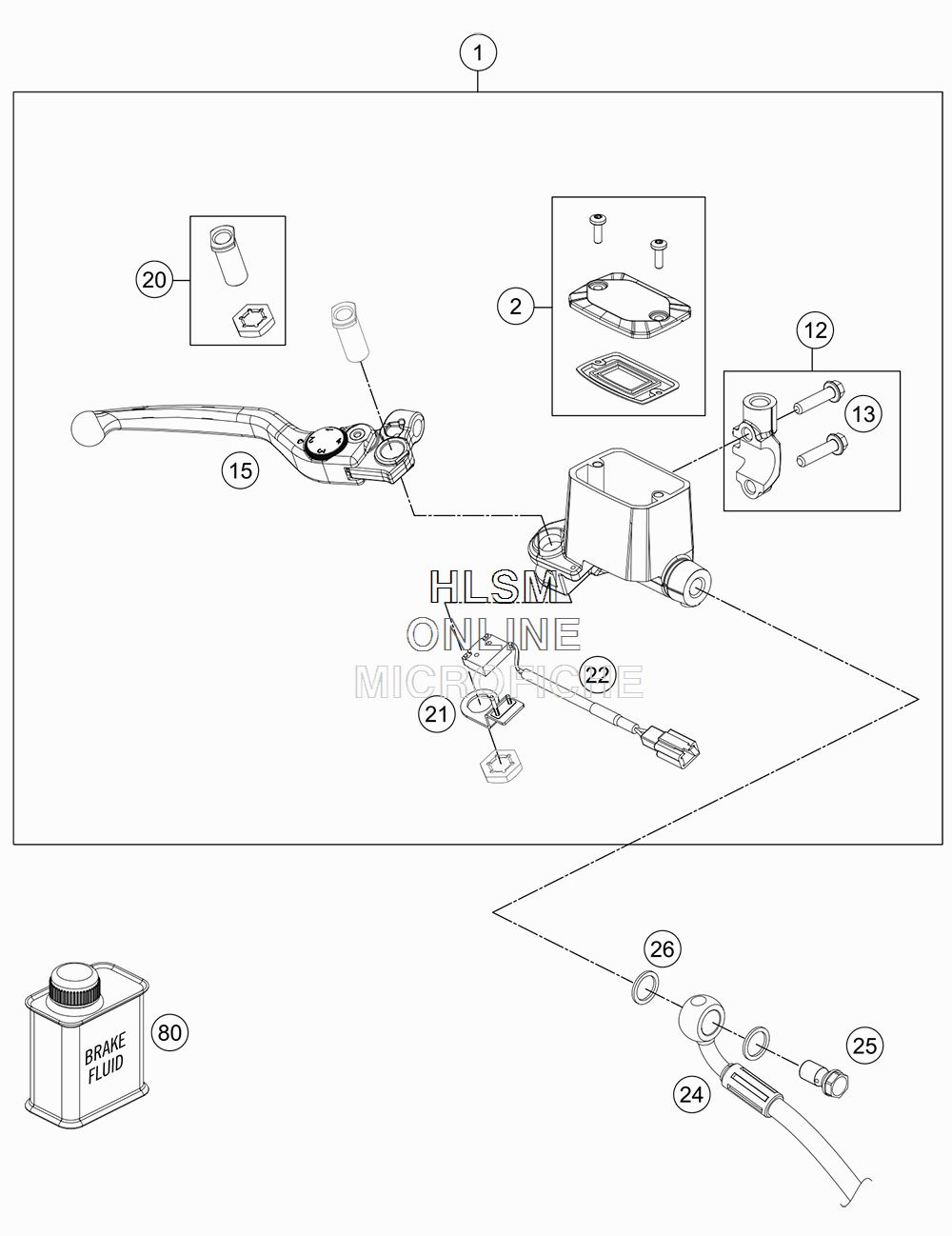

FRONT BRAKE CONTROL для Ktm 1090 ADVENTURE R - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    6061300113330 HAND BRAKE CYLINDER ASSY BLACK
    HAND BRAKE CYLINDER ASSY BLACK
  • 2
    76013012000 COVER HAND BRAKE CYLINDER CPL.
    COVER HAND BRAKE CYLINDER CPL.
  • 12
    76013005000 CLAMP CPL.
    CLAMP CPL.
  • 13
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 15
    6061300200030 HAND BRAKE LEVER LOOSE
    HAND BRAKE LEVER LOOSE
  • 20
    76013006000 LEVER SCREW CPL.
    LEVER SCREW CPL.
  • 21
    76011040000 BRACKET F. BRAKE LIGHT SWITCH
    BRACKET F. BRAKE LIGHT SWITCH
  • 22
    60611050000 BRAKE LIGHT SWITCH FRONT
    BRAKE LIGHT SWITCH FRONT
  • 24
    60642003000 HOSE HAND BRAKE CYLINDER
    HOSE HAND BRAKE CYLINDER
  • 25
    62113020100 HOLL. SCREW M10X1X19.5
    HOLL. SCREW M10X1X19.5
  • 26
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 80
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
