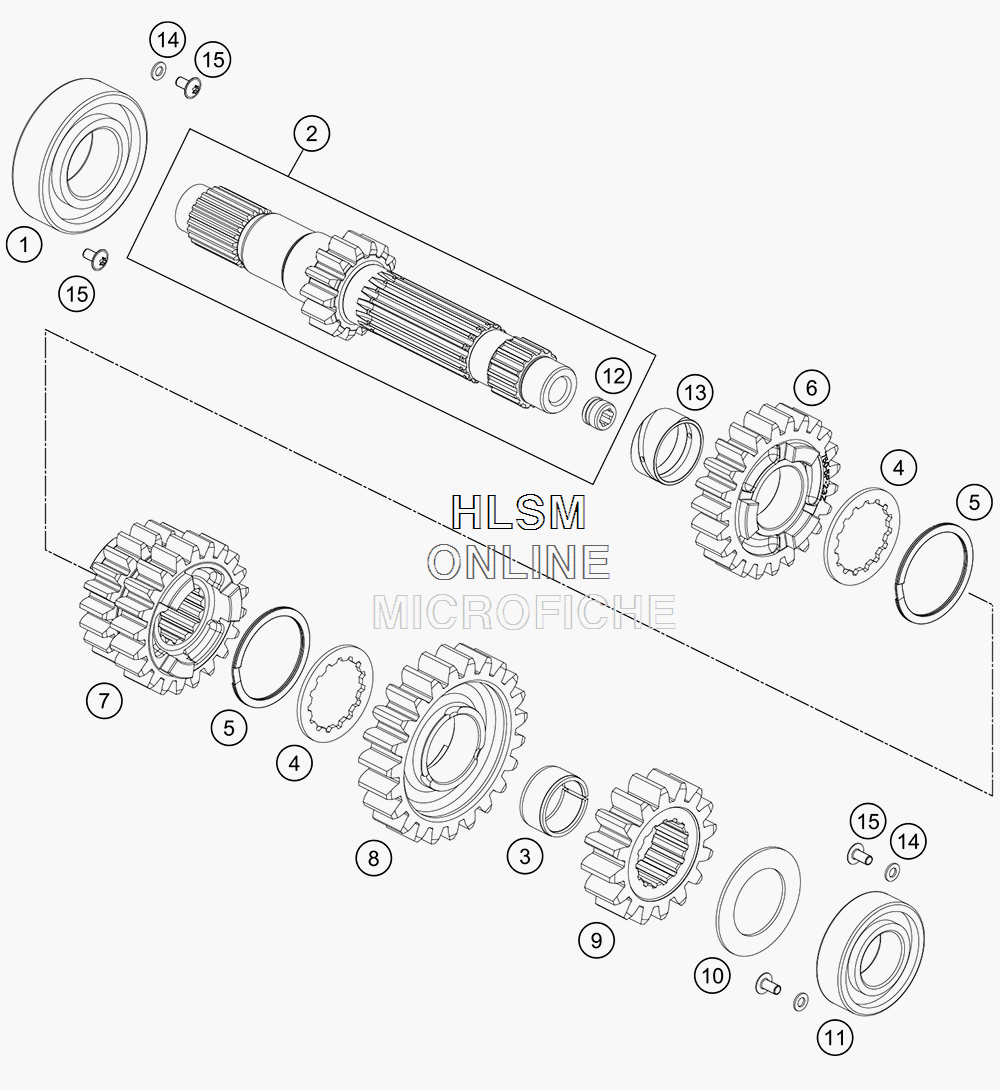

TRANSMISSION - MAIN SHAFT для Ktm 690 SMCR - 2017 года выпуска`
-
№АртикулНазвание
-
106252858161 BALL BEARING 58/28 C4 NBALL BEARING 58/28 C4 N
-
276233001000 MAIN SHAFTMAIN SHAFT
-
30405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
456533016300 STOP DISK 22,7 X 32 X 1,5STOP DISK 22,7 X 32 X 1,5
-
50471025000 CIRCLIP D25CIRCLIP D25
-
675033105000 IDLER GEAR 5.G.IDLER GEAR 5.G.
-
775033003020 3/4TH GEAR MAINSHAFT3/4TH GEAR MAINSHAFT
-
875033006000 IDLER 6. GEARIDLER 6. GEAR
-
975033002000 SOLID GEAR 2.G.SOLID GEAR 2.G.
-
1059033080000 SHIM 20X32X1SHIM 20X32X1
-
110625060044 BALL BEARING 6004 DDUN C4BALL BEARING 6004 DDUN C4
-
1277333001160 GUIDE BUSHINGGUIDE BUSHING
-
1376233022200 BUSHING 25X28X13BUSHING 25X28X13
-
140021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
15073800501002 PAN HEAD SCREW M5X10 TX25PAN HEAD SCREW M5X10 TX25
