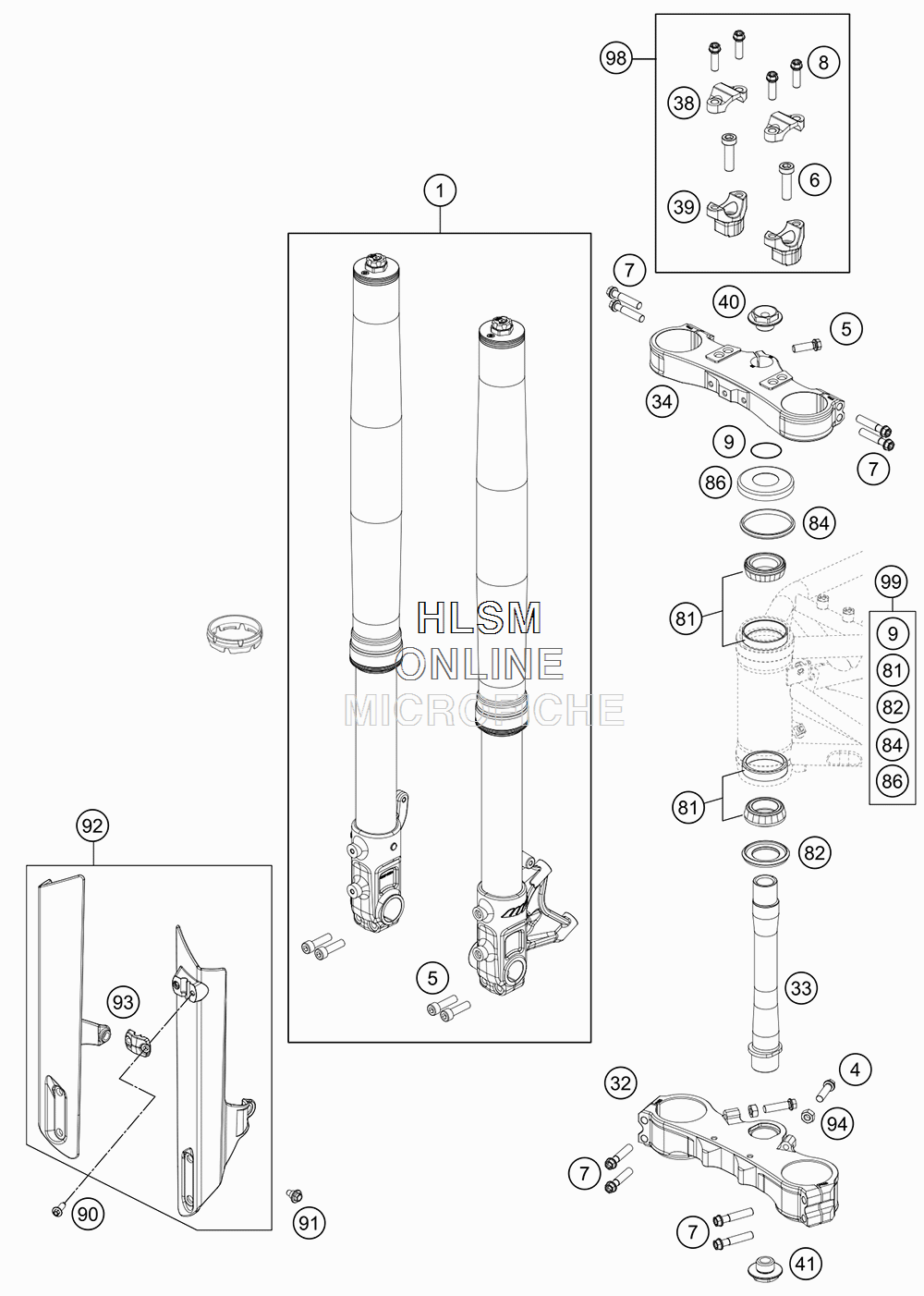

FRONT FORK- TRIPLE CLAMP для Ktm 690 SMCR - 2017 года выпуска`
-
№АртикулНазвание
-
114188N1201 FORKFORK
-
40933080253 HH SCREW DIN0933-M 8X25HH SCREW DIN0933-M 8X25
-
50025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
60032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
70025080406 HH COLLAR SCREW M8X40HH COLLAR SCREW M8X40
-
80025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
90770025035 O-RING 25X3,55 NBR70O-RING 25X3,55 NBR70
-
327650113113504 BOTTOM TRIPLE CLAMPBOTTOM TRIPLE CLAMP
-
3376501033000 FORK TUBE L=237MMFORK TUBE L=237MM
-
347650113413504 TOP TRIPLE CLAMPTOP TRIPLE CLAMP
-
3877201038000 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
3959401039042 HANDLEB.SUPP. D=28MM H=42MMHANDLEB.SUPP. D=28MM H=42MM
-
4054801036000 STEER.HEAD SCREW M20X1,5 WS=27STEER.HEAD SCREW M20X1,5 WS=27
-
4154801036100 STE.HEAD SCR. M20X1,5 WS=27 SLSTE.HEAD SCR. M20X1,5 WS=27 SL
-
8154201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8277701084000 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
900017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
9159001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
927650109410033 FORK PROTECT . L/S +R/S BLACK MFORK PROTECT . L/S +R/S BLACK M
-
937650108510033 CLAMP F . SPEED.CABLE BLACK M.CLAMP F . SPEED.CABLE BLACK M.
-
940934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
9859401039010 HANDLEBAR SUPPOR T KITHANDLEBAR SUPPOR T KIT
-
9900050000930 STEARING HEAD REP. KITSTEARING HEAD REP. KIT
