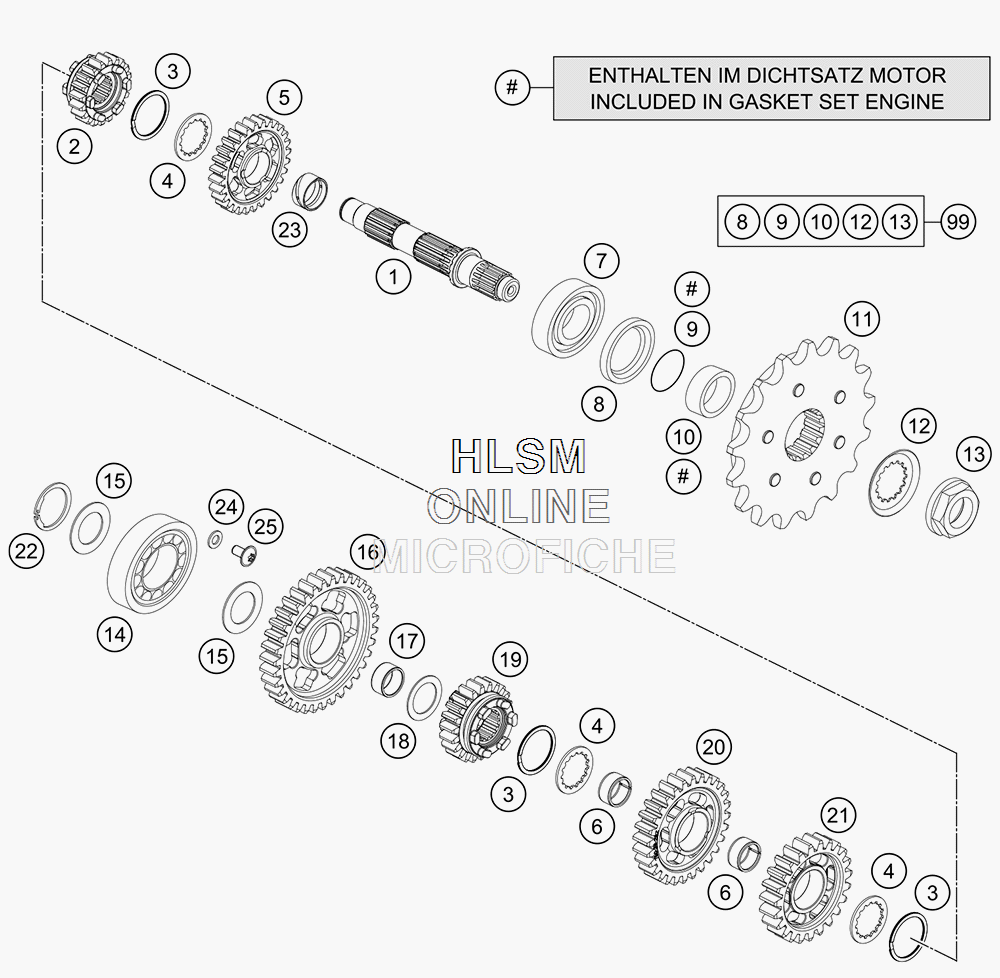

TRANSMISSION II - COUNTERSHAFT для Ktm 690 SMCR - 2017 года выпуска`
-
№АртикулНазвание
-
176233010000 COUNTER SHAFTCOUNTER SHAFT
-
275033016000 SLIDING GEAR 6TH G.SLIDING GEAR 6TH G.
-
30471025000 CIRCLIP D25CIRCLIP D25
-
456533016300 STOP DISK 22,7 X 32 X 1,5STOP DISK 22,7 X 32 X 1,5
-
576233012100 IDLER 2. GEARIDLER 2. GEAR
-
60405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
749030023100 CYL.ROLLER BEARING NJ205 C4CYL.ROLLER BEARING NJ205 C4
-
80760324773 SHAFT SEAL R. 32X47X7BSL VITONSHAFT SEAL R. 32X47X7BSL VITON
-
90770020220 O-RING 25,12X1,78 NBR70O-RING 25,12X1,78 NBR70
-
1054633014100 SPACER BUSHING 12MMSPACER BUSHING 12MM
-
1158033029115 ENGINE SPROCKET 15 T DAMPEDENGINE SPROCKET 15 T DAMPED
-
1158033029116 ENGINE SPROCKET 16 T DAMPEDENGINE SPROCKET 16 T DAMPED
-
1158033029117 ENGINE SPROCKET 17 T DAMPEDENGINE SPROCKET 17 T DAMPED
-
1251033031000 LOCK WASHERLOCK WASHER
-
1358033032200 SPROCKET NUT LC4SPROCKET NUT LC4
-
140625060044 BALL BEARING 6004 DDUN C4BALL BEARING 6004 DDUN C4
-
1559033080000 SHIM 20X32X1SHIM 20X32X1
-
1675033011000 IDLER GEAR 1ST GEARIDLER GEAR 1ST GEAR
-
1756533098000 NEEDLE BEARING K22X26X13HNEEDLE BEARING K22X26X13H
-
1854603036000 STOP DISK 22,2X31,7X1STOP DISK 22,2X31,7X1
-
1975033015000 5TH GEAR COUNTERSHAFT5TH GEAR COUNTERSHAFT
-
2075033013000 IDLER GEAR 3.GIDLER GEAR 3.G
-
2175033014000 IDLER GEAR 4.GIDLER GEAR 4.G
-
220471200120 CIRCLIP DIN471 20X1,2CIRCLIP DIN471 20X1,2
-
2376233022200 BUSHING 25X28X13BUSHING 25X28X13
-
240021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
25073800501002 PAN HEAD SCREW M5X10 TX25PAN HEAD SCREW M5X10 TX25
-
9900050000946 COUNTER SHAFT REP.KITCOUNTER SHAFT REP.KIT
