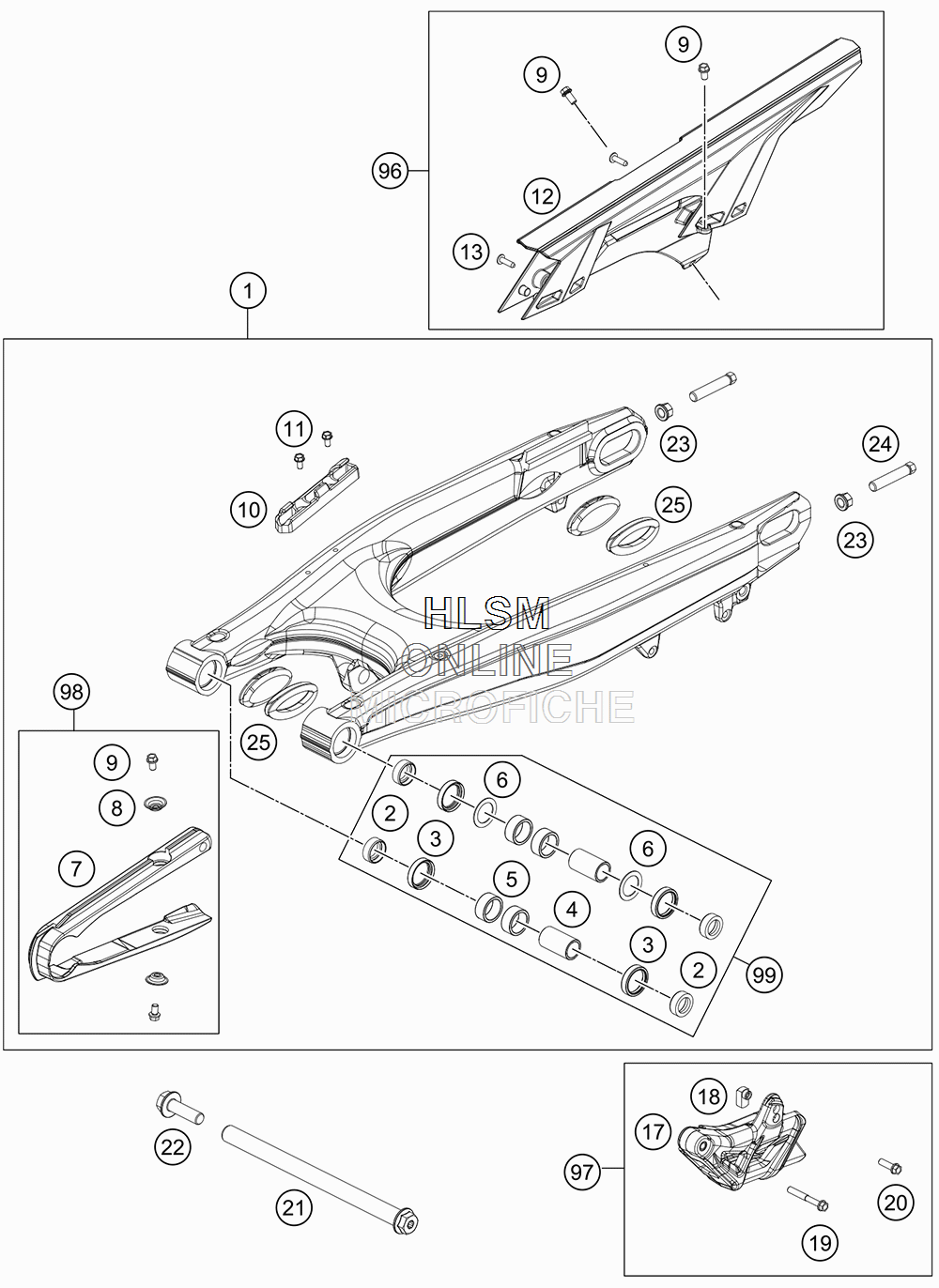

SWING ARM для Ktm 690 SMCR - 2017 года выпуска`
-
№АртикулНазвание
-
176504030144 SWING ARM CPL.SWING ARM CPL.
-
276504034000 BUCKET FOR SHAFT SEAL RINGBUCKET FOR SHAFT SEAL RING
-
30760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
459404032000 BEARING SLEEVE 17X22X38,7BEARING SLEEVE 17X22X38,7
-
50618222812 NEEDLEBEAR HK2212V 22/28/12 MBNEEDLEBEAR HK2212V 22/28/12 MB
-
654603036000 STOP DISK 22,2X31,7X1STOP DISK 22,2X31,7X1
-
776504066000 CHAIN SLIDING GUARDCHAIN SLIDING GUARD
-
877304066050 BUSHING F. CHAIN SLIDING PR.07BUSHING F. CHAIN SLIDING PR.07
-
959009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1076504042000 BRAKE LINE GUIDE 08BRAKE LINE GUIDE 08
-
110009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
1276504060000 CHAIN GUARDCHAIN GUARD
-
130081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
1778004070100 CHAIN GUIDE CPL.CHAIN GUIDE CPL.
-
1877304070030 INSERTION NUT F. CHAIN GUIDEINSERTION NUT F. CHAIN GUIDE
-
190025060456 HH COLLAR SCREW M6X45HH COLLAR SCREW M6X45
-
200025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
2175304037044 SWINGARM BOLT L=246 M12X1,5SWINGARM BOLT L=246 M12X1,5
-
2276504038000 SPECIAL SCREW M12X40 SW19SPECIAL SCREW M12X40 SW19
-
2358414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
2450304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
2558404041000 CLOSING COVER SWINGARM SMCLOSING COVER SWINGARM SM
-
9676504060010 CHAIN PROTECTION KITCHAIN PROTECTION KIT
-
9777304070310 CHAIN GUIDE KIT REARCHAIN GUIDE KIT REAR
-
9876504066010 CHAIN GUARD KITCHAIN GUARD KIT
-
9976504230010 SWINGARM REPAIR KITSWINGARM REPAIR KIT
