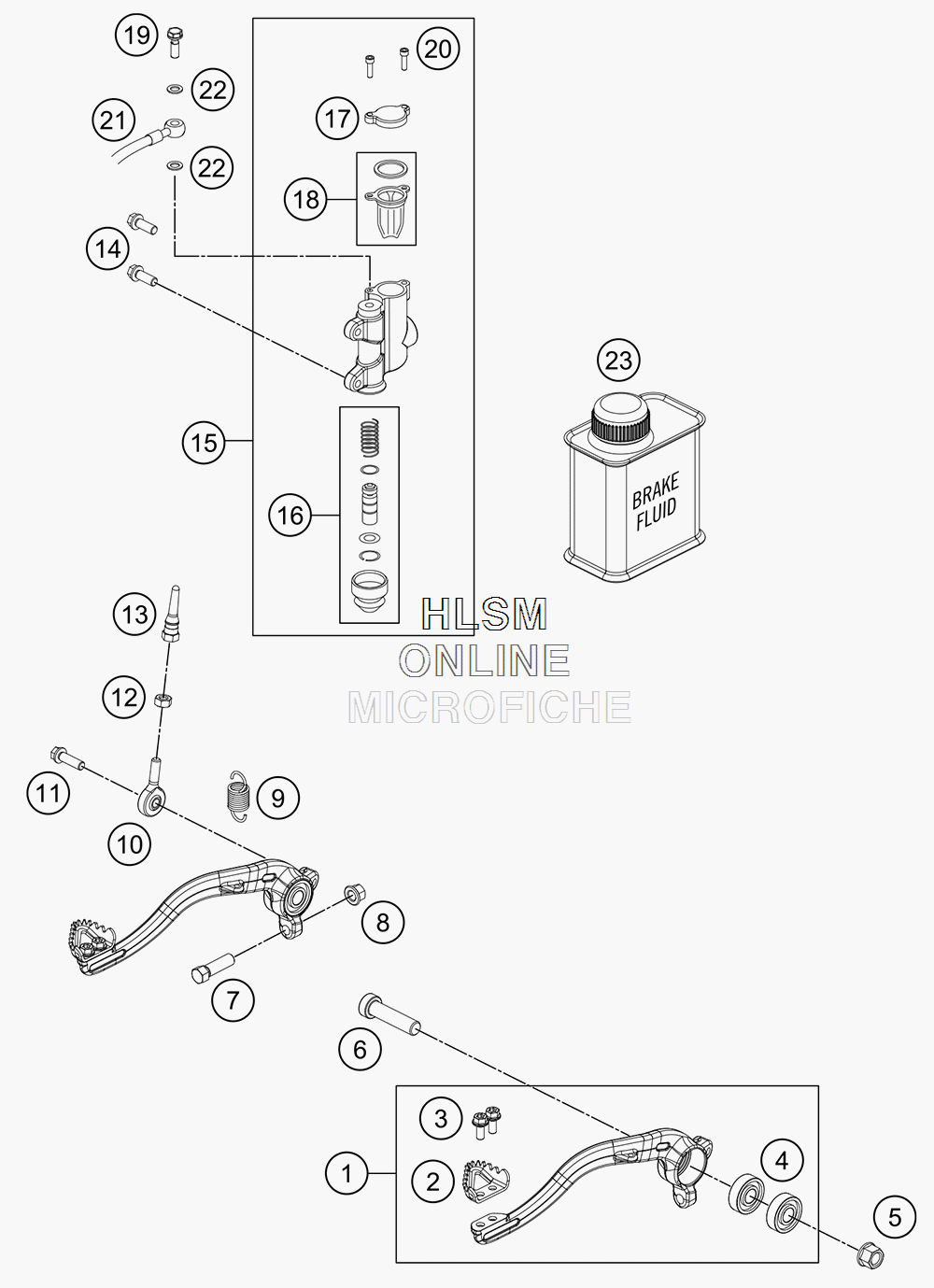

REAR BRAKE CONTROL для Ktm 65 SX - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    46213050044 FOOT BRAKE LEVER 65SX CPL.
    FOOT BRAKE LEVER 65SX CPL.
  • 2
    54813051000 STEP PLATE FOR BRAKE LEVER
    STEP PLATE FOR BRAKE LEVER
  • 3
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 4
    0625060002 BALL BEARING SKF 6000-2RS1
    BALL BEARING SKF 6000-2RS1
  • 5
    54630044000 COLLAR NUT M10
    COLLAR NUT M10
  • 6
    0032100406S AH-COLLAR SCREW M10X40 ISA45
    AH-COLLAR SCREW M10X40 ISA45
  • 7
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 8
    46030045000 COLLAR NUT M8 WS=10
    COLLAR NUT M8 WS=10
  • 9
    54603062100 RETURN SPRING FOR BRAKE LEVER
    RETURN SPRING FOR BRAKE LEVER
  • 10
    46213055000 SWIVEL HEAD KA6 INNOX
    SWIVEL HEAD KA6 INNOX
  • 11
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 12
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 13
    46213056000 PUSH ROD
    PUSH ROD
  • 14
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 15
    4701306030001S FOOT BRAKE CYL. REAR CPL. D=12
    FOOT BRAKE CYL. REAR CPL. D=12
  • 16
    47013061100 REP. SET PISTON REAR D=12 2004
    REP. SET PISTON REAR D=12 2004
  • 17
    47013062000 CYLINDER COVER REAR
    CYLINDER COVER REAR
  • 18
    47013063000 GASKET CYLINDER COVER REAR
    GASKET CYLINDER COVER REAR
  • 19
    47013025000 HOLLOW SCREW BRAKE CYLINDER
    HOLLOW SCREW BRAKE CYLINDER
  • 20
    0912040103 AH.SCREW DIN0912-M 4X10
    AH.SCREW DIN0912-M 4X10
  • 21
    46213070000 BRAKE HOSE REAR 65 SX
    BRAKE HOSE REAR 65 SX
  • 22
    0770080019 O-RING 8,00X1,00 FORMULA
    O-RING 8,00X1,00 FORMULA
  • 23
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
