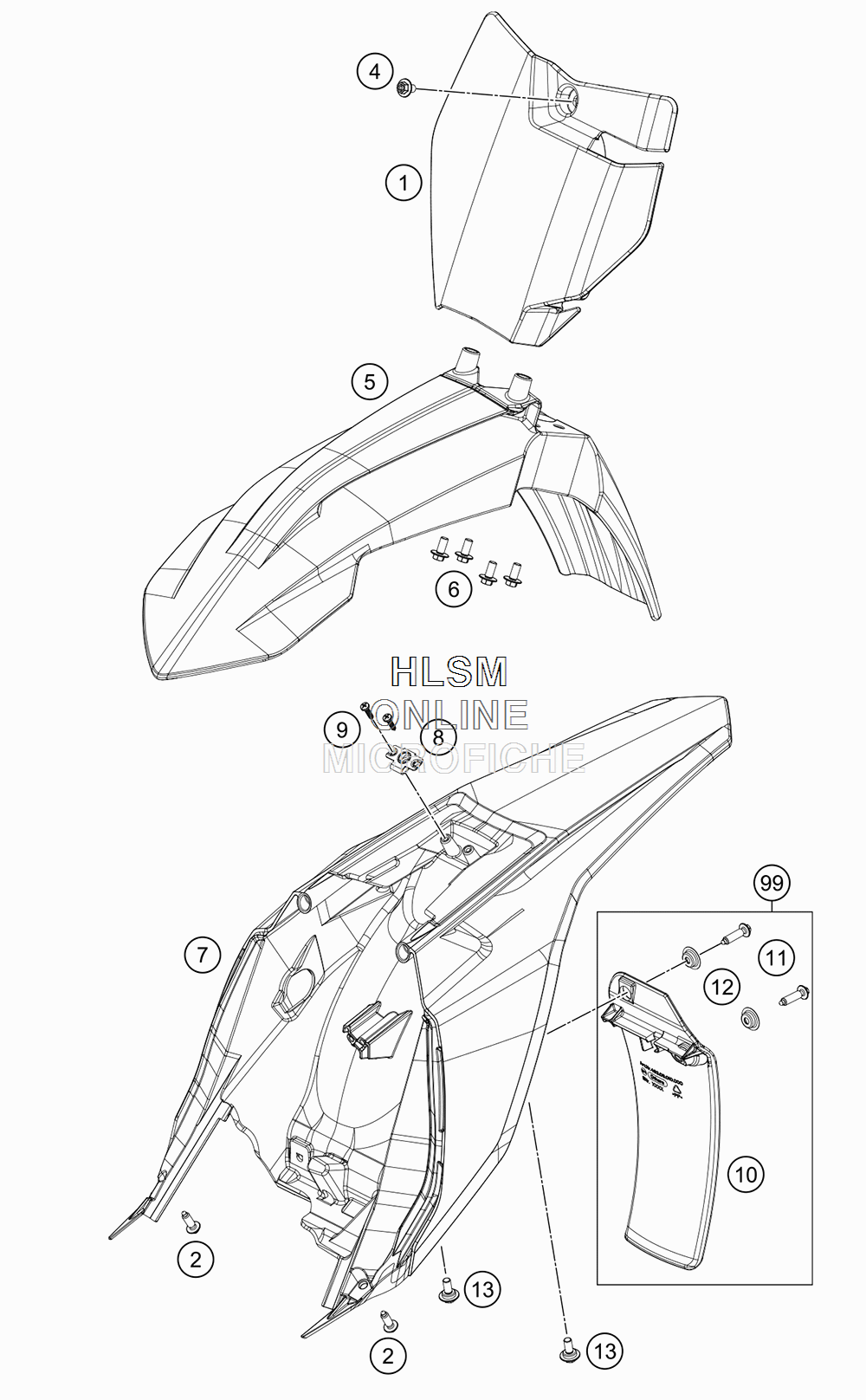

MASK FENDER для Ktm 65 SX - 2017 года выпуска
-
№АртикулНазвание
-
14630800700028 NUMBER PLATE WHITENUMBER PLATE WHITE
-
20017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
-
40024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
546308010000EB FRONT FENDER ORANGEFRONT FENDER ORANGE
-
60024060136 HH COLLAR SCREW M6X13HH COLLAR SCREW M6X13
-
74630801300028B REAR PARTREAR PART
-
845007040050 QUICK RELEASE LATCHPLATEQUICK RELEASE LATCHPLATE
-
90981350133 SHEET MET.SCR.DIN7981-3,5X13SHEET MET.SCR.DIN7981-3,5X13
-
1046306010000 SPLASH PROTECTIONSPLASH PROTECTION
-
110017060255 EJOT PT SCREW K60X25-Z SW6EJOT PT SCREW K60X25-Z SW6
-
1246104066050 BUSH FOR CHAINSLIDER GUARDBUSH FOR CHAINSLIDER GUARD
-
1383008000015 SPECIAL SCREW M6X15X3SPECIAL SCREW M6X15X3
-
9946306010010 SPLASH PROTECTION KITSPLASH PROTECTION KIT
