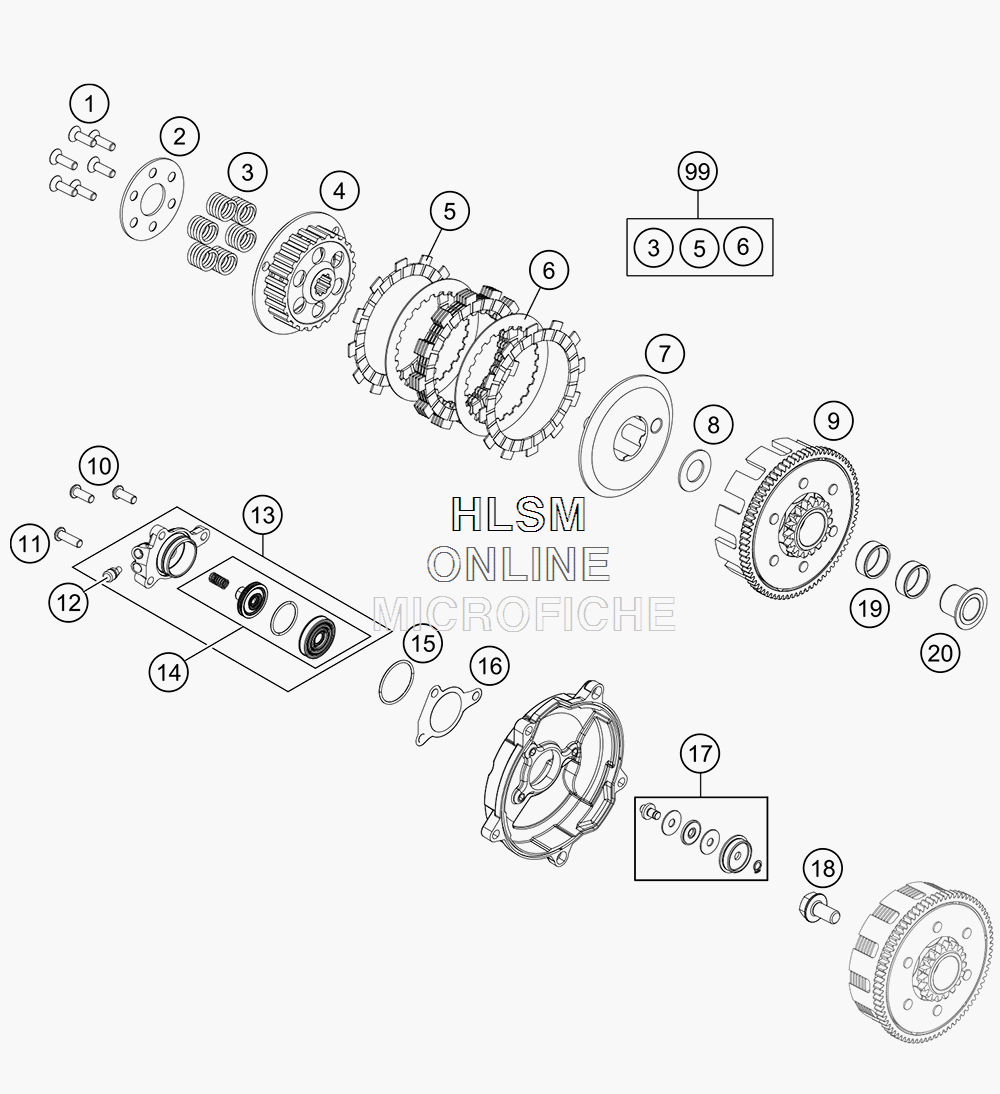

CLUTCH для Ktm 65 SX - 2017 года выпуска`
-
№АртикулНазвание
-
10991060202 FLAT HEAD DIN7991-M 6X20FLAT HEAD DIN7991-M 6X20
-
246032006000 SPRING RETAINER 25X63,5X2SPRING RETAINER 25X63,5X2
-
346232005044 CLUTCH SPRING KITCLUTCH SPRING KIT
-
446232002000 CLUTCH HUBCLUTCH HUB
-
546032011044 LINING DISK KITLINING DISK KIT
-
646032010000 INTERMEDIATE DISK STEELINTERMEDIATE DISK STEEL
-
746232003000 CLUTCH PRESSURE CAPCLUTCH PRESSURE CAP
-
846232012000 STOP DISC 17,2X32X1,5STOP DISC 17,2X32X1,5
-
946232000044 PRIMARY DRIVE WITH CLUTCH CAGEPRIMARY DRIVE WITH CLUTCH CAGE
-
100738060161 FLAT HEAD SCREW ISO7380 M6X16FLAT HEAD SCREW ISO7380 M6X16
-
110738060201 FLAT HEAD SCREW ISO7380 M6X20FLAT HEAD SCREW ISO7380 M6X20
-
1247132064000 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
1347132061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
1447132066000 PISTON CPL.PISTON CPL.
-
150770031018 O-RING 31,47X1,78O-RING 31,47X1,78
-
1659032065000 GASKET FOR SLAVE CYLINDERGASKET FOR SLAVE CYLINDER
-
1746232057000 PRESSURE PIECE CPL.PRESSURE PIECE CPL.
-
1846132019000 HH COLLAR SCREW M10X20HH COLLAR SCREW M10X20
-
190405222610 NEEDLE BEARING K 22X26X10 ANEEDLE BEARING K 22X26X10 A
-
2046232015000 INNER RING WITH COLLARINNER RING WITH COLLAR
-
9946232010010 CLUTCH KITCLUTCH KIT
