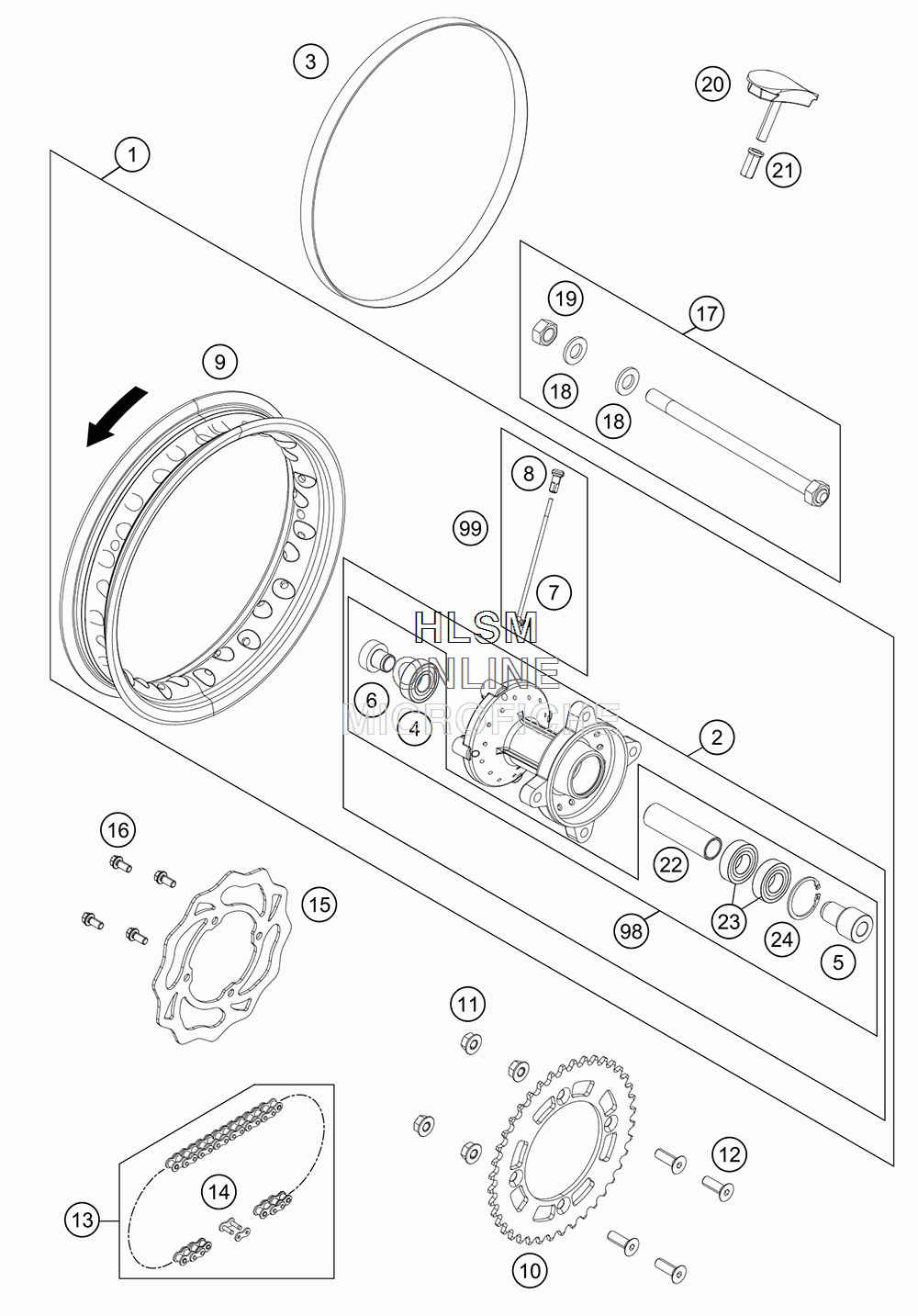

REAR WHEEL для Ktm 50 SX - 2017 года выпуска`
-
№АртикулНазвание
-
145210001544 REAR WHEEL 50SX/MINIREAR WHEEL 50SX/MINI
-
245210010144 REAR WHEEL HUB CPL.REAR WHEEL HUB CPL.
-
345009073000 RIM BAND 10" 22MMRIM BAND 10" 22MM
-
40625062028 BALL BEARING 6202-2RSH/C3BALL BEARING 6202-2RSH/C3
-
545210013100 SPACER BUSHING LEFT 2015SPACER BUSHING LEFT 2015
-
645210014000 SPACER BUSHING REAR R/SSPACER BUSHING REAR R/S
-
745210071101 SPOKE 3X101 C.113°SPOKE 3X101 C.113°
-
846210072000 SPOKE NIPPLE ALUSPOKE NIPPLE ALU
-
94521007010030 REAR RIM 10"X1.6 BLK. 2012REAR RIM 10"X1.6 BLK. 2012
-
1045210151038 SPROCKET 38-T 50SX ґ13SPROCKET 38-T 50SX ґ13
-
1045210151039 SPROCKET 39-T 50SX ґ13SPROCKET 39-T 50SX ґ13
-
1045210151040 SPROCKET 40-T 50SX ґ13SPROCKET 40-T 50SX ґ13
-
1045210151041 SPROCKET 41-T 50SX ґ13SPROCKET 41-T 50SX ґ13
-
1045210151042 SPROCKET 42-T 50SX ґ13SPROCKET 42-T 50SX ґ13
-
1154310086200 SELF LOCKING NUT M8SELF LOCKING NUT M8
-
120991080253 FLAT HEAD SCREW DIN7991-M 8X25FLAT HEAD SCREW DIN7991-M 8X25
-
1345110265104 RACING CHAIN 1/2X3/16" 50 SXRACING CHAIN 1/2X3/16" 50 SX
-
1445110266000 CONNECTING LINK 1/2X3/16" 90RSCONNECTING LINK 1/2X3/16" 90RS
-
1545209060000 BRAKE DISC FRONT JUN/SEN 09BRAKE DISC FRONT JUN/SEN 09
-
1659009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
1746010085044 AXLE CPL. 207MM M12X1AXLE CPL. 207MM M12X1
-
180125120003 FLAT WASHER DIN0125-A13FLAT WASHER DIN0125-A13
-
190934120103 HEXAGON NUT DIN0934-M12X1HEXAGON NUT DIN0934-M12X1
-
2045110090000 RIM LOCK CPL.RIM LOCK CPL.
-
2177110090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
2245210011100 BEARING DISTANCE TUBE 2015BEARING DISTANCE TUBE 2015
-
230625060037 GR.BALL BEAR. 6003-2RSH/C3HMTFGR.BALL BEAR. 6003-2RSH/C3HMTF
-
240472035150 CIRCLIP DIN0472-35X1,5CIRCLIP DIN0472-35X1,5
-
9845210015100 REAR WHEEL REP . KIT 50 SX 15REAR WHEEL REP . KIT 50 SX 15
-
9900050000969 SPOKE KIT REAR 10"SPOKE KIT REAR 10"
