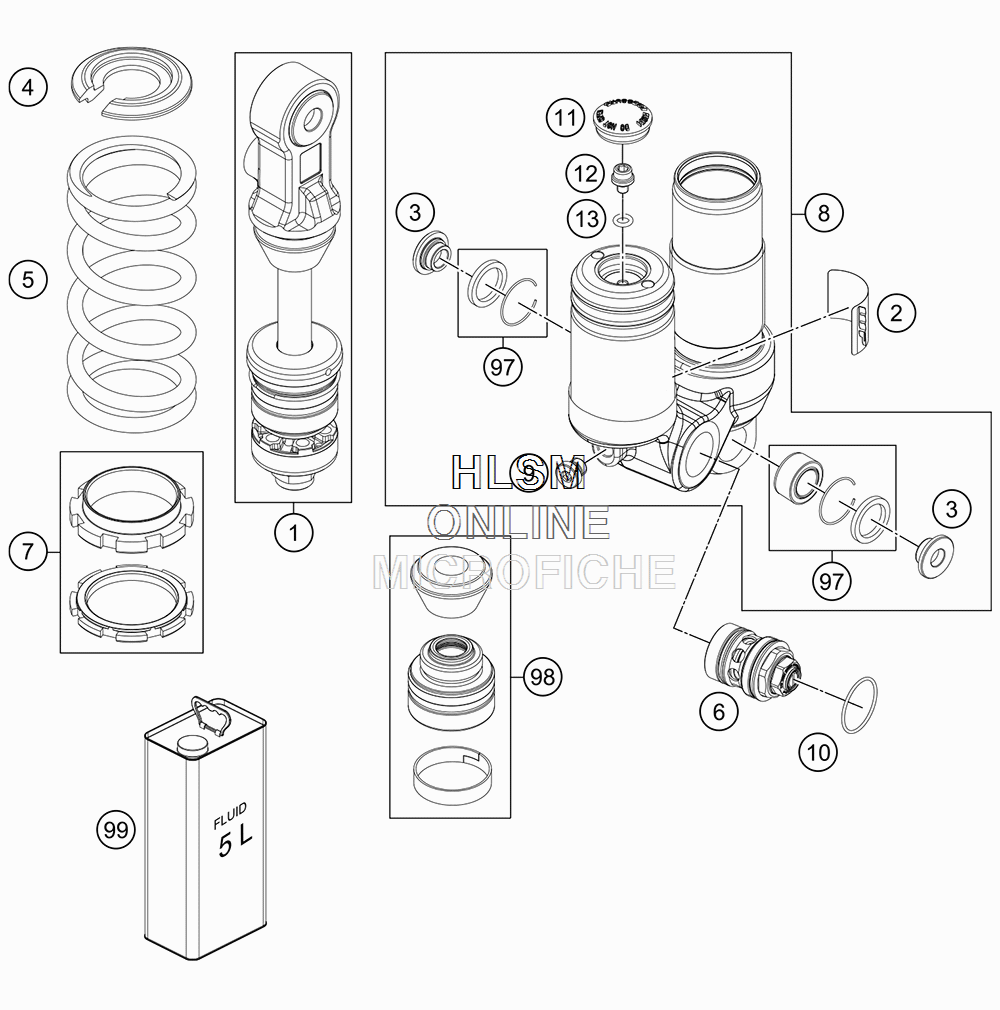

MONOSHOCK DISASSEMBLED для Ktm 50 SX - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    36120781S16 AXLECLAMP PART WITH PISTON ROD
    AXLECLAMP PART WITH PISTON ROD
  • 2
    52000173 STICKER WP W ARNING
    STICKER WP W ARNING
  • 3
    46180009 SPACER BUSHING KGW 10X22
    SPACER BUSHING KGW 10X22
  • 4
    36120386 SPRING RET. H=3, D=14,5
    SPRING RET. H=3, D=14,5
  • 5
    93010217S SHOCK SPRING 35N/MM - 130MM WHITE
    SHOCK SPRING 35N/MM - 130MM WHITE
  • 5
    93010218S SHOCK SPRING 30N/MM - 130MM WHITE
    SHOCK SPRING 30N/MM - 130MM WHITE
  • 5
    93010219S SHOCK SPRING 40N/MM - 130MM WHITE
    SHOCK SPRING 40N/MM - 130MM WHITE
  • 6
    50181101S7 DCC 50SX CPL.
    DCC 50SX CPL.
  • 7
    36120418S ADJUSTING NUT CPL.
    ADJUSTING NUT CPL.
  • 8
    36120858S1 MONOSHOCK CASE WITH PIPE CPL.
    MONOSHOCK CASE WITH PIPE CPL.
  • 9
    50180095 BLEED PLUG R 1/8
    BLEED PLUG R 1/8
  • 10
    50180217 O-RING 27X1,5 VITON
    O-RING 27X1,5 VITON
  • 11
    46811208 RUBBER CAP "DO NOT OPEN"
    RUBBER CAP "DO NOT OPEN"
  • 12
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 13
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 97
    R12012 REP. KIT BEAR./SEAL UP.
    REP. KIT BEAR./SEAL UP.
  • 98
    RP10003 REP . KIT MONOSHOCK MINI 17
    REP . KIT MONOSHOCK MINI 17
  • 99
    50180751S1 SHOCK ABSORBER FLUID 5 LT
    SHOCK ABSORBER FLUID 5 LT
