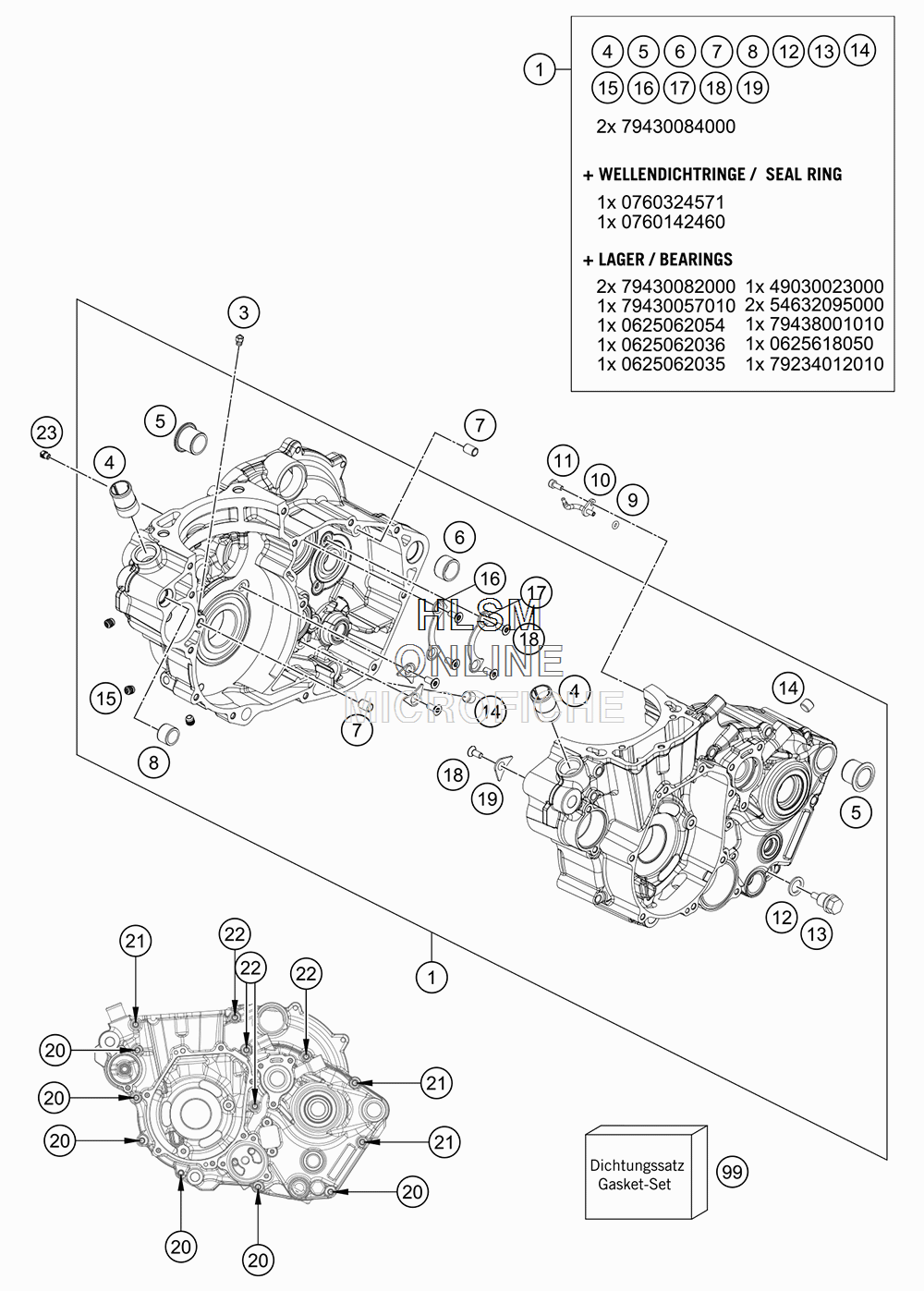

ENGINE CASE для Ktm 450 XC-F - 2017 года выпуска`

№

Артикул

Название
1

79430000044 ENGINE CASE CPL.

ENGINE CASE CPL.

170 ₽
3

60030063070 OIL JET 70 M5

OIL JET 70 M5

1 960 ₽
4

58030010200 SCREW IN NOZZLE M20X1,5

SCREW IN NOZZLE M20X1,5

2 390 ₽
5

75030010100 CASE BUSH

CASE BUSH

2 690 ₽
6

54830027000 DOWEL 21X12

DOWEL 21X12

1 290 ₽
7

59030023000 DOWEL 6X8X11,5

DOWEL 6X8X11,5

910 ₽
8

51030026100 DOWEL 17 X 13 X 12

DOWEL 17 X 13 X 12

1 550 ₽
9

0770035020 O-RING 3,5X2,00 NBR

O-RING 3,5X2,00 NBR

60 ₽
10

81230064000 OIL JET ANGLED 70

OIL JET ANGLED 70

3 270 ₽
11

0912040103 AH.SCREW DIN0912-M 4X10

AH.SCREW DIN0912-M 4X10

290 ₽
12

58038022000 CU-SEAL RING DIN7603-12X18X1,5

CU-SEAL RING DIN7603-12X18X1,5

440 ₽
13

58030021000 OILDRAIN PLUG W.MAG. M 12X1,5

OILDRAIN PLUG W.MAG. M 12X1,5

2 800 ₽
14

0906100100 PLUG DIN0906-M10X1

PLUG DIN0906-M10X1

850 ₽
15

59030296000 SCREW PLUG

SCREW PLUG

1 520 ₽
16

78033032000 TAB WASHER BEARING MAIN SHAFT

TAB WASHER BEARING MAIN SHAFT

1 260 ₽
17

78033132000 TAB WASHER BEARING COUNT.SHAFT

TAB WASHER BEARING COUNT.SHAFT

1 140 ₽
18

0019050121S INT. TORX FLAT HEAD M5X12 T25

INT. TORX FLAT HEAD M5X12 T25

290 ₽
19

75030085000 RETAINING PLATE F. CS BEARING

RETAINING PLATE F. CS BEARING

1 140 ₽
20

0025060606 HH COLLAR SCREW M6X60

HH COLLAR SCREW M6X60

560 ₽
21

0025060706 HH COLLAR SCREW M6X70

HH COLLAR SCREW M6X70

530 ₽
22

0025060806 HH COLLAR SCREW M6X80

HH COLLAR SCREW M6X80

410 ₽
23

60030063050 OIL JET 50

OIL JET 50

2 160 ₽
99

79430099000 GASKET SET

GASKET SET

69 150 ₽
