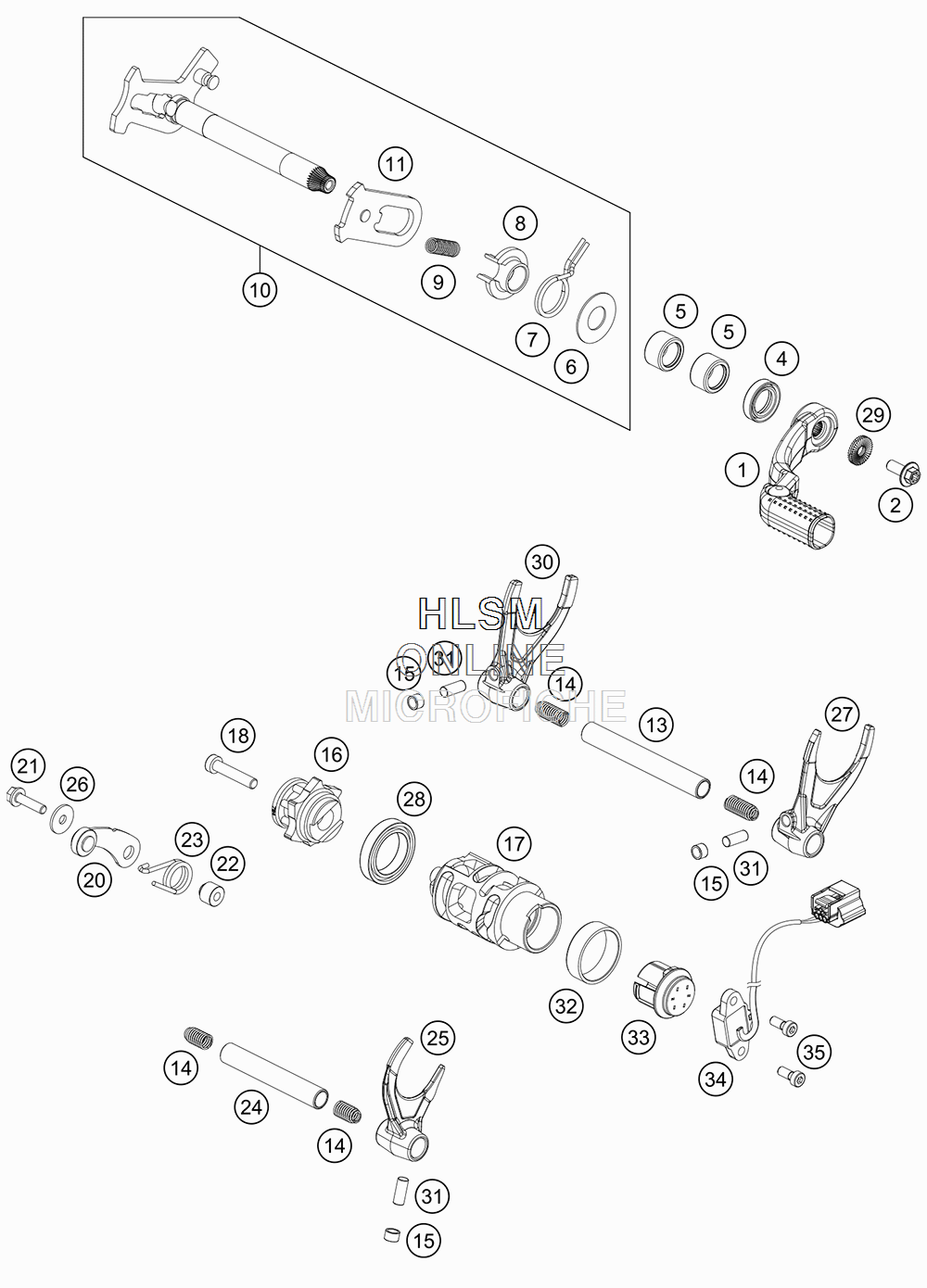

SHIFTING MECHANISM для Ktm 450 XC-F - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    79434031100 SHIFT LEVER CPL.
    SHIFT LEVER CPL.
  • 2
    0024060156S HH COLLAR SCREW M6X15 TORX30
    HH COLLAR SCREW M6X15 TORX30
  • 4
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 5
    54632095000 NEEDLE BEAR.HK 1412 14X20X12
    NEEDLE BEAR.HK 1412 14X20X12
  • 6
    54634050000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 7
    54634014100 RETURN SPRING 2,2MM
    RETURN SPRING 2,2MM
  • 8
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 9
    56534013100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 10
    79434005133 SHIFT SHAFT CPL.
    SHIFT SHAFT CPL.
  • 11
    54634108044 SLIDING PLATE
    SLIDING PLATE
  • 13
    79434020000 GEAR SHIFT RAIL 11,8X91,1MM
    GEAR SHIFT RAIL 11,8X91,1MM
  • 14
    58038023200 PRESSURE SPRING 0,9MM
    PRESSURE SPRING 0,9MM
  • 15
    50334018100 SHIFTING ROLLER 6X8X5,2
    SHIFTING ROLLER 6X8X5,2
  • 16
    79434015000 SELECTOR INTERLOCK MECHAN. CPL
    SELECTOR INTERLOCK MECHAN. CPL
  • 17
    79434112100 SHIFTING CONTROLLER 5 GEAR
    SHIFTING CONTROLLER 5 GEAR
  • 18
    0012060303 AH SCREW DIN6912 M6X30 8.8
    AH SCREW DIN6912 M6X30 8.8
  • 20
    78134024044 LOCKING LEVER CPL.
    LOCKING LEVER CPL.
  • 21
    0025050206 HH COLLAR SCREW M5X20
    HH COLLAR SCREW M5X20
  • 22
    54634052300 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 23
    60034023000 ARRESTING LEVER SPRING
    ARRESTING LEVER SPRING
  • 24
    79434019000 GEAR SHIFT RAIL 11,8X74,5MM
    GEAR SHIFT RAIL 11,8X74,5MM
  • 25
    79434001100 SHIFTING FORK 5TH-6TH GEAR
    SHIFTING FORK 5TH-6TH GEAR
  • 26
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 27
    79434002100 SHIFTING FORK 2ND-4TH GEAR
    SHIFTING FORK 2ND-4TH GEAR
  • 28
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 29
    50233041500 PAIR NORDLOCK WASHER M6
    PAIR NORDLOCK WASHER M6
  • 30
    79434003100 SHIFTING FORK 1ST-3RD GEAR
    SHIFTING FORK 1ST-3RD GEAR
  • 31
    0402061480 NEEDLE ROLLER DIN5402 6X14,8
    NEEDLE ROLLER DIN5402 6X14,8
  • 32
    79234012010 FRICTION BEARING CONTROLLER
    FRICTION BEARING CONTROLLER
  • 33
    79234012020 MAGNET HOLDER CPL.
    MAGNET HOLDER CPL.
  • 34
    79211023000 GEAR SENSOR
    GEAR SENSOR
  • 35
    0984050123S CYLIND. SCR. DIN6912 M5X12 8.8
    CYLIND. SCR. DIN6912 M5X12 8.8
