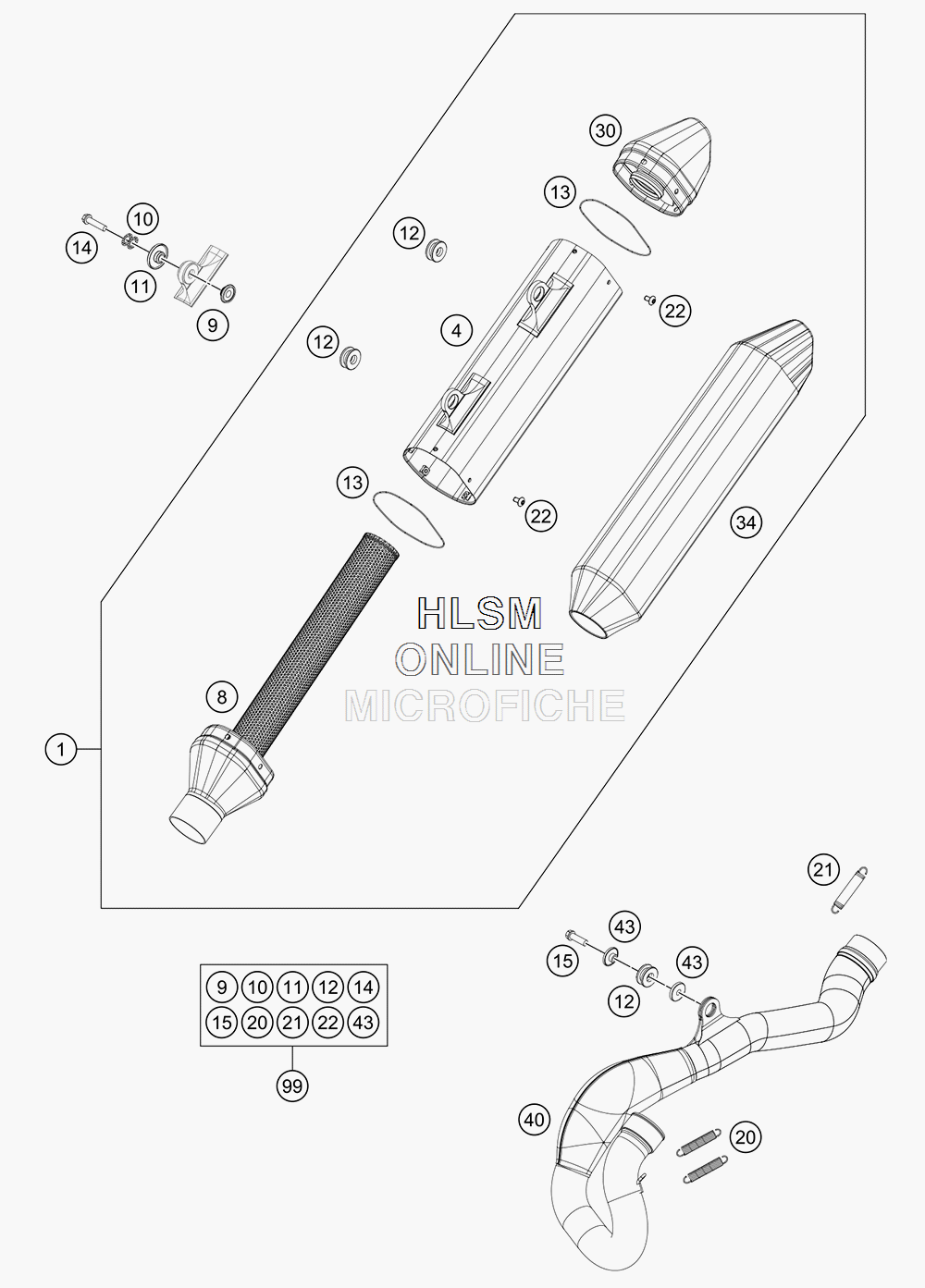

EXHAUST SYSTEM для Ktm 450 XC-F - 2017 года выпуска

  • №
    Артикул
    Название
  • 4
    79205079080 SILENCER ALU JACKET
    SILENCER ALU JACKET
  • 8
    79205079050 CONNECT ING CAP CPL.
    CONNECT ING CAP CPL.
  • 9
    77205069000 BUSHING 7.5X12X20X8.2
    BUSHING 7.5X12X20X8.2
  • 10
    50233041000 PAIR OF WASHERS M 6 NORDLOCK
    PAIR OF WASHERS M 6 NORDLOCK
  • 11
    77205169000 BUSHING 7.5X12X28X8.3
    BUSHING 7.5X12X28X8.3
  • 12
    77205068000 DAMP. COMPON. BLACK
    DAMP. COMPON. BLACK
  • 13
    0770740015 O-RING 74,00X1,50 FKM 75SH
    O-RING 74,00X1,50 FKM 75SH
  • 14
    0025060356 HH COLLAR SCREW M6X35
    HH COLLAR SCREW M6X35
  • 15
    0025080356 HH COLLAR SCREW M8X35
    HH COLLAR SCREW M8X35
  • 20
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 21
    50305116000 TEN.SPRING L=75MM EY.MOVEABLE
    TEN.SPRING L=75MM EY.MOVEABLE
  • 22
    78105081010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 30
    77105079060 ENDCAP CPL.
    ENDCAP CPL.
  • 34
    79205078590 ROCKWOOL PREFOMED
    ROCKWOOL PREFOMED
  • 40
    79405007100 EXHAUST PIPE SX
    EXHAUST PIPE SX
  • 43
    77805069000 BUSHING 8.5X12X28X8.3
    BUSHING 8.5X12X28X8.3
  • 99
    00050000819 EXHAUST PARTS KIT
    EXHAUST PARTS KIT
