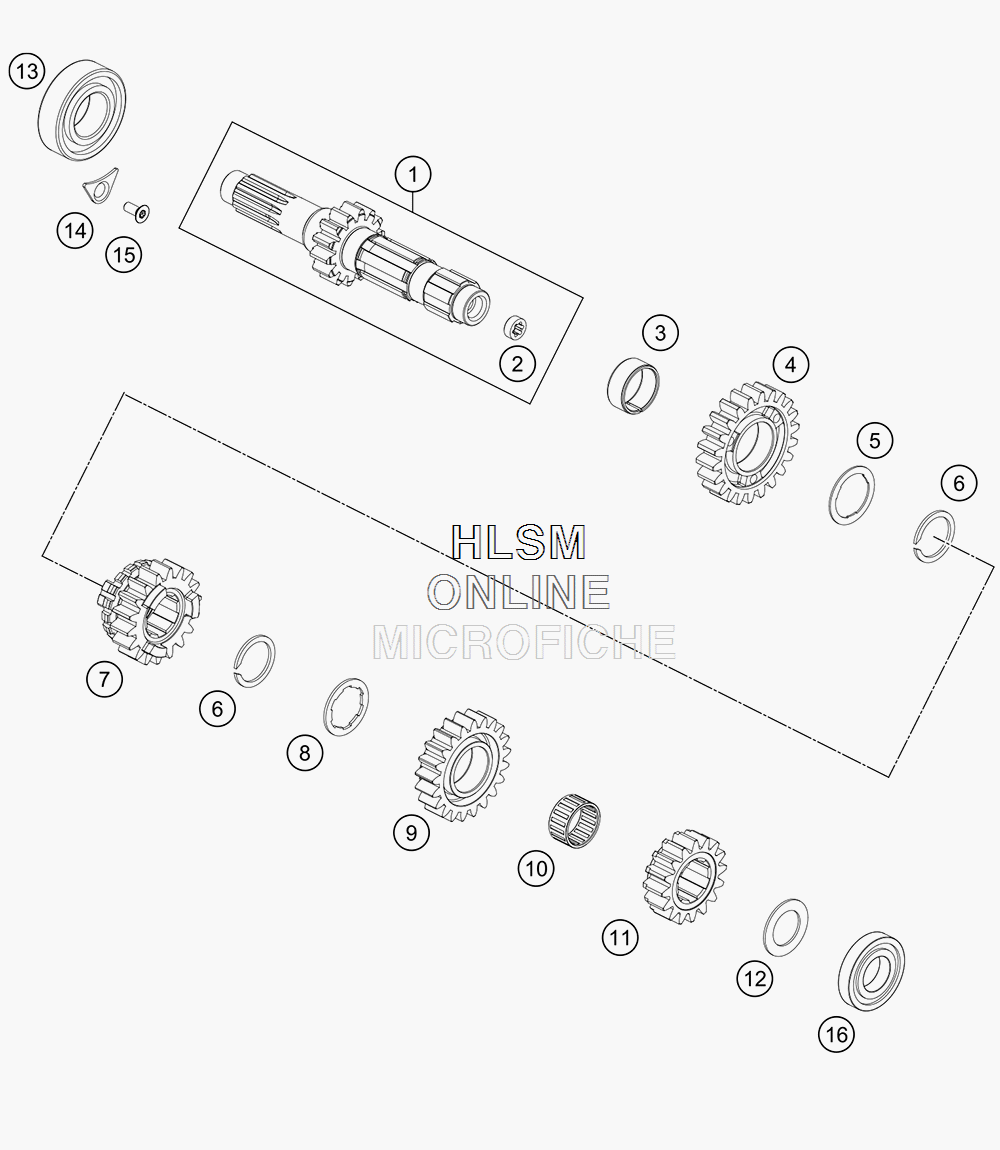

TRANSMISSION - MAIN SHAFT для Ktm 250 SX - 2017 года выпуска`
-
№АртикулНазвание
-
177233001100 MAIN SHAFT CPL.MAIN SHAFT CPL.
-
278033001110 BUSHINGBUSHING
-
30405242812 NEDDLE BEAR. K24X28X11,9 DIV.NEDDLE BEAR. K24X28X11,9 DIV.
-
454833005000 IDLER GEAR 5TH G. 22-T "5S22"IDLER GEAR 5TH G. 22-T "5S22"
-
550333043000 STOP DISC 25,2X32X1STOP DISC 25,2X32X1
-
677033022000 AXIAL-CIRCLIP 25X1,65AXIAL-CIRCLIP 25X1,65
-
779233003000 SLIDING GEAR 3RD G 18ZSLIDING GEAR 3RD G 18Z
-
859033030000 STOP DISC 25,2X32X1,5STOP DISC 25,2X32X1,5
-
954833004000 IDLER GEAR 4TH G. 21-T "4S21"IDLER GEAR 4TH G. 21-T "4S21"
-
100405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
1154833002100 SOLID GEAR 2ND G. 16-T "2S16"SOLID GEAR 2ND G. 16-T "2S16"
-
1277233015000 DISK 20,2X32X1,3DISK 20,2X32X1,3
-
130625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
1475030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
150019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
-
160625160040 GROOVED BALL BEAR. TM 16004 C3GROOVED BALL BEAR. TM 16004 C3
