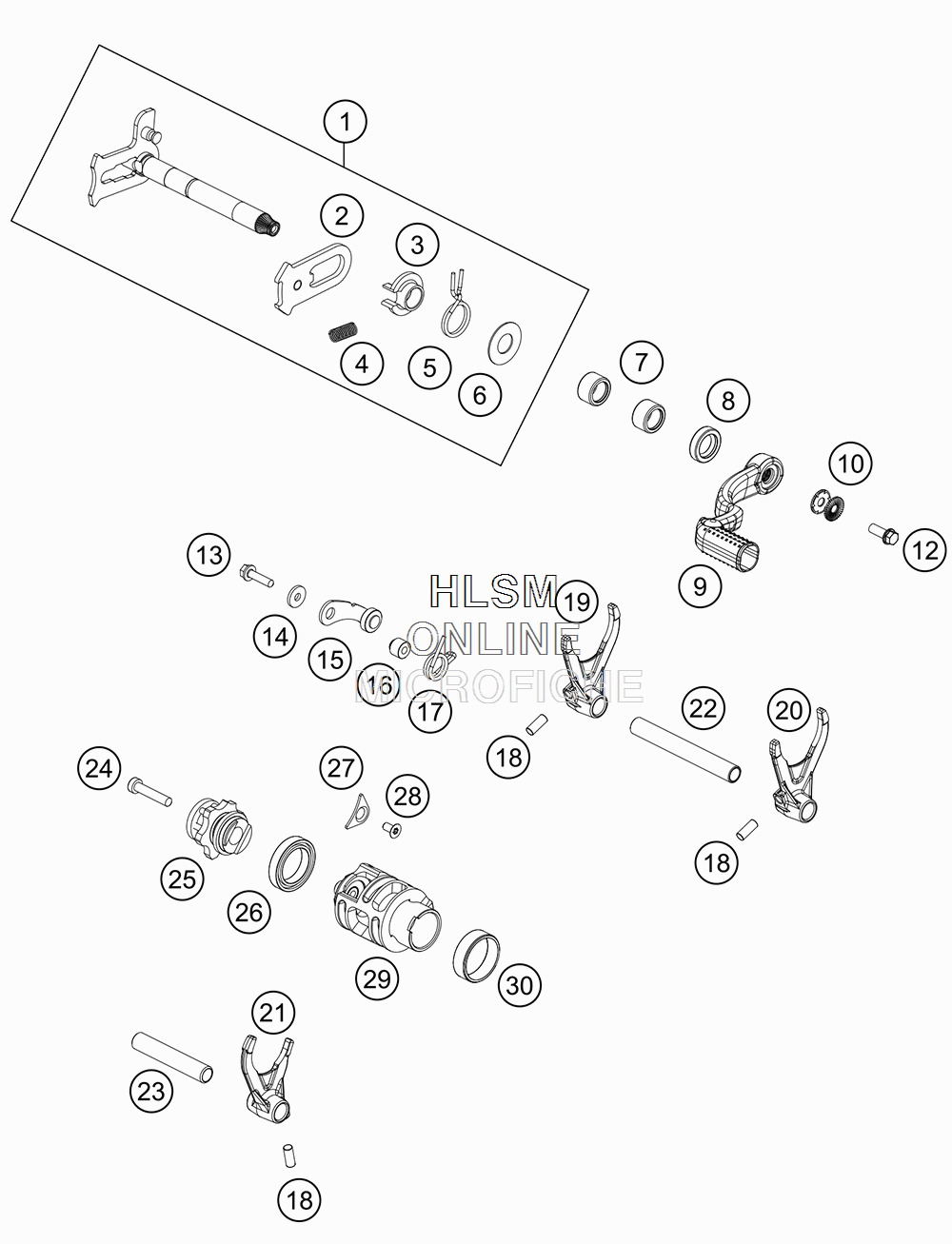

SHIFTING MECHANISM для Ktm 250 SX - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    55434005133 SHIFT SHAFT CPL.
    SHIFT SHAFT CPL.
  • 2
    79234008144 SLIDING PLA TE CPL.
    SLIDING PLA TE CPL.
  • 3
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 4
    56534013100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 5
    54834014000 RETURN SPRING
    RETURN SPRING
  • 6
    54634050000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 7
    54632095000 NEEDLE BEAR.HK 1412 14X20X12
    NEEDLE BEAR.HK 1412 14X20X12
  • 8
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 9
    55434031000 SHIFTING SHAFT CPL.
    SHIFTING SHAFT CPL.
  • 10
    50233041500 NORDLOCK WASHER M6
    NORDLOCK WASHER M6
  • 12
    0024060156S HH COLLAR SCREW M6X15 TORX30
    HH COLLAR SCREW M6X15 TORX30
  • 13
    0025050206 HH COLLAR SCREW M5X20
    HH COLLAR SCREW M5X20
  • 14
    0349000050 WASHER DIN7349-5X15X2
    WASHER DIN7349-5X15X2
  • 15
    55434024000 LOCKING LEVER CPL.
    LOCKING LEVER CPL.
  • 16
    54634052300 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 17
    55434023100 LOCKING LEVER SPRING
    LOCKING LEVER SPRING
  • 18
    0402061480 NEEDLE ROLLER DIN5402 6X14,8
    NEEDLE ROLLER DIN5402 6X14,8
  • 19
    79234003000 SHIFTING FORK 1ST/3RD GEAR
    SHIFTING FORK 1ST/3RD GEAR
  • 20
    79234002000 SHIFTING FORK 2ND GEAR
    SHIFTING FORK 2ND GEAR
  • 21
    79234001000 SHIFTING FORK 4TH/5TH GEAR
    SHIFTING FORK 4TH/5TH GEAR
  • 22
    77034019000 SHIFTING MAIN L=93MM
    SHIFTING MAIN L=93MM
  • 23
    54834019000 SHIFT. RAIL MAIN SHAFT
    SHIFT. RAIL MAIN SHAFT
  • 24
    0984060302 AH SCREW DIN6912 M 6X30
    AH SCREW DIN6912 M 6X30
  • 25
    55434015000 GEARSHIFT CPL.
    GEARSHIFT CPL.
  • 26
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 27
    75030085000 RETAINING PLATE F. CS BEARING
    RETAINING PLATE F. CS BEARING
  • 28
    0019050106S INT. TORX FLAT HEAD M5X10 10.9
    INT. TORX FLAT HEAD M5X10 10.9
  • 29
    79234012000 SHIFT ROLLER 5G
    SHIFT ROLLER 5G
  • 30
    79234012010 FRICTION BEARING CONTROLLER
    FRICTION BEARING CONTROLLER
