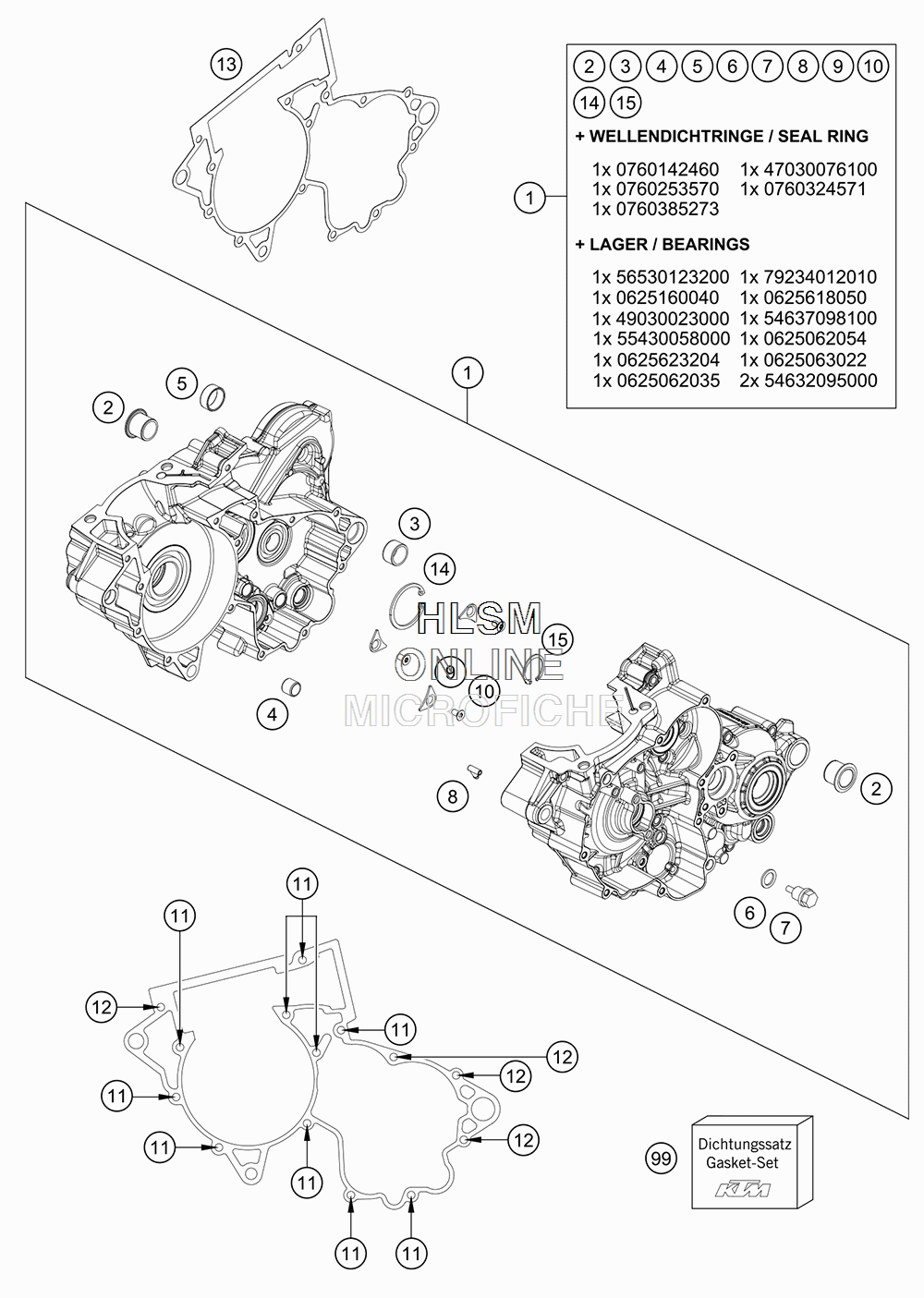

ENGINE CASE для Ktm 250 SX - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    55430000044 ENGINECASE CPL.
    ENGINECASE CPL.
  • 2
    75030010100 CASE BUSH
    CASE BUSH
  • 3
    54830027000 DOWEL 21X12
    DOWEL 21X12
  • 4
    54630027000 DOWEL BUSHING 13,8X11X12
    DOWEL BUSHING 13,8X11X12
  • 5
    79433053050 CAROBRON ZE BUSH
    CAROBRON ZE BUSH
  • 6
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 7
    58030021000 OILDRAIN PLUG W.MAG. M 12X1,5
    OILDRAIN PLUG W.MAG. M 12X1,5
  • 8
    45130022000 ANGLE PIECE 50CCM LC
    ANGLE PIECE 50CCM LC
  • 9
    75030085000 RETAINING PLATE F. CS BEARING
    RETAINING PLATE F. CS BEARING
  • 10
    0019050121S INT. TORX FLAT HEAD M5X12 T25
    INT. TORX FLAT HEAD M5X12 T25
  • 11
    0025060456 HH COLLAR SCREW M6X45
    HH COLLAR SCREW M6X45
  • 12
    0025060606 HH COLLAR SCREW M6X60
    HH COLLAR SCREW M6X60
  • 13
    55430039000 ENGINE CASE GASKET
    ENGINE CASE GASKET
  • 14
    0472042175 CIRCLIP DIN0472-42X1 ,75
    CIRCLIP DIN0472-42X1 ,75
  • 15
    55430059000 FUSE RING JV 27
    FUSE RING JV 27
  • 99
    55430199000 GASKET SET 250 EXC/SX
    GASKET SET 250 EXC/SX
