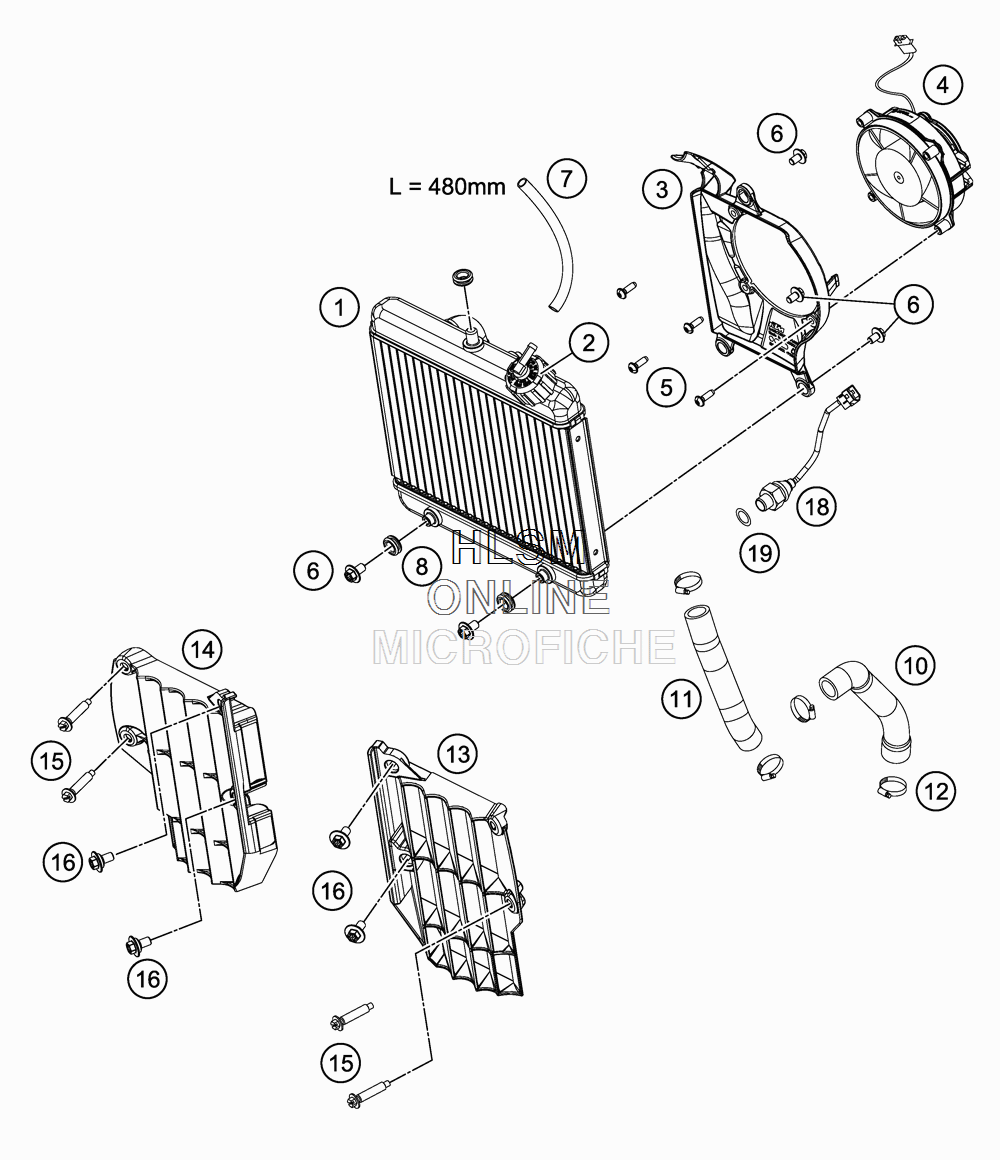

RADIATOR для Ktm FREERIDE 260R - 2016 года выпуска
-
№АртикулНазвание
-
172035010200 RADIATOR "15691UE"RADIATOR "15691UE"
-
272035016000 RADIATOR CAP 1,8 BARRADIATOR CAP 1,8 BAR
-
372035044000 FAN COWLFAN COWL
-
458435041000 FAN CPL. 12V LC4FAN CPL. 12V LC4
-
50081050161 EJOT PT SCREW K50X16 1451EJOT PT SCREW K50X16 1451
-
60024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
750335030001 PVC-HOSE 6X9PVC-HOSE 6X9
-
858414019000 RUBBER GROMMET 11 X 19 X 9 '96RUBBER GROMMET 11 X 19 X 9 '96
-
1072535025000 PREFORMED HOSE ENG.-COOLER R/SPREFORMED HOSE ENG.-COOLER R/S
-
1172535026000 PREFORMED HOSE CYL. - COOLERPREFORMED HOSE CYL. - COOLER
-
1210001020000 HOSE CLAMP GEMI 18-29HOSE CLAMP GEMI 18-29
-
137203503400030 RADIATOR PROTECTOR L/S (BLACK)RADIATOR PROTECTOR L/S (BLACK)
-
147203503500030 RADIATOR PROTECTOR R/S (BLACK)RADIATOR PROTECTOR R/S (BLACK)
-
150017060305 SPECIAL SCREW K60X30 WS=6SPECIAL SCREW K60X30 WS=6
-
1683008000012 SPECIAL SCREW M6X12X3SPECIAL SCREW M6X12X3
-
1872035045000 THERMOSWITCH95°CTHERMOSWITCH95°C
-
1907701300151 O-RING13,00X1,575FKMO-RING13,00X1,575FKM
