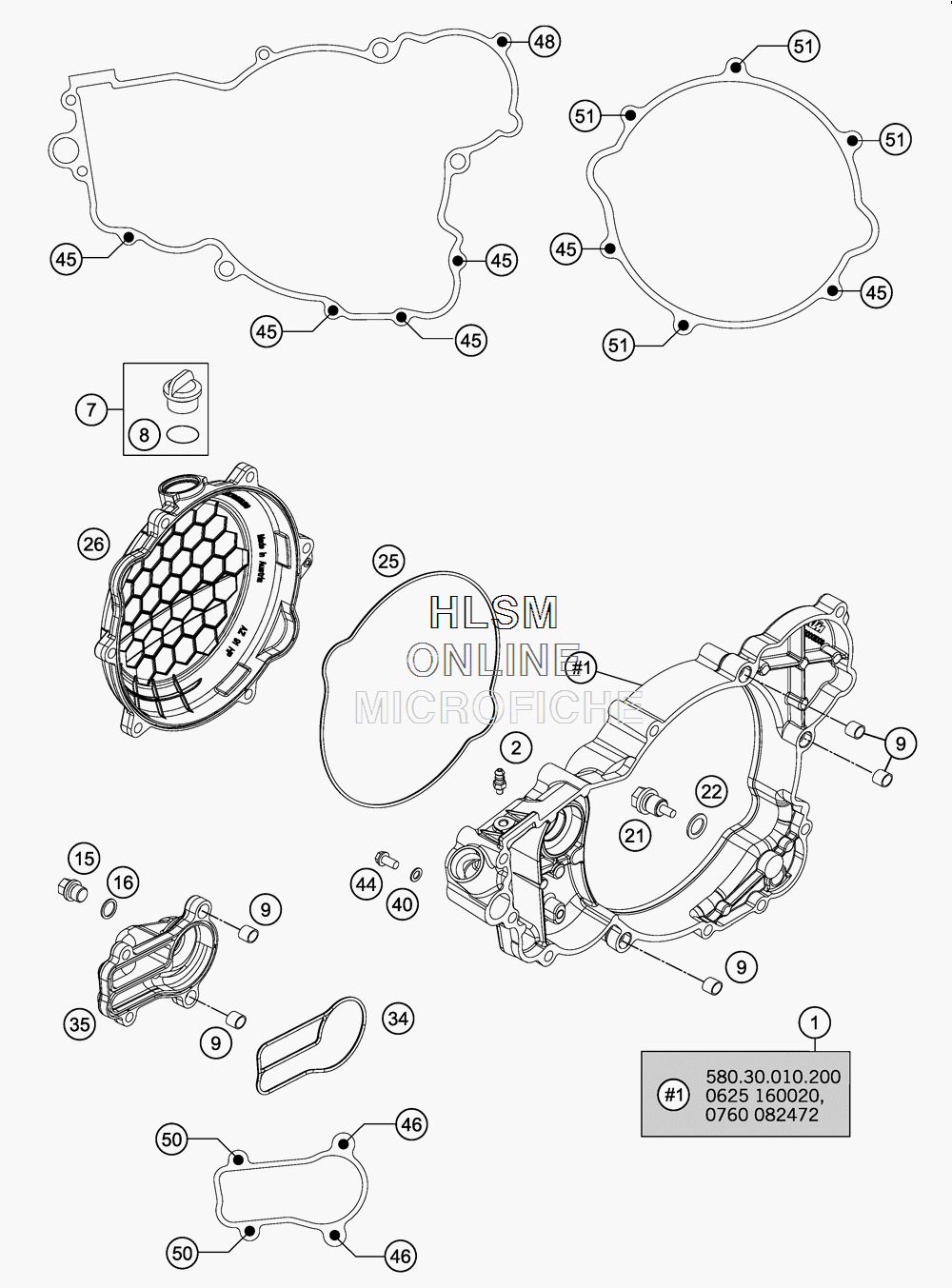

CLUTCH COVER для Ktm FREERIDE 260R - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    72530001044 INNER CLUTCH COVER CPL.
    INNER CLUTCH COVER CPL.
  • 2
    58336020290 VACUUM CONNECTION M6X1 ALU AH
    VACUUM CONNECTION M6X1 ALU AH
  • 7
    58030120000 OIL FILLER CAP M24X3 WITH O-R
    OIL FILLER CAP M24X3 WITH O-R
  • 8
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
  • 9
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 15
    0910100003 PLUG DIN0910-M 10X1
    PLUG DIN0910-M 10X1
  • 16
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 21
    58030021000 OIL DRAIN PLUG W.MAG. M 12X1,5
    OIL DRAIN PLUG W.MAG. M 12X1,5
  • 22
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 25
    55130027000 CLUTCH COVER GASKET
    CLUTCH COVER GASKET
  • 26
    5513002610015 CLUTCH OUTSIDE COVER
    CLUTCH OUTSIDE COVER
  • 34
    54835003000 GASKET WAPU-COVER 250
    GASKET WAPU-COVER 250
  • 35
    54835001100 WATERPUMP COVER 250/300
    WATERPUMP COVER 250/300
  • 40
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 44
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
  • 45
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 46
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 48
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 50
    0025060556 HH COLLAR SCREW M6X55 TX30
    HH COLLAR SCREW M6X55 TX30
  • 51
    0025060606 HH COLLAR SCREW M6X60 TX30
    HH COLLAR SCREW M6X60 TX30
