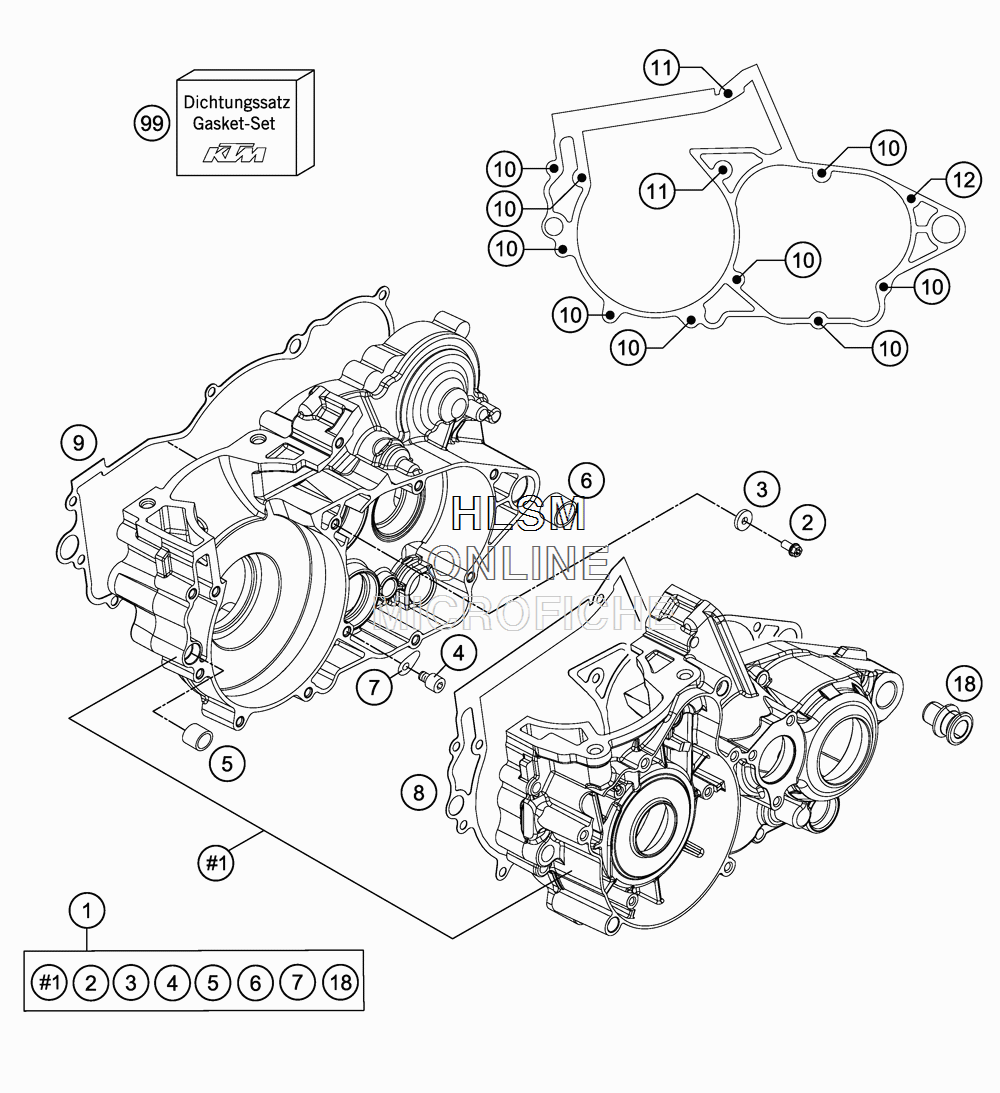

ENGINE CASE для Ktm FREERIDE 260R - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    72530000033 ENGINE CASE
    ENGINE CASE
  • 2
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
  • 3
    50232050001 STEEL WASHER 6,4X17X3
    STEEL WASHER 6,4X17X3
  • 4
    0912060123 AH SCREW DIN0912-M 6X12
    AH SCREW DIN0912-M 6X12
  • 5
    54630027000 DOWEL BUSHING 13,8X11X12
    DOWEL BUSHING 13,8X11X12
  • 6
    54830027000 DOWEL 21X12
    DOWEL 21X12
  • 7
    54634049000 RETAINING PLATE
    RETAINING PLATE
  • 8
    54830039000 ENGINE CASE GASKET
    ENGINE CASE GASKET
  • 9
    54830024100 CLUTCH COVER GASKET INSIDE
    CLUTCH COVER GASKET INSIDE
  • 10
    0025060406 HH COLLAR SCREW M6X40 TX30
    HH COLLAR SCREW M6X40 TX30
  • 11
    0025060556 HH COLLAR SCREW M6X55 TX30
    HH COLLAR SCREW M6X55 TX30
  • 12
    0025060606 HH COLLAR SCREW M6X60 TX30
    HH COLLAR SCREW M6X60 TX30
  • 18
    72530010000 CASE BUSH L/S
    CASE BUSH L/S
  • 99
    55130099001 GASKET SET 250/300
    GASKET SET 250/300
