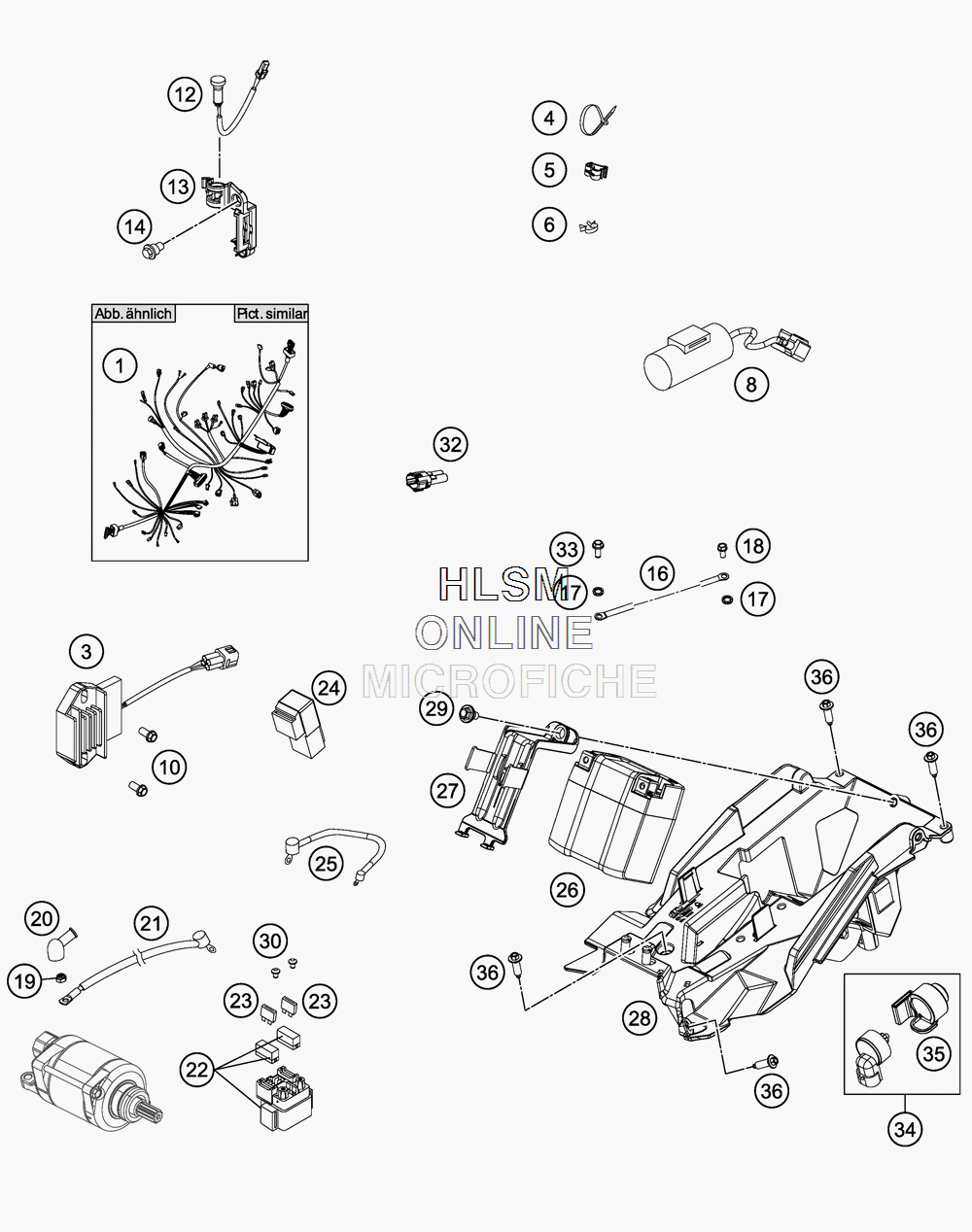

WIRING HARNESS для Ktm 350 SXF - 2016 года выпуска`
-
№АртикулНазвание
-
179211075000 WIRING HARNESSWIRING HARNESS
-
377211034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
444011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
444011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
444011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
583013026000 CABLE GUIDECABLE GUIDE
-
658111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
879011035000 CONDENSERCONDENSER
-
100025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1281214083000 INDICATOR LIGHT LED YELLOW FIINDICATOR LIGHT LED YELLOW FI
-
1377214098000 HOLDER INDICATOR LIGHT SXHOLDER INDICATOR LIGHT SX
-
1459001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
1658411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
1758411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
180009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
190985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
2077240099000 PROTECTION CAP F. STARTER ENG.PROTECTION CAP F. STARTER ENG.
-
2158411059100 STARTERCABLE 700 MMSTARTERCABLE 700 MM
-
2258211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
2358011109110 FUSE 10 AFUSE 10 A
-
2461111057000 RELAY CM1A-R-12V-H80RELAY CM1A-R-12V-H80
-
2558711086000 WIRING HARNESS BATTERYWIRING HARNESS BATTERY
-
2679011053000 BATTERY 12V / 2,2AHBATTERY 12V / 2,2AH
-
2779011056000 BATTERY BOX SUPPORTBATTERY BOX SUPPORT
-
2879011055000 BATTERY BOXBATTERY BOX
-
2983008000012 SPECIAL SCREW M6X12X3SPECIAL SCREW M6X12X3
-
300902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
3269011040000 END PLUG CAN-BUSEND PLUG CAN-BUS
-
330025050126 HH COLLAR SCREW M5X12HH COLLAR SCREW M5X12
-
3476511010000 MAP-SELECT-SWITCHMAP-SELECT-SWITCH
-
3576511010050 RUBBER HOLDER F. MAP-SEL-SWIT.RUBBER HOLDER F. MAP-SEL-SWIT.
-
360017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
