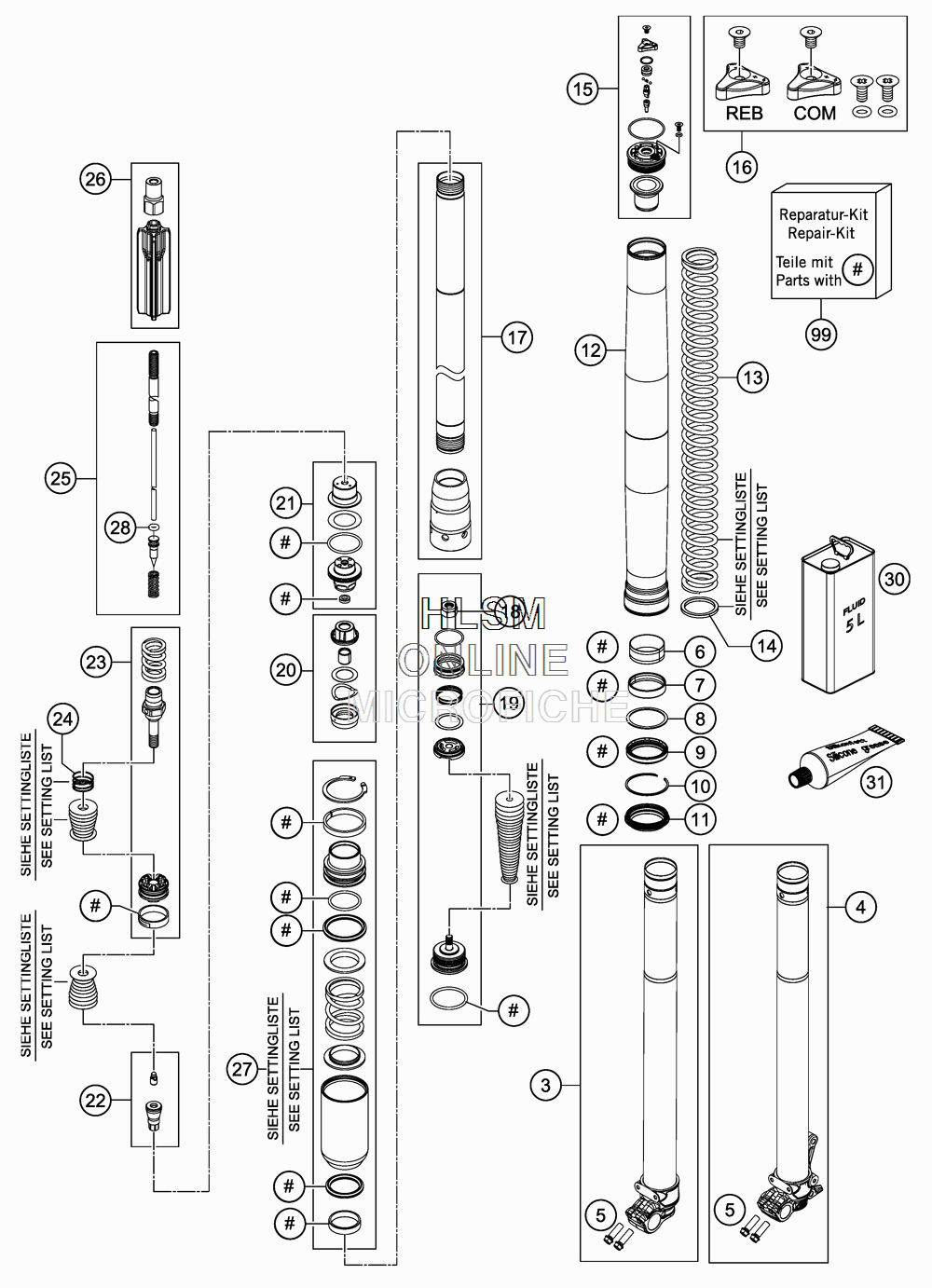

FRONT FORK DISASSEMBLED для Ktm 350 SXF - 2016 года выпуска

№

Артикул

Название
3

48601327S1 AXLE CLAMP R/S WITH INNER TUBE

AXLE CLAMP R/S WITH INNER TUBE

115 460 ₽
4

48601326S1 AXLE CLAMP L/S WITH INNER TUBE

AXLE CLAMP L/S WITH INNER TUBE

124 340 ₽
5

0025080256 HH COLLAR SCREW M8X25

HH COLLAR SCREW M8X25

300 ₽
6

48601008 GUIDING BUSH 47X49X20 R11

GUIDING BUSH 47X49X20 R11

3 240 ₽
7

48601009 GUIDING BUSH 48X52X12 R11

GUIDING BUSH 48X52X12 R11

3 240 ₽
8

48600013 SUPPORT RING 50 X 57,6 X 1,5

SUPPORT RING 50 X 57,6 X 1,5

610 ₽
9

48601179 OIL SEALRING D48X57,9X11,4 RED

OIL SEALRING D48X57,9X11,4 RED

5 140 ₽
10

48600070 LOCK WASHER SB58

LOCK WASHER SB58

350 ₽
11

48601562 DUST SEAL D48X58,4X5,7 RED

DUST SEAL D48X58,4X5,7 RED

5 140 ₽
12

48600736 OUTER TUBE L577 D54/60MM 2L

OUTER TUBE L577 D54/60MM 2L

121 280 ₽
13

91410100S SPRING 4,0N/MM SET D=4,9MM

SPRING 4,0N/MM SET D=4,9MM

39 430 ₽
13

91410101S SPRING 4,2N/MM SET D=4,9MM

SPRING 4,2N/MM SET D=4,9MM

39 430 ₽
13

91410102S SPRING 4,4N/MM SET D=4,9MM

SPRING 4,4N/MM SET D=4,9MM

39 430 ₽
13

91410103S SPRING 4,6N/MM SET D=4,9MM

SPRING 4,6N/MM SET D=4,9MM

39 430 ₽
13

91410104S SPRING 4,8N/MM SET D=4,9MM

SPRING 4,8N/MM SET D=4,9MM

39 430 ₽
13

91410105S SPRING 5,0N/MM SET D=4,9MM

SPRING 5,0N/MM SET D=4,9MM

39 430 ₽
14

48600456 SPACER 43X35X2,5

SPACER 43X35X2,5

440 ₽
14

48600458 SPACER 43X35X1,5

SPACER 43X35X1,5

440 ₽
15

48601116E SCREW CAP M51X1,5 CPL.

SCREW CAP M51X1,5 CPL.

19 500 ₽
15

48601050E SCREW CAP M51X1,5 REB. KPL.

SCREW CAP M51X1,5 REB. KPL.

19 500 ₽
16

R14033 SCREW CAP SMALL PART KIT

SCREW CAP SMALL PART KIT

6 190 ₽
17

48601031S CARTRIDGE KIT

CARTRIDGE KIT

27 850 ₽
18

40540486 NUT M6X0,5 REBOUND

NUT M6X0,5 REBOUND

920 ₽
19

48601279S BASE VALVE KIT

BASE VALVE KIT

15 890 ₽
20

48601025S1 CHECK VALVE D21 CPL.

CHECK VALVE D21 CPL.

6 680 ₽
21

R14035 SCREW SLEEVE KIT

SCREW SLEEVE KIT

10 920 ₽
22

48601527S NEEDLE KIT

NEEDLE KIT

4 340 ₽
23

R14056 TAP KIT

TAP KIT

11 450 ₽
24

48600382 SHUTTLE VALVE SPRING C=0,4

SHUTTLE VALVE SPRING C=0,4

370 ₽
25

48601343S PISTON ROD CPL.

PISTON ROD CPL.

24 760 ₽
26

48601035S1 SPRING GUIDE CPL.

SPRING GUIDE CPL.

3 720 ₽
27

48601315S5 PRESSURE TANK FOR 24187P CPL

PRESSURE TANK FOR 24187P CPL

38 720 ₽
28

46811265 O-RING VITON 2,2X1,6

O-RING VITON 2,2X1,6

30 ₽
30

48601166S1 FORK OIL SAE4 5L

FORK OIL SAE4 5L

47 770 ₽
31

T511 SILICONE GREASE F. DUST STRI

SILICONE GREASE F. DUST STRI

5 410 ₽
99

R24001 REPAIR - KIT

REPAIR - KIT

43 090 ₽
