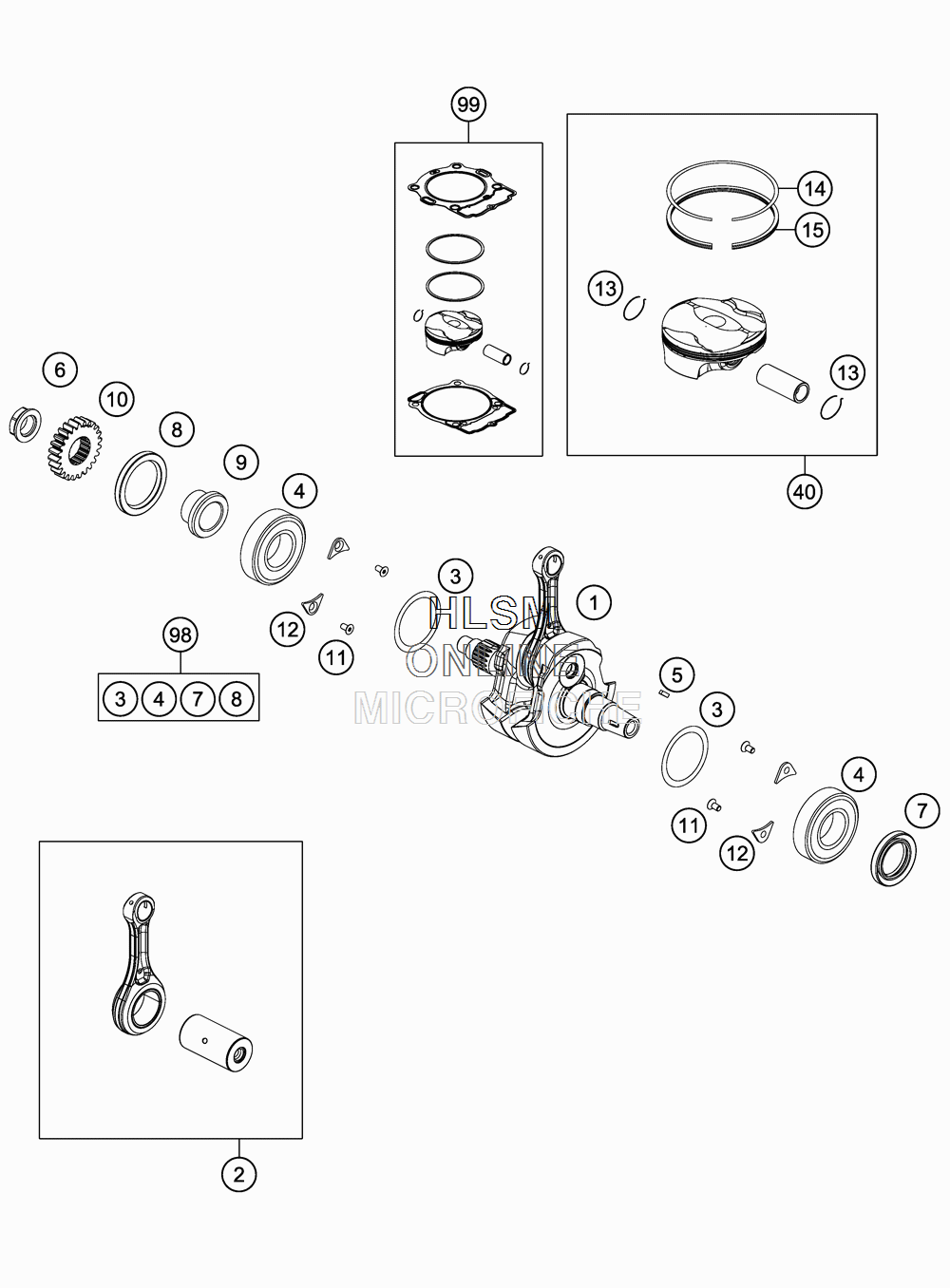

CRANKSHAFT PISTON для Ktm 350 SXF - 2016 года выпуска`

№

Артикул

Название
1

79230018000 CRANKSHAFT CPL

CRANKSHAFT CPL

170 ₽
2

79230015044 CONNECT ING ROD REPAIR KIT

CONNECT ING ROD REPAIR KIT

142 890 ₽
3

0988324510 THRUST WASHER 988ST 32X0,1

THRUST WASHER 988ST 32X0,1

90 ₽
3

0988324515 THRUST WASHER 988ST 32X0,15

THRUST WASHER 988ST 32X0,15

90 ₽
3

0988324530 THRUST WASHER 988ST 32X0,30

THRUST WASHER 988ST 32X0,30

90 ₽
4

77330082200 BEARING NJ 206 ECP/HN3C4HVA624

BEARING NJ 206 ECP/HN3C4HVA624

25 350 ₽
5

0888030037 WOODRUFF KEY DIN6888-3X3,7

WOODRUFF KEY DIN6888-3X3,7

290 ₽
6

77230029000 NUT PRIMARY WHEEL

NUT PRIMARY WHEEL

9 960 ₽
7

0760304760 SHAFT SEAL RING A30X47X6 VITON

SHAFT SEAL RING A30X47X6 VITON

4 060 ₽
8

0760405561 SHAFT SEAL RING A 40X55X6 V.

SHAFT SEAL RING A 40X55X6 V.

4 210 ₽
9

77232022000 SPACER BUSHING PRIMARY GEAR

SPACER BUSHING PRIMARY GEAR

5 960 ₽
10

79232023024 PRIMARY GEAR 24T.

PRIMARY GEAR 24T.

23 720 ₽
11

0019050121S INT. TORX FLAT HEAD M5X12 T25

INT. TORX FLAT HEAD M5X12 T25

290 ₽
12

75030085000 RETAINING PLATE F. CS BEARING

RETAINING PLATE F. CS BEARING

1 140 ₽
13

79230274000 CIRCLIP PISTON PIN

CIRCLIP PISTON PIN

5 840 ₽
14

77230030000 COMPRESSIONRING 350

COMPRESSIONRING 350

11 540 ₽
15

79230232000 OIL SCRAPER RING

OIL SCRAPER RING

23 390 ₽
40

79230207100I PISTON I CPL.

PISTON I CPL.

146 050 ₽
40

79230207100II PISTON II CPL.

PISTON II CPL.

146 050 ₽
98

00050002316 CRANKSHAFT REP. KIT

CRANKSHAFT REP. KIT

26 910 ₽
99

00050000231 PISTON KIT 350 SX-F GR. I

PISTON KIT 350 SX-F GR. I

137 180 ₽
99

00050000232 PISTON KIT 350 SX-F GR. II

PISTON KIT 350 SX-F GR. II

137 180 ₽
