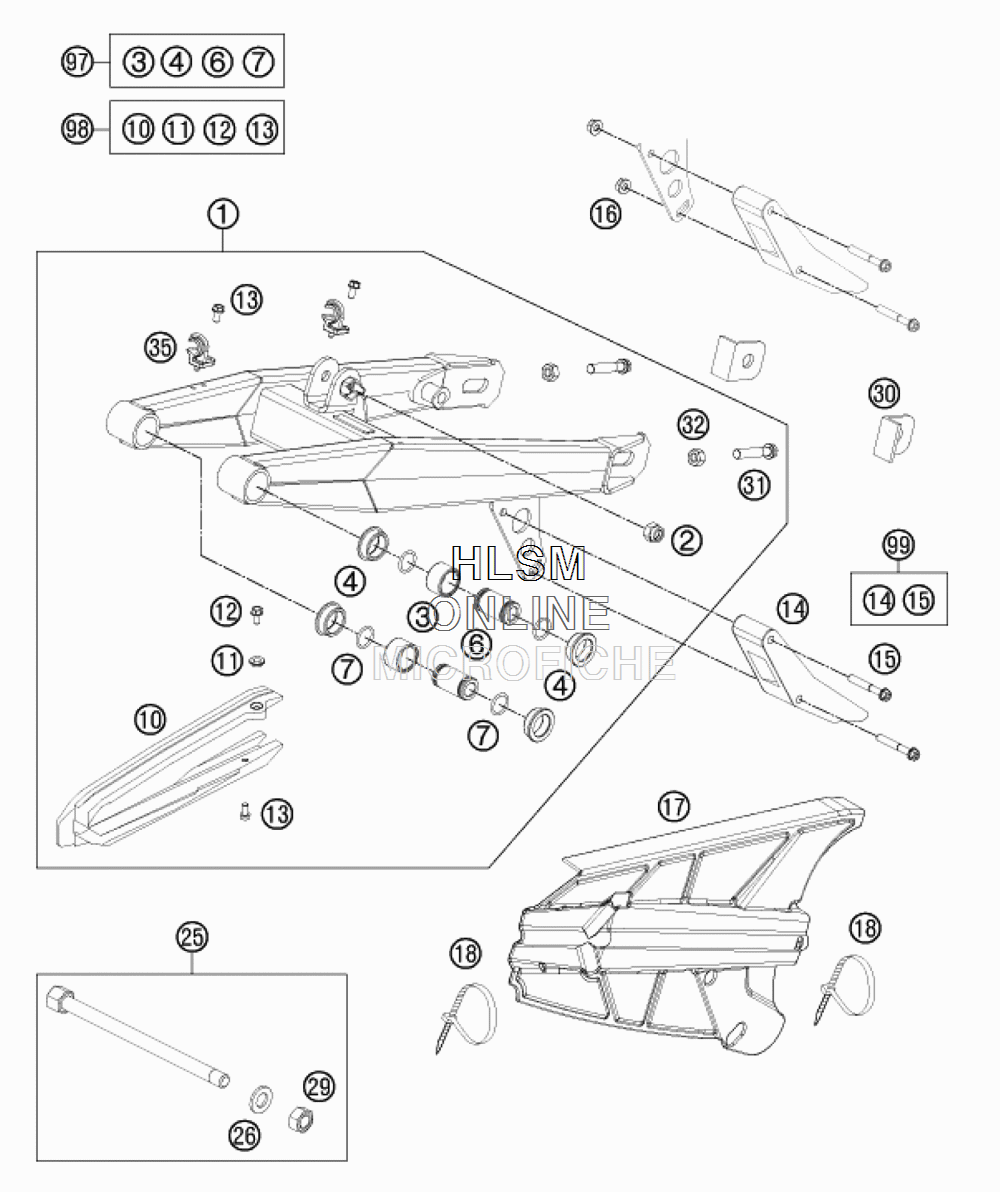

SWINGARM для Ktm 65 SXS - 2015 года выпуска`

№

Артикул

Название
1

46204030144 SWINGARM CPL.

SWINGARM CPL.

134 600 ₽
2

54310086100 SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

410 ₽
3

54603097000 NEEDLE BUSH HK

NEEDLE BUSH HK

4 060 ₽
4

46004030070 SPACER BUSHING 20X26X30X 9,7

SPACER BUSHING 20X26X30X 9,7

530 ₽
6

46004030071 BUSHING BOX 12X20X36,5

BUSHING BOX 12X20X36,5

4 810 ₽
7

0770160021 O-RING 16,00X2,00 VITON

O-RING 16,00X2,00 VITON

500 ₽
10

46104066000 CHAIN SLID. GUARD FRO.

CHAIN SLID. GUARD FRO.

4 490 ₽
11

46104066050 BUSH FOR CHAIN SLIDER GUARD

BUSH FOR CHAIN SLIDER GUARD

2 220 ₽
12

0010050103 SPECIAL SCREW M 5,0X10

SPECIAL SCREW M 5,0X10

290 ₽
13

0009050106 EJOT SPIRAL SCREW SF M5X10-K

EJOT SPIRAL SCREW SF M5X10-K

290 ₽
14

46007066000 CHAIN GUIDE REAR 60/65

CHAIN GUIDE REAR 60/65

3 250 ₽
15

0025060406 HH COLLAR SCREW M6X40 TX30

HH COLLAR SCREW M6X40 TX30

500 ₽
16

56509064100 SELF LOCKING NUT M6 10.9

SELF LOCKING NUT M6 10.9

320 ₽
17

46104061000 CHAIN GUARD

CHAIN GUARD

3 250 ₽
18

44011076305 CABLE TIE 300/4,8MM (BLACK)

CABLE TIE 300/4,8MM (BLACK)

290 ₽
25

46204037033 SWINGARM BOLT CPL. 201MM

SWINGARM BOLT CPL. 201MM

10 720 ₽
26

0125120003 FLAT WASHER DIN0125-A13

FLAT WASHER DIN0125-A13

180 ₽
29

0934120103 HEXAGON NUT DIN0934-M12X1

HEXAGON NUT DIN0934-M12X1

410 ₽
30

46010083000 CHAIN ADJUSTER 60/65

CHAIN ADJUSTER 60/65

3 240 ₽
31

50203030090 HH SCREW M8X40 WS=10

HH SCREW M8X40 WS=10

760 ₽
32

0934080003 HEXAGON NUT DIN0934-M 8

HEXAGON NUT DIN0934-M 8

320 ₽
35

54611076100 RET AIN.CLAMP FOR BRAKE HOSE

RET AIN.CLAMP FOR BRAKE HOSE

350 ₽
97

45204230010 SWINGARM REP . KIT

SWINGARM REP . KIT

15 790 ₽
98

46104066010 CHAIN GUARD KIT

CHAIN GUARD KIT

6 440 ₽
99

46007066010 CHAIN GUIDE KIT REAR

CHAIN GUIDE KIT REAR

3 630 ₽
