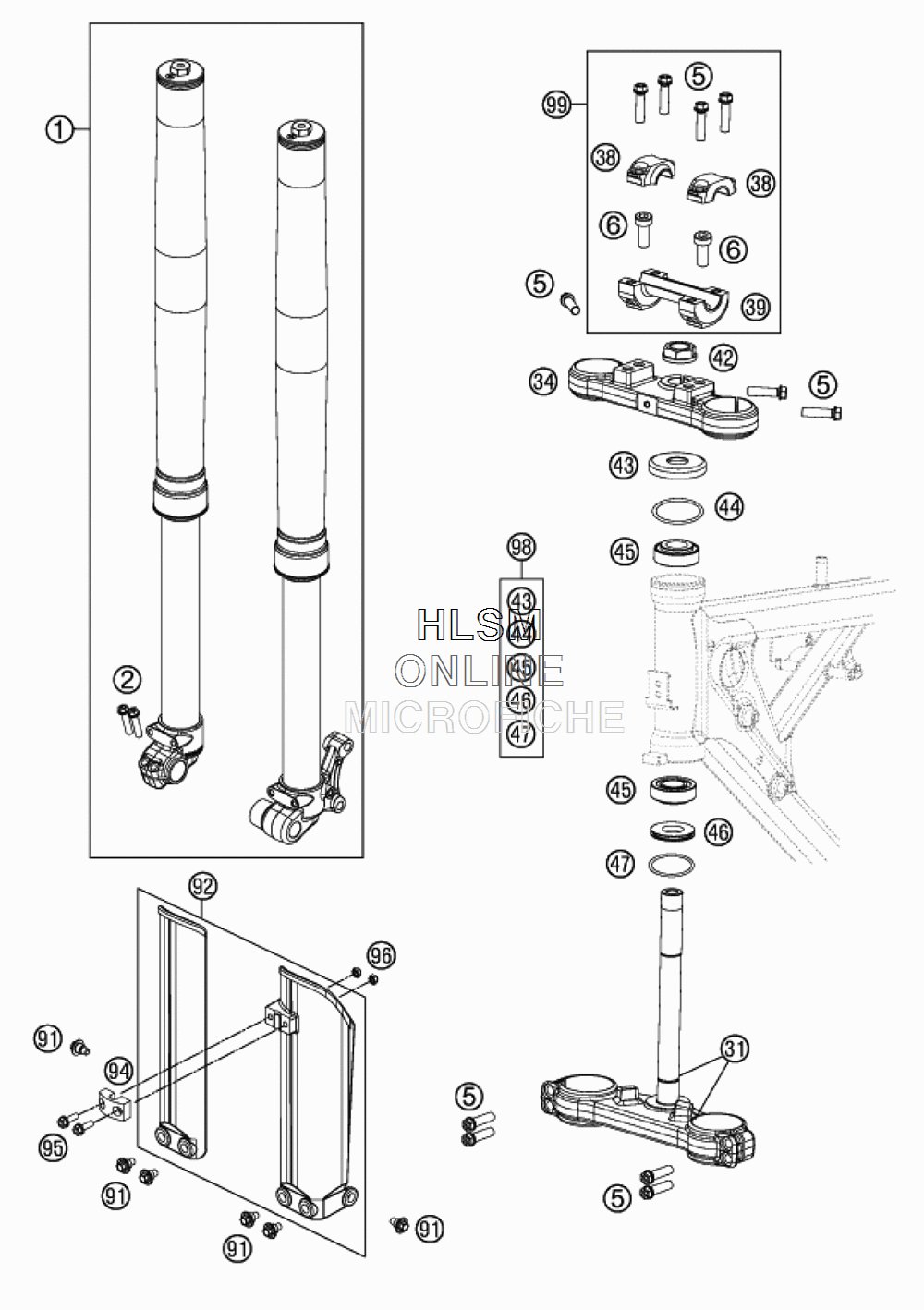

FRONT FORK TRIPLE CLAMP для Ktm 65 SXS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    07187L0401 FORK WP
    FORK WP
  • 2
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 5
    0025080306 HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 6
    0032100256S AH-COLLAR SCREW M10X25 ISA45
    AH-COLLAR SCREW M10X25 ISA45
  • 31
    46201032022 BOT .FORK PLATE CPL.
    BOT .FORK PLATE CPL.
  • 34
    45201034022 TOP TRIPLE CLAMP
    TOP TRIPLE CLAMP
  • 38
    50301038000 HANDLEBAR CLAMP D=22MM
    HANDLEBAR CLAMP D=22MM
  • 39
    45201039000 HANDLEBAR SUPPORT 50SX D=22MM
    HANDLEBAR SUPPORT 50SX D=22MM
  • 42
    59030029000 HH NUT M20X1,5 WS=27 RIGHT
    HH NUT M20X1,5 WS=27 RIGHT
  • 43
    49001086000 COVERING CAP
    COVERING CAP
  • 44
    0770049025 O-RING 49,00X2,50 NBR
    O-RING 49,00X2,50 NBR
  • 45
    49001081000 TAPERED ROLLER BEARING 32004X
    TAPERED ROLLER BEARING 32004X
  • 46
    46001086000 PROTECTION RING 20,1X39X5
    PROTECTION RING 20,1X39X5
  • 47
    0770360030 O-RING 36,00X3,00 NBR
    O-RING 36,00X3,00 NBR
  • 91
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
  • 92
    4610109400028 FORK PROTECTOR SET 65 SX (WHITE)
    FORK PROTECTOR SET 65 SX (WHITE)
  • 94
    5460108500028 BRAKE HOSE CLIP
    BRAKE HOSE CLIP
  • 95
    0025050166 HH COLLAR SCREW M5X16 TX30
    HH COLLAR SCREW M5X16 TX30
  • 96
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 98
    00050000931 STEERING HEAD REP . KIT MINI
    STEERING HEAD REP . KIT MINI
  • 99
    00050000925 HANDLEBAR SUPPORT KIT 50SX
    HANDLEBAR SUPPORT KIT 50SX
