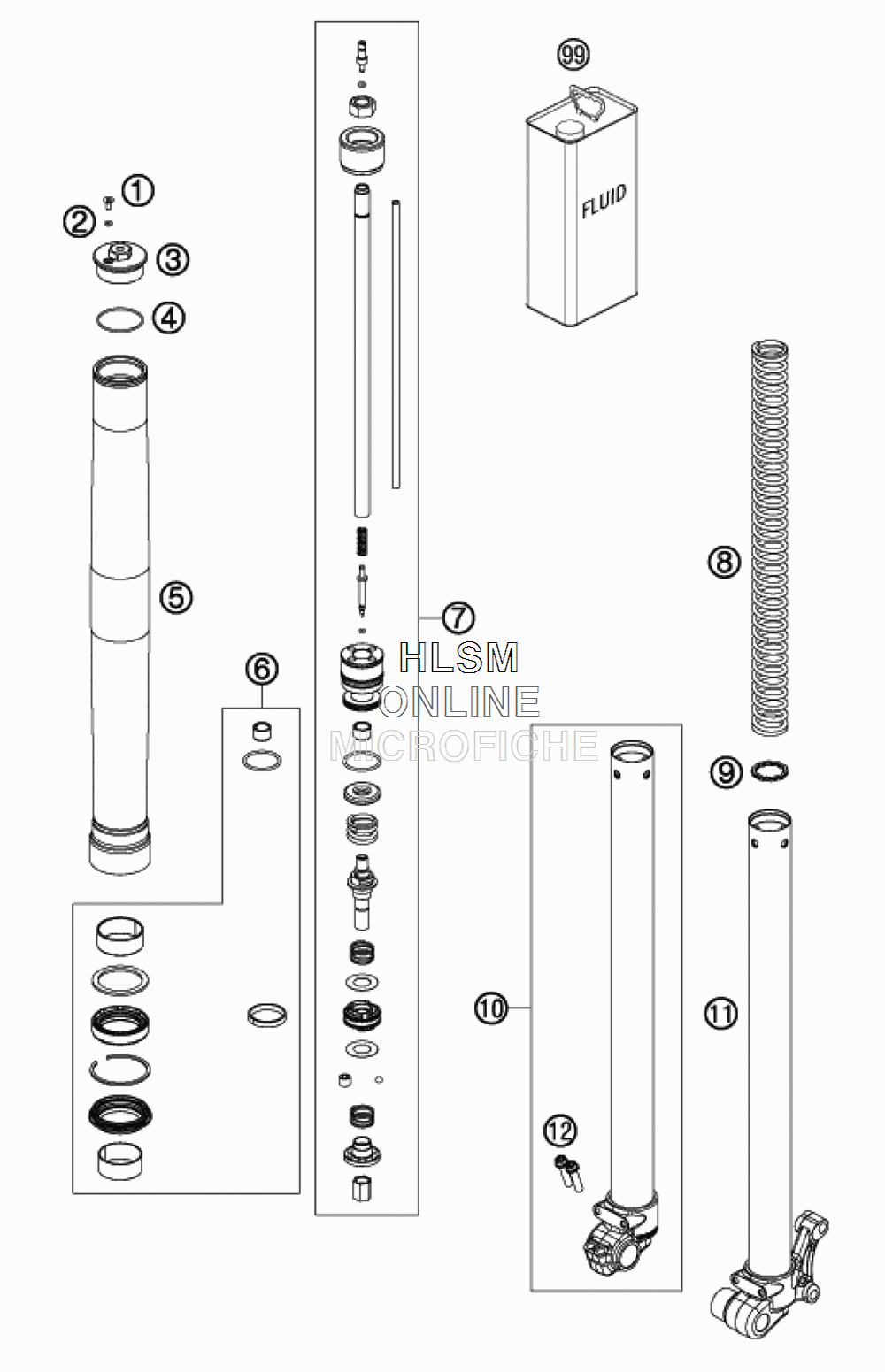

FRONT FORK DISASSEMBLED для Ktm 65 SXS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    48600481 VENT SCREW M4X8
    VENT SCREW M4X8
  • 2
    48600046 O-RING NBR 3X1,5
    O-RING NBR 3X1,5
  • 3
    35480496S SCREW CAP M38X1,5 ADJ. REB
    SCREW CAP M38X1,5 ADJ. REB
  • 3
    35480496S1 SCREW CAP M38X1,5 ADJ. COM
    SCREW CAP M38X1,5 ADJ. COM
  • 4
    46180581 O-RING 35X1.5 NBR70
    O-RING 35X1.5 NBR70
  • 5
    35480472 OUTER TUBE L=465
    OUTER TUBE L=465
  • 6
    R703 REPAIR KIT 50SX 2012
    REPAIR KIT 50SX 2012
  • 7
    35480477S PISTON ROD L/S CPL.
    PISTON ROD L/S CPL.
  • 7
    35480477S3 PISTON ROD R/S CPL.
    PISTON ROD R/S CPL.
  • 8
    95010056S SPRING 2,6 N/MM SET
    SPRING 2,6 N/MM SET
  • 8
    95010044S SPRING 2,8N/MM D3,6 SET
    SPRING 2,8N/MM D3,6 SET
  • 8
    95010057S SPRING 3,0 N/MM SET
    SPRING 3,0 N/MM SET
  • 9
    35480497 WASHER 22X30X2.5
    WASHER 22X30X2.5
  • 10
    35480455S2 AXLE CLAMP KTM 65SX R/S. CPL.
    AXLE CLAMP KTM 65SX R/S. CPL.
  • 11
    35480466S2 AXLE CLAMP KTM 65SX L/S CPL.
    AXLE CLAMP KTM 65SX L/S CPL.
  • 12
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 99
    48600765 FORK OIL SAE5
    FORK OIL SAE5
