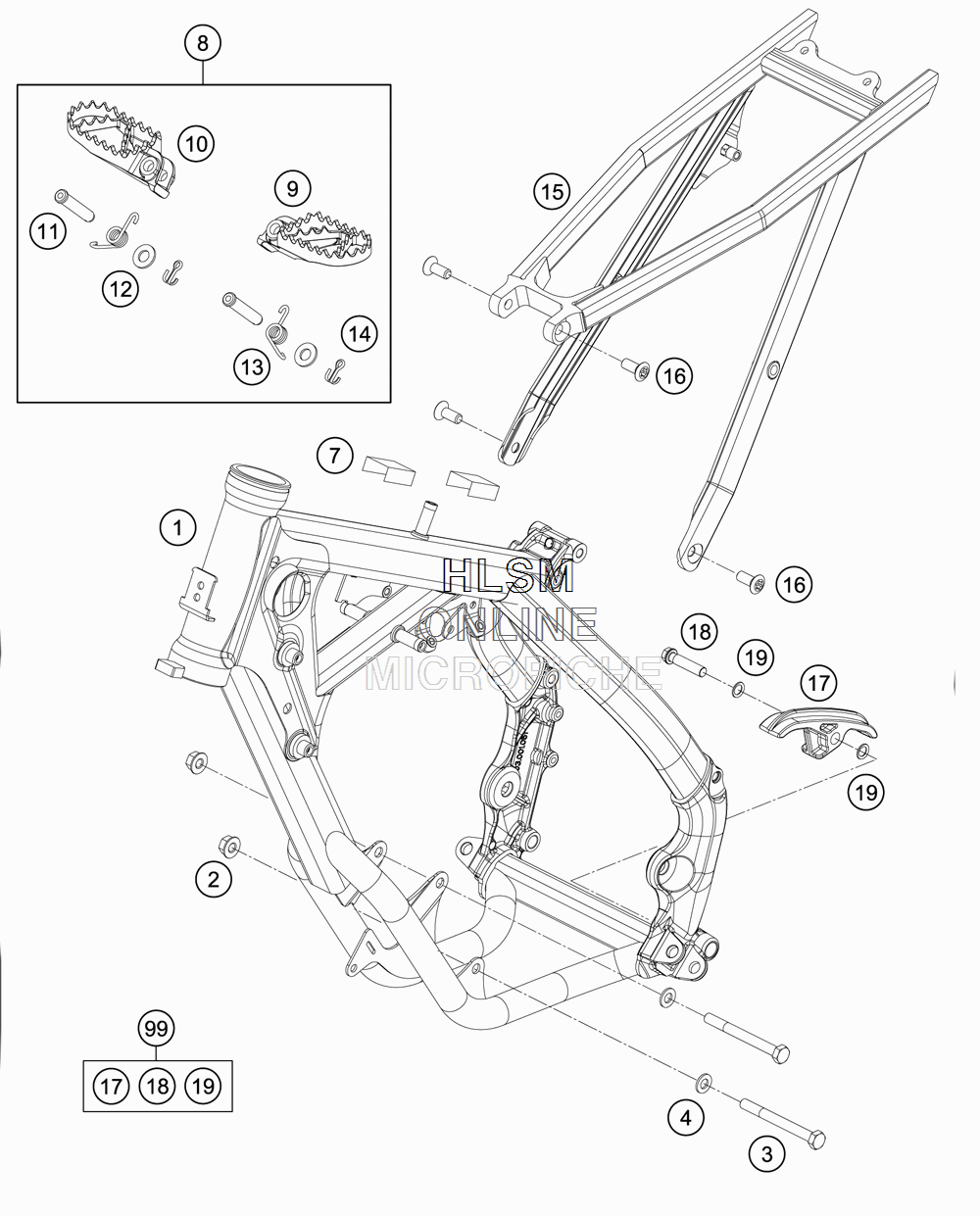

FRAME для Ktm 65 SX - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    46203001300B E FRAME "462O3" ANTHRAZIT
    E FRAME "462O3" ANTHRAZIT
  • 2
    06923080003 HEXAGON NUT DIN EN1661 M8 SW13
    HEXAGON NUT DIN EN1661 M8 SW13
  • 3
    0931080805S HH SCREW DIN931 M8X80 SS
    HH SCREW DIN931 M8X80 SS
  • 4
    0125080003 W ASHER DIN0125-A 8,4
    W ASHER DIN0125-A 8,4
  • 7
    50307012000 ADH. FOIL TRANSP . 80X80 MM
    ADH. FOIL TRANSP . 80X80 MM
  • 8
    47103040033 FOOTREST CPL.
    FOOTREST CPL.
  • 9
    47103040000 FOOTREST L/S
    FOOTREST L/S
  • 10
    47103041000 FOOTREST R/S
    FOOTREST R/S
  • 11
    54803044000 PIN FOR FOOT PED 51.5X9.8 MM
    PIN FOR FOOT PED 51.5X9.8 MM
  • 12
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 13
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 14
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 15
    46203002000 SUB FRAME
    SUB FRAME
  • 16
    0019080206S FLAT HEAD SCREW M. ISA45 M8X20
    FLAT HEAD SCREW M. ISA45 M8X20
  • 17
    77303053000 CHAIN SLIDING PIECE BELOW
    CHAIN SLIDING PIECE BELOW
  • 18
    0025080356 HH COLLAR SCREW M8X35 TX40
    HH COLLAR SCREW M8X35 TX40
  • 19
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 99
    77303053110 CHAIN SLIDING KIT BELOW
    CHAIN SLIDING KIT BELOW
