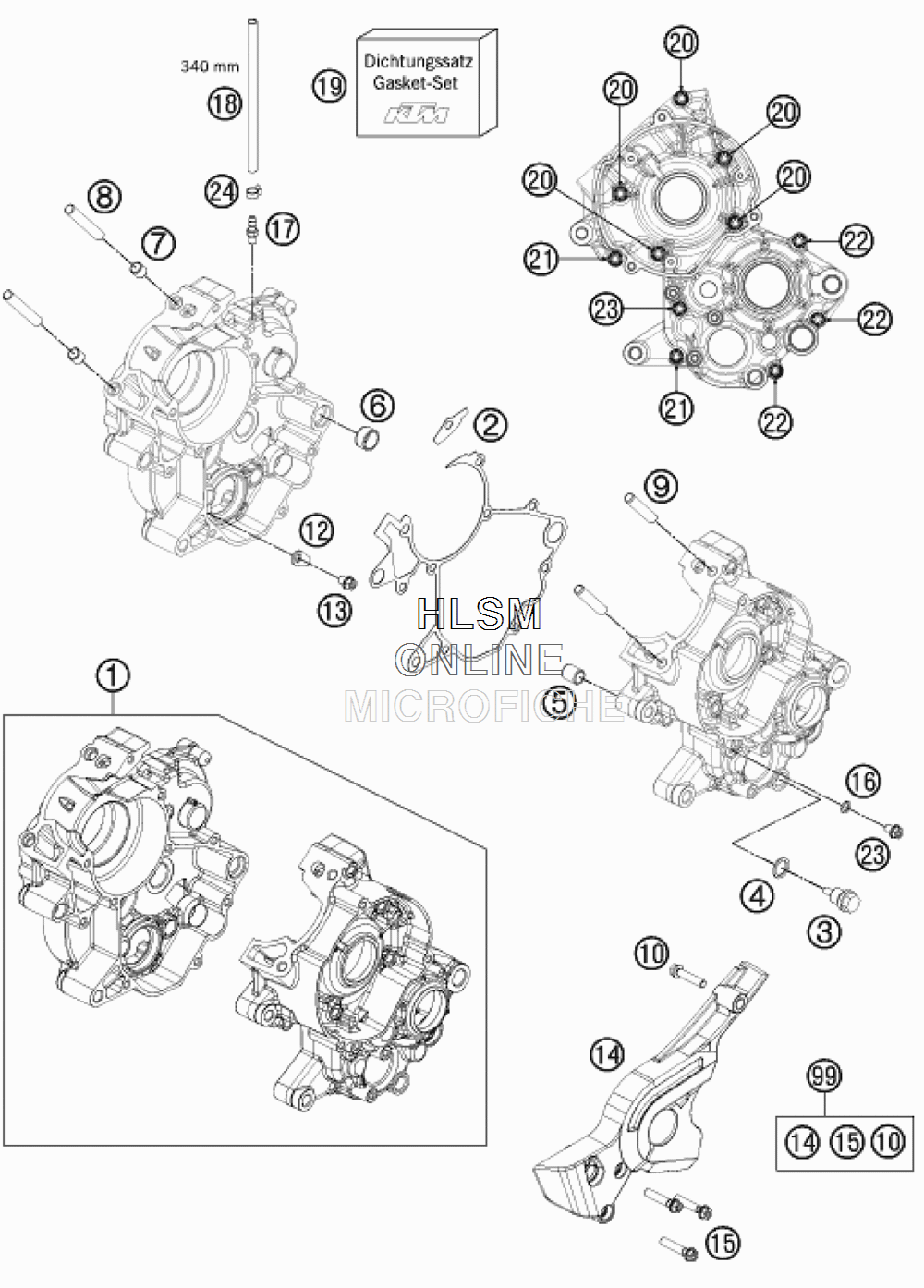

ENGINE CASE для Ktm 65 SX - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    46230000244 ENGINE CASE CPL. + BEARING
    ENGINE CASE CPL. + BEARING
  • 2
    46230039000 ENGINE CASE GASKET
    ENGINE CASE GASKET
  • 3
    58030021000 OIL DRAIN PLUG W .MAG. M 12X1,5
    OIL DRAIN PLUG W .MAG. M 12X1,5
  • 4
    58038022000 CU-SEAL RING DIN7603-12X18 X1,5
    CU-SEAL RING DIN7603-12X18 X1,5
  • 5
    46230024000 DOWEL 12X9X14,5
    DOWEL 12X9X14,5
  • 6
    46230123000 DOWEL 17/12.1/9.5
    DOWEL 17/12.1/9.5
  • 7
    46230023000 DOWEL 10X8,2X10
    DOWEL 10X8,2X10
  • 8
    0835080355 STUD DIN0835-M 8X35 10.9
    STUD DIN0835-M 8X35 10.9
  • 9
    46030043000 STUD M8X41
    STUD M8X41
  • 10
    0025080356 HH COLLAR SCREW M8X35 TX40
    HH COLLAR SCREW M8X35 TX40
  • 12
    54634049000 RETAINING PLATE
    RETAINING PLATE
  • 13
    0025060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 14
    46230060000 CHAIN SPROCKET GUARD
    CHAIN SPROCKET GUARD
  • 15
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 16
    0603061001 CU-SEAL RING DIN7603-6X10X 1
    CU-SEAL RING DIN7603-6X10X 1
  • 17
    58336020190 VACUUM CONECTION M6/3MM
    VACUUM CONECTION M6/3MM
  • 18
    31007007101 PVC-HOSE 4X6MM
    PVC-HOSE 4X6MM
  • 19
    46230099000 GASKET SET
    GASKET SET
  • 20
    0025060556 HH COLLAR SCREW M6X55 TX30
    HH COLLAR SCREW M6X55 TX30
  • 21
    0025060406 HH COLLAR SCREW M6X40 TX30
    HH COLLAR SCREW M6X40 TX30
  • 22
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 23
    0025060086 HH COLLAR SCREW M6X8 TX30
    HH COLLAR SCREW M6X8 TX30
  • 24
    45230089000 YDNAC-C LAMP 10068 (6,8MM)
    YDNAC-C LAMP 10068 (6,8MM)
  • 99
    46204060010 SPROCKET COVER KIT
    SPROCKET COVER KIT
