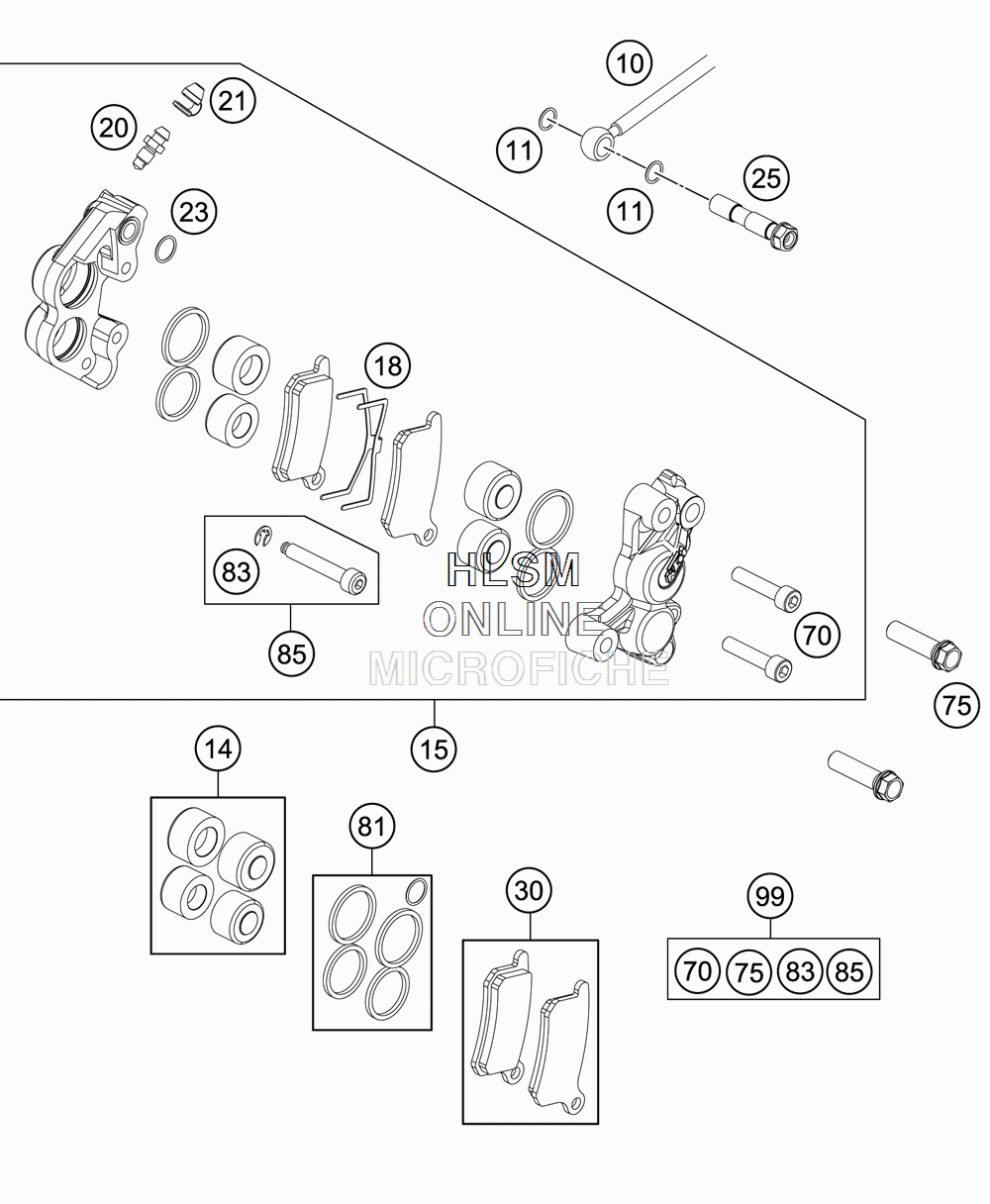

BRAKE CALIPER FRONT для Ktm 65 SX - 2015 года выпуска

  • №
    Артикул
    Название
  • 10
    46213010000 BRAKE HOSE FRONT
    BRAKE HOSE FRONT
  • 11
    0770080019 O-RING 8,00X1,00 FORMULA
    O-RING 8,00X1,00 FORMULA
  • 14
    46213019000 REPAIR KIT BRAKE PISTON
    REPAIR KIT BRAKE PISTON
  • 15
    46213015100 BRAKE CALIPER
    BRAKE CALIPER
  • 18
    46213018000 RETAINING SPRING
    RETAINING SPRING
  • 20
    47013085000 BLEEDER SCREW M8X1
    BLEEDER SCREW M8X1
  • 21
    47013021000 CAP FOR BLEEDER SCREW
    CAP FOR BLEEDER SCREW
  • 23
    0770100019 O-RING 10X1 EPDM
    O-RING 10X1 EPDM
  • 25
    47013025000 HOLLOW SCREW BRAKE CYLINDER
    HOLLOW SCREW BRAKE CYLINDER
  • 30
    46213030000 BRAKE PAD SET FRONT
    BRAKE PAD SET FRONT
  • 70
    0912060283 AH SCREW DIN0912-M 6X28
    AH SCREW DIN0912-M 6X28
  • 75
    0025080306 HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 81
    46213021000 REPAIR KIT SEAL RING 2012
    REPAIR KIT SEAL RING 2012
  • 83
    0799040009 TAB WASHER DIN6799-RA 4,0
    TAB WASHER DIN6799-RA 4,0
  • 85
    46113125000 AH SCREW W/ CIRCLIP
    AH SCREW W/ CIRCLIP
  • 99
    46213017000 CALIPER SCREW CPL.
    CALIPER SCREW CPL.
